Product Description

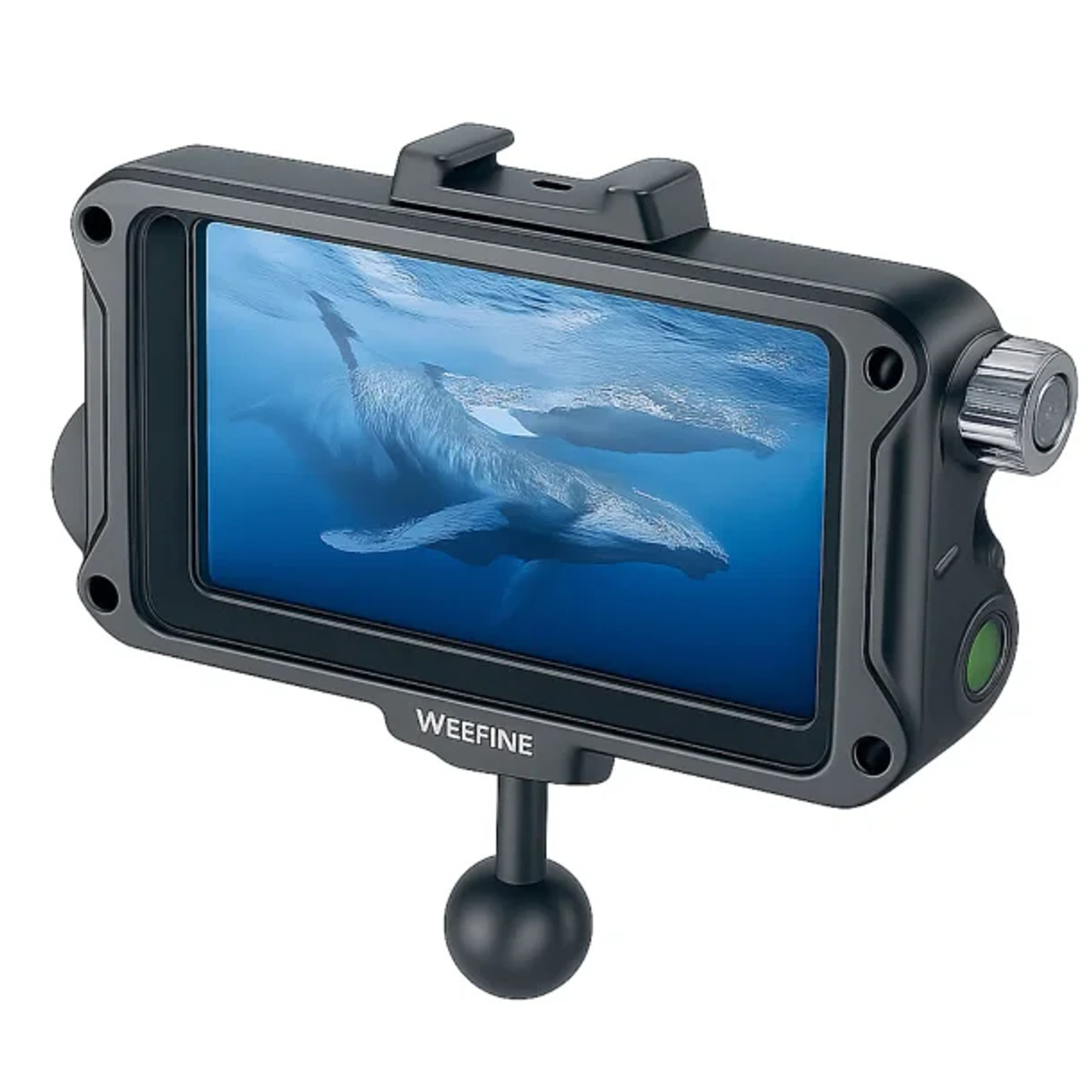

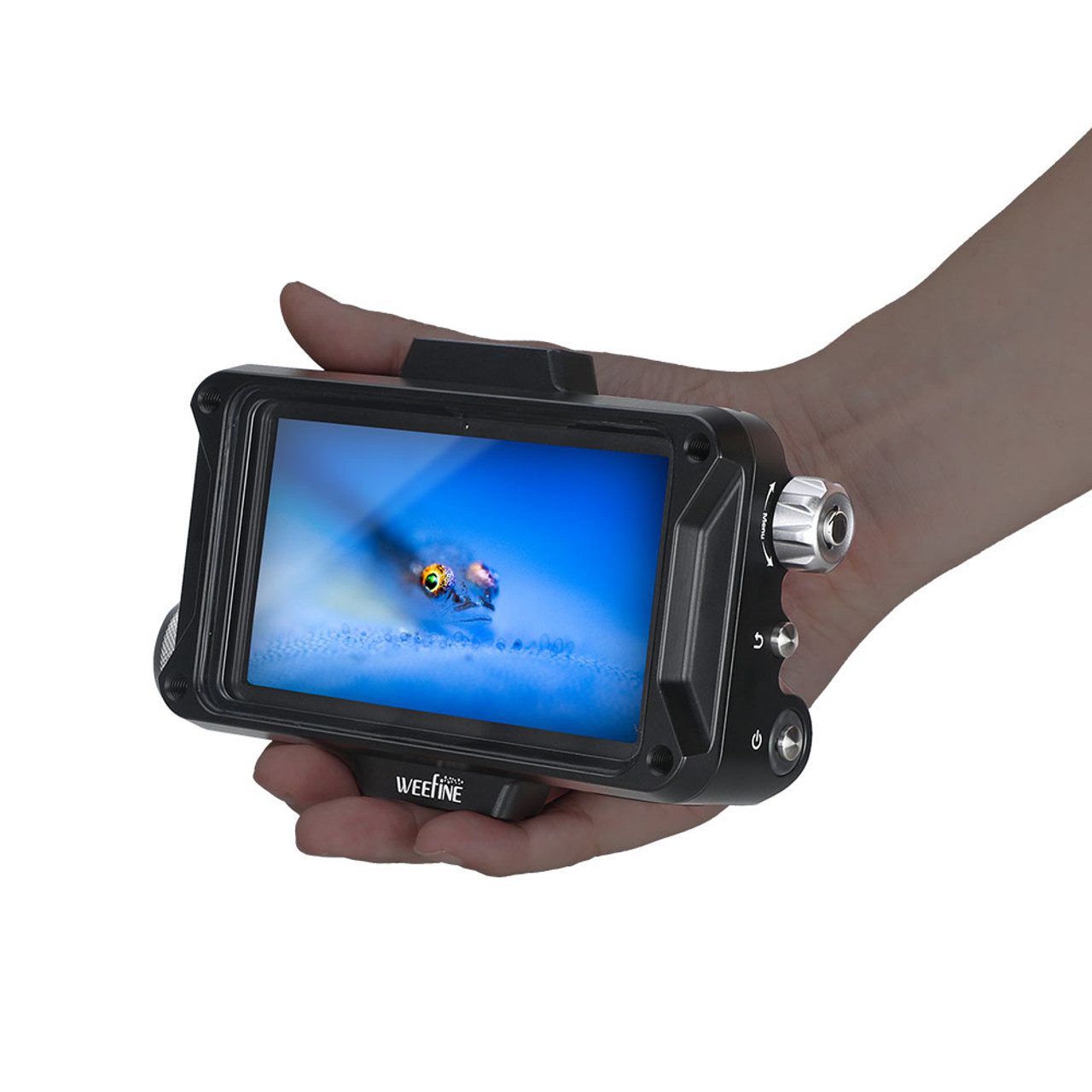

Weefine WED-5 PRO 5" High Definition LCD Underwater Monitor
A lightweight yet rugged, compact monitor with Full HD (1080x1920) Resolution in 16:9 aspect ratio. Constructed from aluminium alloy with anodised surface treatment it is waterproof to 100 meters and weighs as little as 250 grams underwater.
The monitor is easy to use with power and battery levels clearly indicated. The built-in shade allows for a clear view avoiding any glare.
An adaptable monitor with a choice of M16 or M24 connection. An HDMI DD-C1 cable is included but other cables are available as accessories. The included battery offers a working time of up to 90 minutes at 70% brightness.
The box includes battery, charger, spare o-rings, M16 adapter, M24 adapter, HDMI signal cable & HDMI DD-C1 cable
Key Features:
- Ultra-Bright Display: 3200-nit brightness ensures clear viewing even underwater or in bright sunlight.
- High-Resolution Screen: 5-inch LCD with 1920×1080 pixels and 443 ppi for sharp, vivid images.
- Wide Color Gamut: Supports Rec.709 color for accurate, vibrant colors.
- Smart Auto-Backlight: Automatically adjusts brightness to suit lighting conditions, saving power.
- Advanced Monitoring Tools: Includes waveform, luminance histogram, vector scope, RGB waveform, fake color, zebra crossing, peak focus, and 3D LUT support for precise video monitoring.
- 3D LUT Support & Firmware Updates: Import custom 3D-LUT files and update firmware easily via USB.
- Underwater-Ready Design: Waterproof to 100 meters with durable aluminum alloy body and corrosion-resistant anodized finish.
- User-Friendly Controls: Intuitive buttons and dial are designed specifically for underwater operation.
- Versatile Mounting: Comes with top and bottom ball mounts plus standard rail mounting options.
- Includes Sunshade: Detachable sunshade helps reduce glare for better visibility.
- Battery-Powered: Equipped with rechargeable WBL-12C battery lasting about 90 minutes per charge.

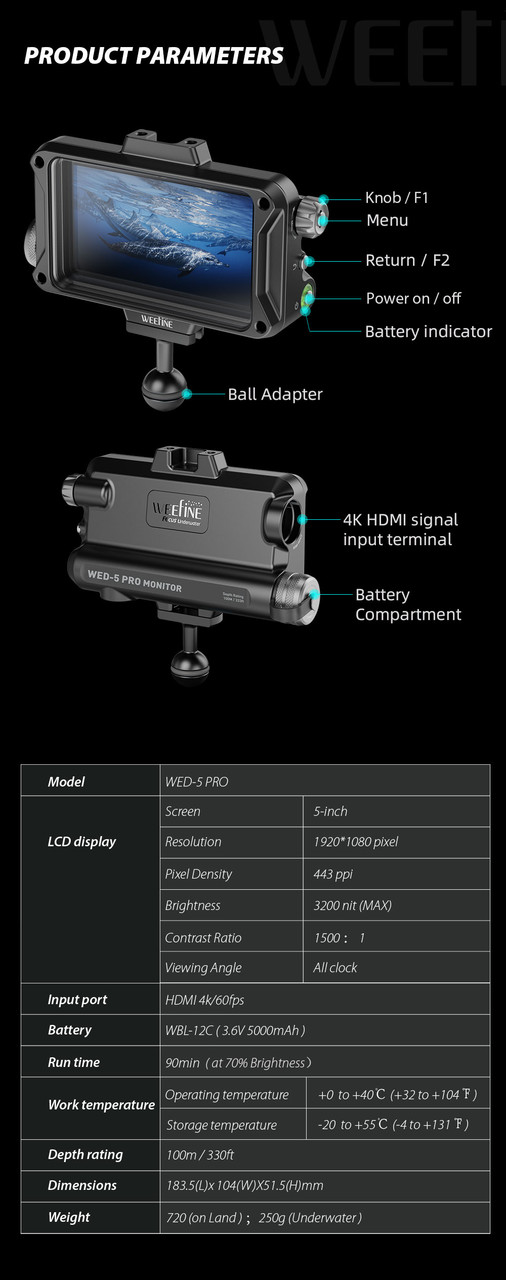

Specifications:
- Screen Size - 5 inches
- Resolution - 1920 × 1080 pixels
- Pixel Density - 443 ppi
- Brightness - 3200 nit (max)
- Contrast Ratio - 1500:1
- Viewing Angle - All clock (wide angle)
- Input Port - HDMI 4K/60fps
- Battery - WBL-12C (3.6V 5000mAh)
- Battery Life - Approx. 90 minutes
- Operating Temperature - 0°C to +40°C
- Storage Temperature - -20°C to +55°C
- Waterproof Depth Rating - 100 meters
- Dimensions (L×W×H) - 183.5 × 104 × 51.5 mm
- Weight (On Land) - 720 g
- Weight (Underwater) - 250 g
