Product Description

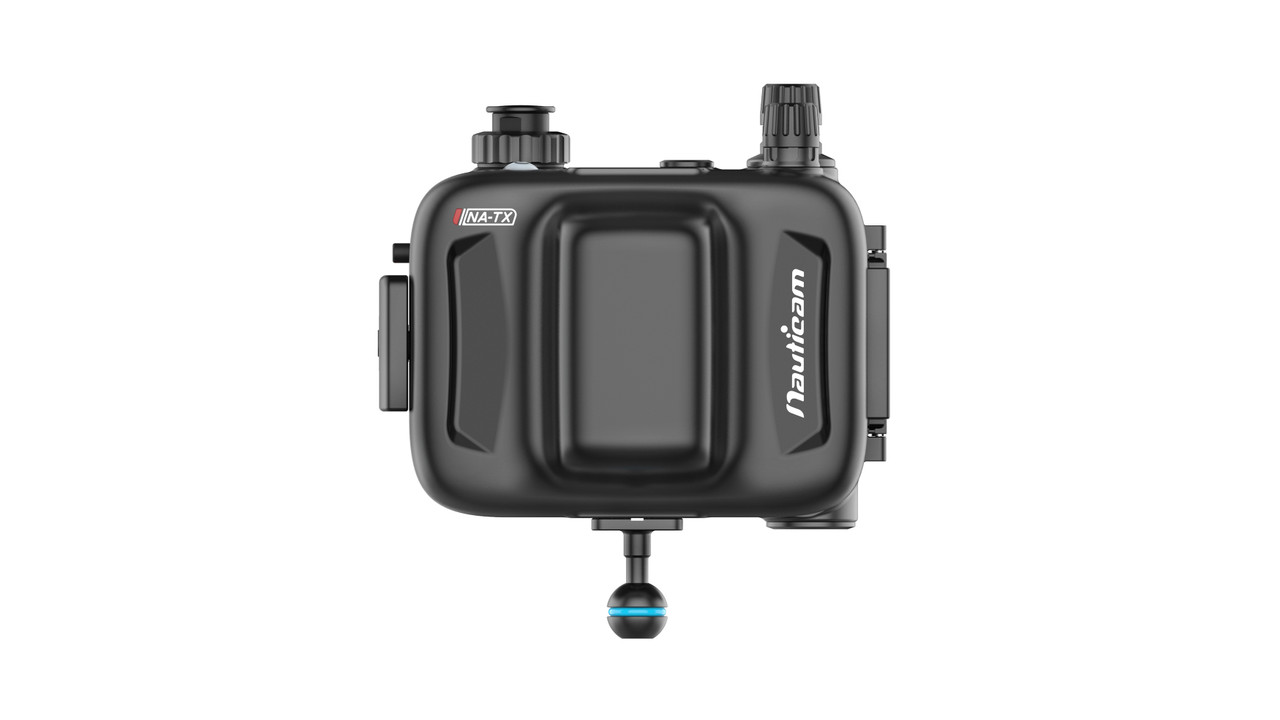

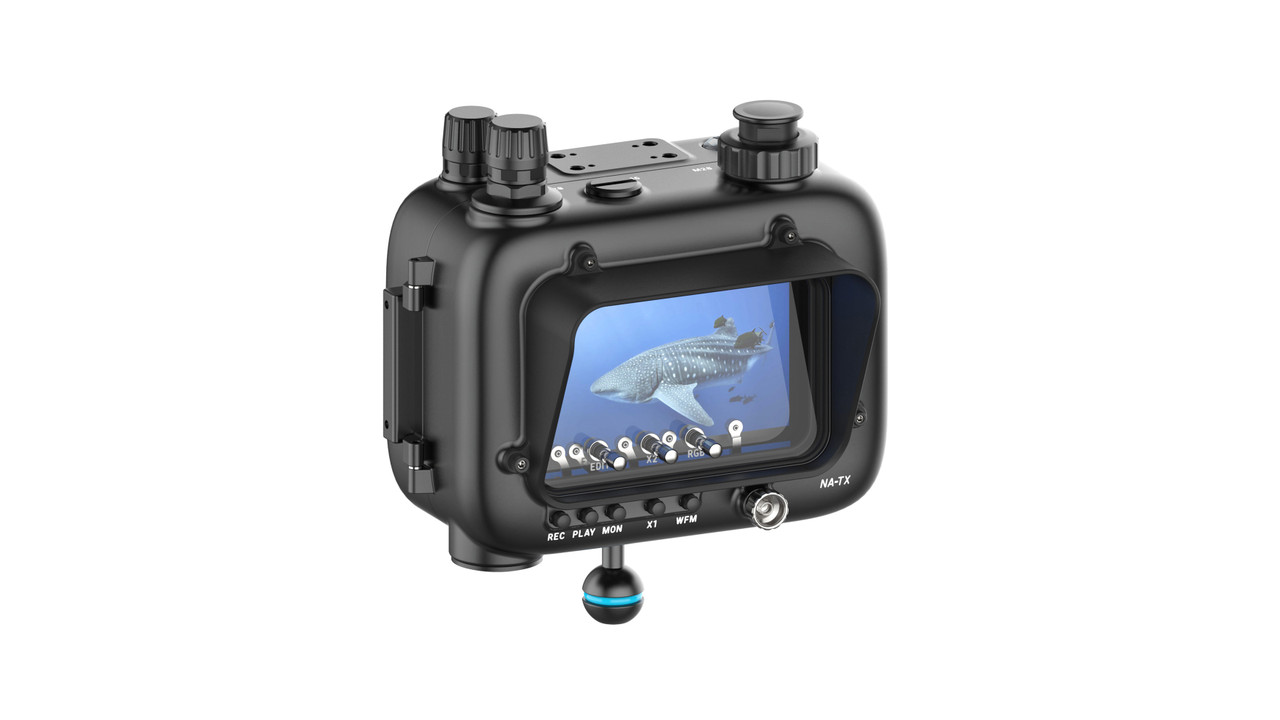

Nauticam Atomos Ninja TX Housing for Atomos Ninja TX /TX GO/ RAW Monitor #16613
Specification:
Dimensions: 206mm (W) × 143mm (H) × 153mm (D) (Excl. ball mount, Vacuum Valve accessories)
Weight (in air): 1.56 kg
Weight (in water): TBA (Incl. Ninja TX with NP-F970 battery)
Depth Rating: 100m
Accessory ports on top: 2x M16, 2x M28
Accessory ports on bottom: 1x M28
Mounting thread holes on top: 4x M3 for mounting ball (#17958), 4x 1/4-20 for Housing Mounting System (#17951)
Mounting thread holes (bottom): 4x M3 for mounting ball (#17958), 4x 1/4-20 for Monitor Mount System (#17961)
Vacuum valve: 25625 M16 Vacuum Valve II (pre-installed)
Compatible monitors: Ninja TX /TX GO/ RAW Monitor-Recorders
Compatible batteries: NP-F970 battery, SmallRig L-Series/NP-F970 USB-C Rechargeable Camera Battery (10,500mah/76.65Wh capacity)
What’s in the box?
- NA-Atomos Ninja Tx Housing
- 25625 M16 Vacuum Valve II (pre-installed)
- 25089 M28 HDMI 2.0 Adaptor (pre-installed)
- 17958 Mounting ball (pre-installed)
- Monitor hood
- 90137 Housing O-ring, lubricant, O-ring remover
- CR2032 Battery (for moisture alarm and vacuum system)
- Allen Wrench Set
- Padded Travel Case
Main Features:
- Reliable Rotary Housing Lock Mechanism
- Support HDMI in & SDI out (cross conversion), SDI in & SDI out
- 2x M28 accessory ports on top, 4pcs 1/4-20 UNC thread holes for both top and bottom.
- Compatible with Sony NP-F series battery, and SmallRig L-Series/NP-F970 USB-C Rechargeable battery, Max. size (Lx W x D) : 71.6 x 38.5 x 74.6.
- Includes Vacuum check and leak detection system
Recommended accessories
17951 Nauticam Monitor Housing Mounting System (from SNA158538 onwards.)
17952 Nauticam Atomos Shogun housing mounting adaptor for NA-A7S/A7II/A9/A7RIII/A7RIV/A7SIII/A1
17953 Nauticam Atomos Shogun housing mounting adaptor for NA-GH4/GH5SV
17954 Universal Tripod Plate for Nauticam Housings
17957 Nauticam Atomos Shogun Housing Mounting Adaptor for NA-S1R/S1H/BMPCC
17958 Mounting Ball for NA-502/502B/503/ Ninja V/ Ninja V-S/Shinobi/RT4.7/FHD5/058
17951 Nauticam Monitor Housing Mounting System

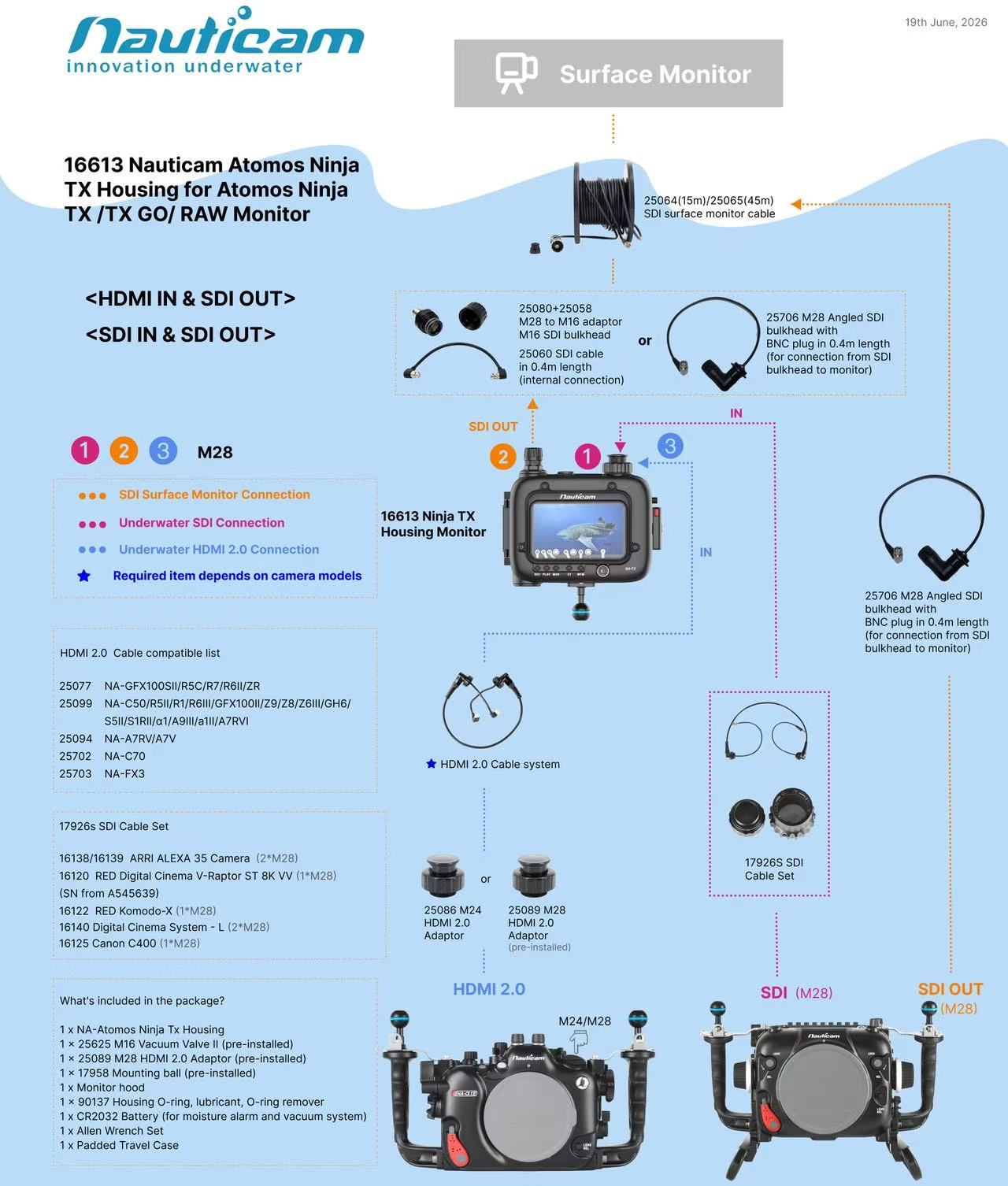

Optional Accessories for Signal input and output
- HDMI 2.0 input
25077 M24D1R205-M28A1R170 HDMI 2.0 Cable (for NA-XT3/R5/6/OM1/R5C/R7 /R6II/XT5 to use with Ninja V housing)
25094 M24A3R140-M28A1R170 HDMI 2.0 Cable (for NA-A7SIII to use with Ninja V
25099 M24A2R200-M28A1R170 HDMI 2.0 Cable (for NA-A1 to use with Ninja V housing)
And internal MOD items
25079 M28A2R210-M28A1R170 HDMI 2.0 Cable (for NA-GH5V to use with Ninja V housing)
25084 M24D1R270-M28A1R170 HDMI 2.0 Cable (for NA-EM1X to use with Ninja V housing)
25085 M28C1R200-M28A1R170 HDMI 2.0 Cable (for NA-Z7V to use with Ninja V housing)
25087 M24D2R200-M28A1R170 HDMI 2.0 Cable (for NA-A7RIV/α1 to use with Ninja V housing)
25091 M28C1R215-M28A1R170 HDMI 2.0 Cable (for NA-1DXIII to use with Ninja V housing)
25098 M24D3R140-M28A1R170 HDMI 2.0 Cable (for NA-A7C to use with Ninja V housing)
25702 M24A3R210-M28A1R170 HDMI 2.0 Cable (for NA-C70 to use with Ninja V housing)
2) HDMI 1.4 input
25033 Standard HDMI bulkhead with M16 thread
25082 HDMI 1.4 Cable for Ninja V Housing in 0.75m Length (for connection from Ninja V housing to HDMI Bulkhead)
- SDI input
a). with right angle cable set.
17926S SDI Cable Set for use with NA-Ultra5/Ninja V/Nina TX.*
*96184 M24 Adaptor (FOC) is required for use with 16120 before A545638.
b).with straight SDI bulkheads/cable
25060 SDI cable in 0.4m length (SDI cable in 0.4m length (for connection from camera/monitor to underside of SDI Bulkhead) x 2pcs
25058 M16 SDI Bulkhead (mounted on Cinema housing) x2pcs
25061 SDI cable in 0.75m length (for connection between SDI Bulkheads)
c). with Angled SDI bulkheads.
25705 M16 Angled SDI bulkhead with BNC plug in 0.4mm length (for connection from SDI bulkhead to camera)
25706 M28 Angled SDI bulkhead with BNC plug in 0.4mm length (for connection from SDI bulkhead to monitor)
25061 SDI cable in 0.75m length (for connection between SDI Bulkheads)
4) SDI Output accessories required for Surface Monitor
25058 M16 SDI Bulkhead
25080 M28-M16 Step Down Adaptor (from SNA446755 onwards.)
25060 SDI cable in 0.4m length (for connection from SDI bulkhead to monitor)
25706 M28 Angled SDI bulkhead with BNC plug in 0.4m length (for connection from SDI bulkhead to monitor)
25065 SDI surface monitor cable in 45m length (for connection from SDI Bulkhead to Surface Monitor on land)
Other optional items:
25064 SDI surface monitor cable in 15m length (for connection from SDI Bulkhead to Surface Monitor on land)
25059 SDI cable extension adaptor
25062 SDI cable in 5m length (for connection between SDI Bulkheads)
25063 SDI cable in 30m length (for connection between SDI Bulkheads)
Housing O-rings:
90137 Housing o-ring (I.D.=170mm, C.S.=2.5mm)
