Product Description

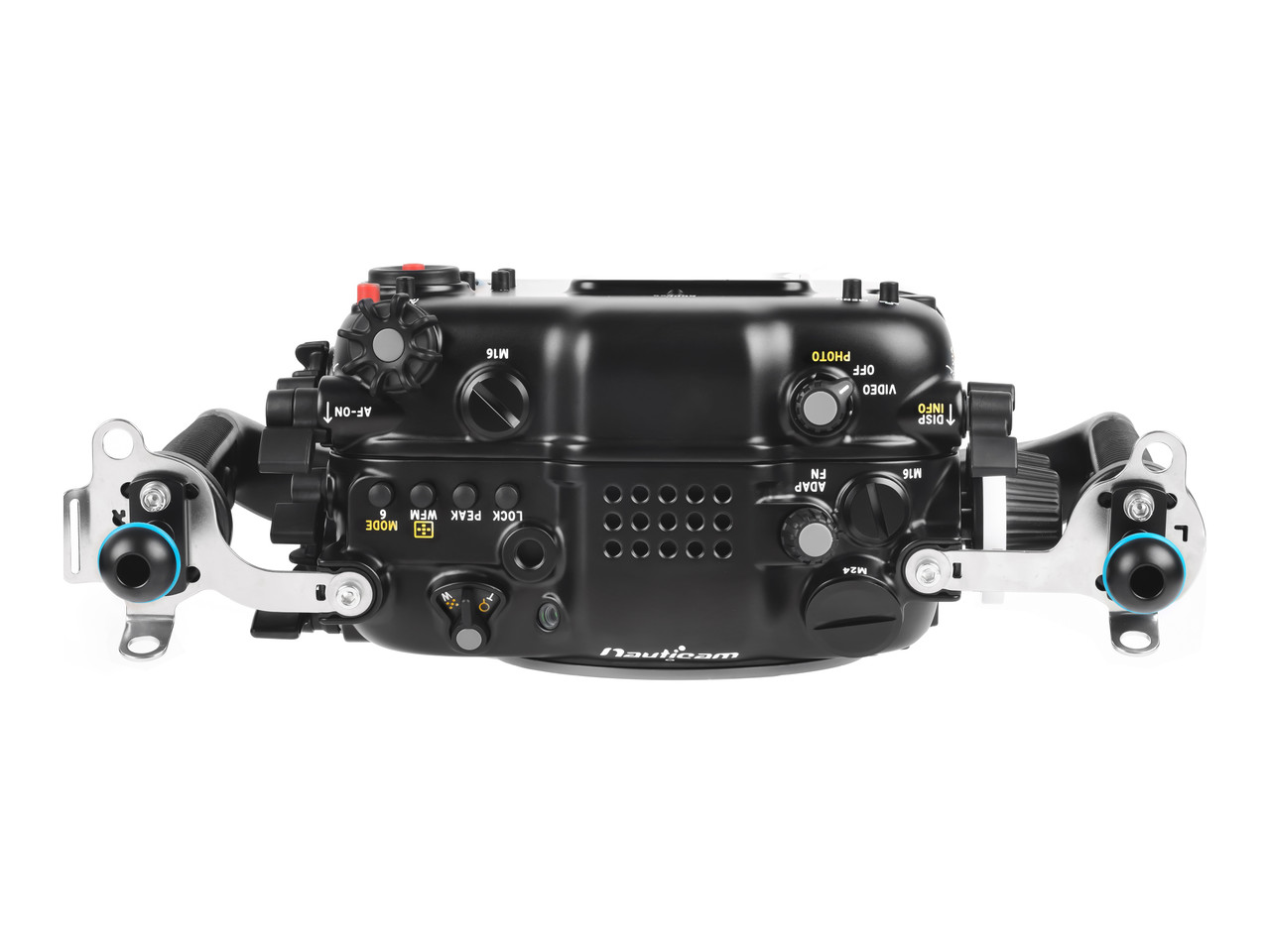

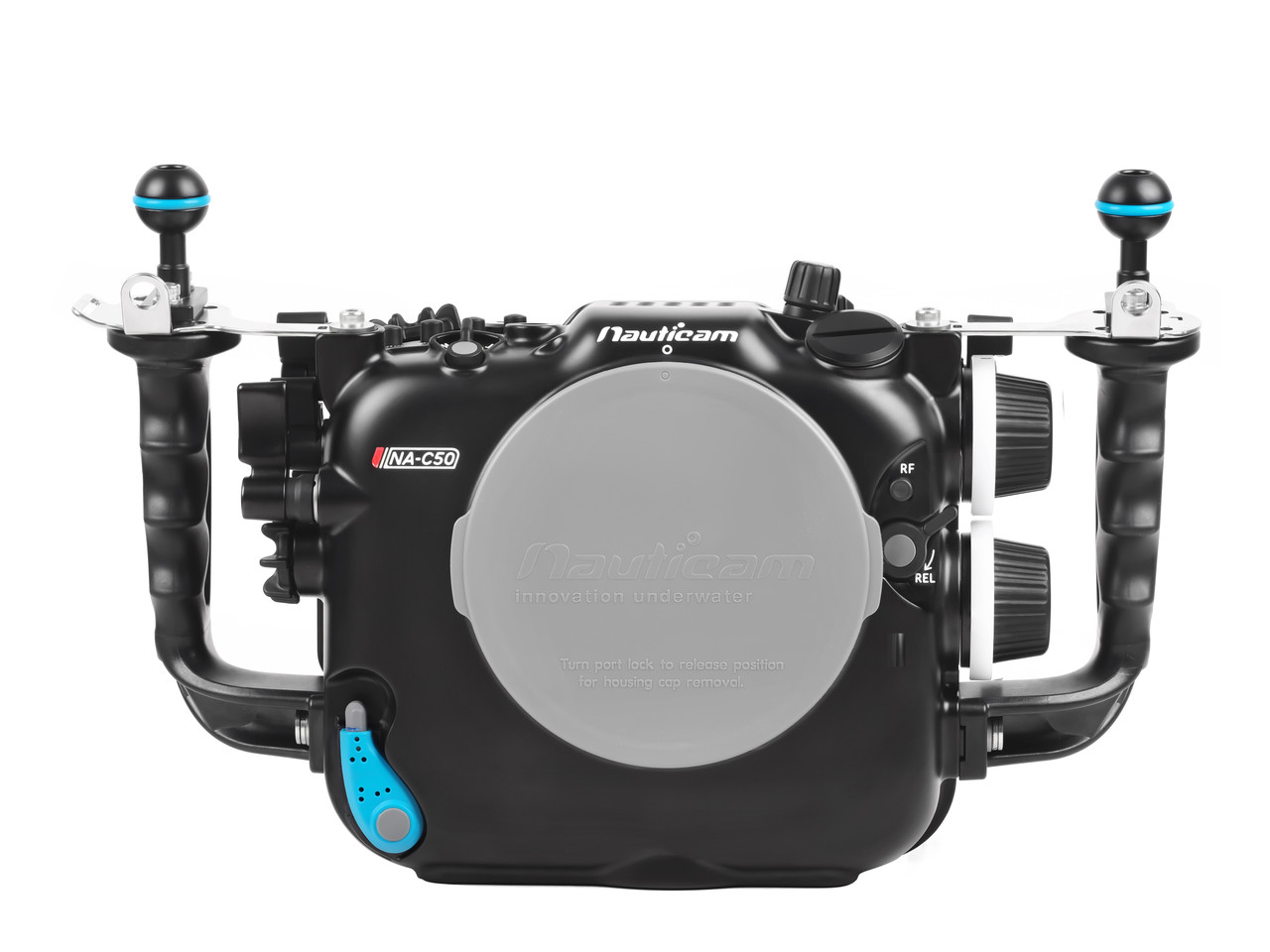

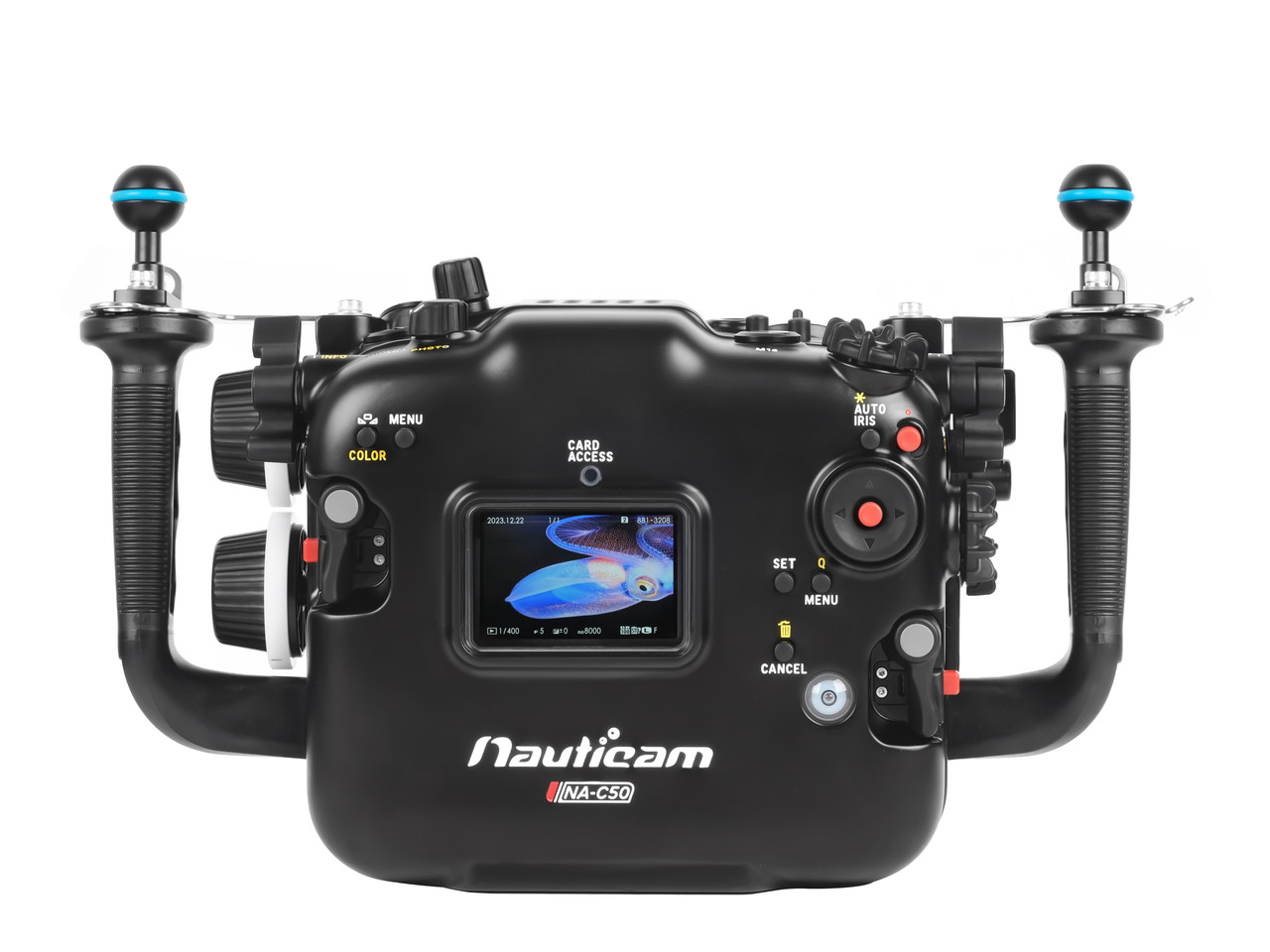

Nauticam #17344 NA-C50 Waterproof Housing for Canon C50 Cinema Camera
Specification:
Dimensions (housing only): 366mm (W) × 237mm (H) × 131mm (D)
Weight in air: TBA kg
Buoyance in water: TBA kg (incl. camera, LP-E6P and Anker 20000mAh Power bank)
Depth Rating:100m
Port System: N120 RF Mount for C50 (20mm shorten than NA-R5C)
Port accessories: Front M24 x 1 and M16 x 1, rear M16 x 1
Handles and stabilizing brackets: Pre-installed
HDMI support: HDMI 1.4 / 2.0
Compatible Cameras: Canon EOS C50Camera
Compatible lenses:
- RF Lenses
- EF Lenses with Canon mount adaptor EF to EOS R
- EF Lenses with Canon Drop-In Filter Mount Adapter EF-EOS R (xxxxx Control Kit is required)
*Zoom/focus gear for EF lenses are TBD
What’s in the box:
NA-C50 Housing
90222 Housing O-ring, lubricant, O-ring remover
2x Handles with mounting balls
CR2032 Battery (for moisture alarm and vacuum system)
Allen Wrench Set
USB-C to USB-C Right Angled Cable for Power Delivery.
Housing carry bag and shoulder strap
Main Features:
- N120 Port Lock II (support to install Extension/Port and lock automatically when the red port lock lever is closed)
- Reserve space on the bottom for Power bank
- DSLR Housing lock and tilted handles, Compatible with hand strap (#28130)
- Cinematic style big zoom and focus knob, ADAP FN knob on the top.
- FUNC/M-Fn Lever on the front right
- Double lever on the rear left to access DISP/INFO, and MEDIA/PLAYBACK.
- Double lever on the rear right to access AF-ON and MAGNIFY.
- Flash trigger or X-Sync for still shooting is unsupported.
- Mounting points:
Front top: 15x 1/4-20 UNC (for 16701 top handle and 17959 mounting ball), 1x M10 thread hole,
Bottom: 3x 1/4-20 UNC (for tripod plate or skids), 6x M5 mounting points (#25218 mounting ball set)
Main O-rings:
90222 Housing O-ring (I.D.=220mm, C.S.=4.0mm)
Recommended Power bank (inside housing)
*1. To use with the USB-C to USB-C Right Angled Cable in the housing package
*2. The maximum size of Power Bank: 165mm (W) x 76mm (D) x 26mm (H )
Recommended Accessories:
Housing Mount
16701 Top Handle for E2/F/C70/BGH1/BMPCC/R5C
17959 Housing Mounting Ball with 1/4'' Screws
25221 M10 strobe mounting ball for housing
25224 M10 strobe mounting ball for housing (with hole for using with lanyard)
25218 Mounting Ball Set for Tripod
25228 M5 strobe mounting ball for housing
Lanyard
25413 27cm lanyard with 2 snap hooks
Hand strap
28130 Hand Strap for 28113
Handles
28123 Pair of handles - size S (10mm closer to housing)
Surface USB-PD Power bank
26325 USB-C Bulkhead with USB-C Connector
HDMI OUTPUT:
Accessories for HDMI 2.0 Cable System
25086 M24 adaptor for HDMI 2.0 cable (incl. tightening tool)
25099 M24A2R200-M28A1R170 HDMI 2.0 Cable (for NA-α1/GH6/A9III to use with Ninja V housing) (TBD)
Monitor housing Options:
17922 Nauticam Atomos Ninja V Housing for Atomos Ninja V 5” 4Kp60 4:2:2 10-bit Reorder/Monitor/Player (excl. HDMI 2.0 cable)
17922S Nauticam Atomos Ninja V-S Housing for Atomos Ninja V 5” 4Kp60 4:2:2 10-bit Reorder/Monitor/Player (excl. HDMI 2.0 cable) with Atomos AtomX SDI Module
Accessories for HDMI 1.4 Cable System
25033 Standard HDMI bulkhead with M16 thread
26326 M24-M16 Adaptor for use with 26325
25100 HDMI (D-A) 1.4 Cable in 200mm length for NA-a1/FX3/GH6 (for connection from HDMI bulkhead to camera) (TBD)
Monitor housing Options:
16611 Nauticam 7'' G7 UW ULTRAHD Monitor (4K HDMI, 2K SDI input, excl. cables)
16612 Nauticam 7'' T7 UW ULTRAHD Monitor (HDMI 1.4 input, excl. cables)
25047 HDMI (D-D) cable in 800mm length (for connection between HDMI bulkheads)
*25047 is Required for use with 16611/16612.
17927 NA-Shinobi II Housing for Atomos Shinobi II 5.2" Monitor with HDMI 1.4 input
*17927 includes 25033, 25038 and 25100.
17922 Nauticam Atomos Ninja V Housing for Atomos Ninja V 5” 4Kp60 4:2:2 10-bit Reorder/Monitor/Player (excl. HDMI 2.0 cable)
25082 HDMI 1.4 Cable for Ninja V Housing in 0.75m Length (for connection from Ninja V housing to HDMI Bulkhead)
*25082 is Required for use with 17922 monitor housing
Monitor Mounting system
17951 Nauticam Atomos Shogun housing mounting system
17954 Tripod plate for NA-A7S and NA-GH4
17957 Nauticam Monitor Housing Mounting Adaptor (TBD)
17960 Universal Quadra-Pod Plate for Nauticam Housings
17961 Swivel and Tilt Adjustable Monitor Mount System (compatible with 16612/17927/17922 etc.)
Wet Lenses:
Macro
81202 Super Macro Convertor 2 (4x Magnification)
81203 Super Macro Convertor 3 (2.3x Magnification)
81301 Compact Macro Convertor 1 (CMC-1, 4.5x Magnification)
81302 Compact Macro Convertor 2 (CMC-2, 2.8X Magnification)
81501 Mid-range Focus Optimizer 1
81503Mid-range Focus Optimizer 3
Wide Angle
83202 Wet Wide Lens 1B (WWL-1B) 130 deg. FOV with compatible 28mm lenses
(incl. float collar)
83203 Wet Wide Lens Compact (WWL-C) 130 Deg. FOV with Compatible 24mm Lenses
85204 Wide Angle Conversion Port - 2 (WACP-2) 140 Deg. FOV with Compatible 14mm Lenes (incl. float collar)
85025 N100 0.36x Wide Angle Conversion Port Compact (WACP-C)
85206 N120/N100 0.36x Wide Angle Conversion Port with Integrated Float Collar and
Interchangeable Port Mounting Ring - (WACP-1B)
85207 N120/N100 Fisheye Conversion Port with Integrated Float Collar (FCP) 170 Deg.
FOV with Compatible 28mm Lenses
Macro to Wideangle
86201 Macro to Wideangle Lens 1 (MWL-1) 150 deg. FOV with full rame 60mm macro lens
87303 EMWL Set #3 (incl. focusing unit #3, 150mm relay lens and 3 objective lenses)
87203 EMWL Focusing Unit #3 (for Canon RF 100mm f2.8 Macro)
87211 EMWL 150mm Relay Lens
87212 EMWL Angled Relay Lens
87221 EMWL 60° Objective Lens
87222 EMWL 100° Objective Lens
87223 EMWL 130° Objective Lens
87226 EMWL 160° Objective Lens
Optional Accessories for using with Wet Lenses:
25101 M67 flip diopter holder for M67 macro ports
25108 M67 Double Flip Holder for M67 Macro Ports
83213 M67 to Bayonet Mount Converter II
83214 Bayonet Mount Adaptor for SMC/CMC
83250 M67 to Bayonet Mount Converter II
83251 M77 to Bayonet Mount Converter II
87501 Flip Holder for EMWL
87512 Shade for 130° Objective Lens
87513 Shade for 100° Objective Lens
87515 M67 Mount to EMWL Focusing Unit
87518 Strobe Mounting Brackets for EMWL Relay Lens
Buoyancy Recommendation for Housing Setups: (depending on port and lens choices)
72216 Ø70x200mm Carbon Fibre Aluminium Float Arm (Buoyancy 37 0g)
72217 Ø70x250mm Carbon Fibre Aluminium Float Arm(Buoyancy 520g)
72218 Ø70x300mm Carbon Fibre Aluminium Float Arm (Buoyancy 670g)
72219 Ø90x170mm Carbon Fibre Aluminium Float Arm (Buoyancy 450g)
72220 Ø90x220mmCarbon Fibre Aluminium Float Arm (Buoyancy 720g)
72233 Single Bayonet Holder II for Ø70 Float Arm
72234 Double Bayonet Holder II for Ø70 Float Arm
72243 Single Bayonet Holder II for Ø90 Float Arm
72244 Double Bayonet Holder II for Ø90 Float Arm
83252 Bayonet Holder for Arms
83253 Double Bayonet Holder for Arms
83254 Bayonet Lens Holder for Inon Float Arms
87516 EMWL Bayonet Holder for Ø70 Float Arm
87517 EMWL Bayonet Holder for Ø90 Float Arm
