Product Description

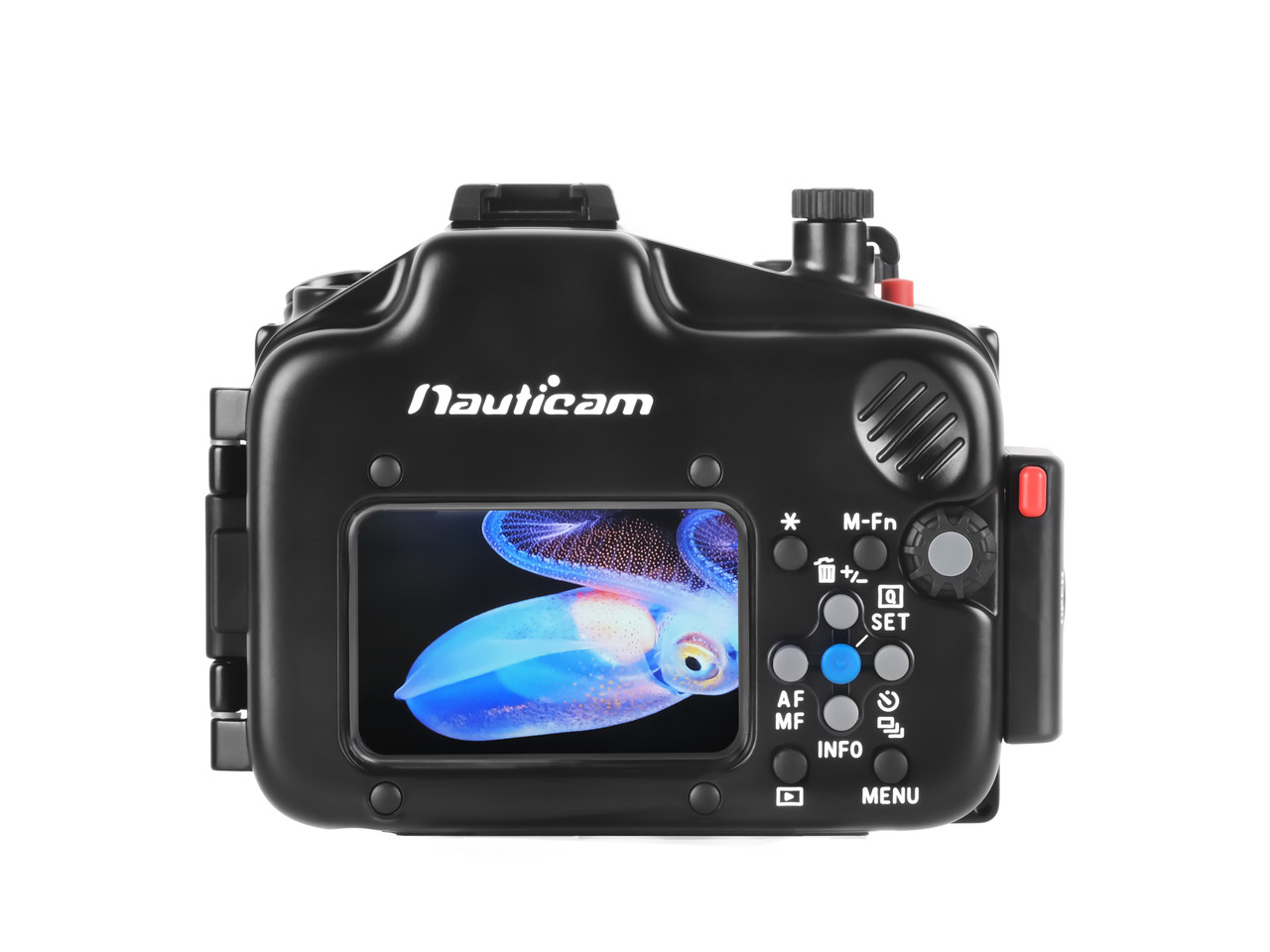

Nauticam NA-CV1 Waterproof Housing for Canon Powershot V1 Camera #17343
The new Nauticam NA-CV1 Waterproof Housing is a compact, travel friendly Canon Powershot setup designed for the new Canon Powershot V1 Compact Digital camera. The travel-friendly design is built around the Nauticam N50 Port system and is compatible with Nauticam's range of water contact wet lenses.
Key Features
- Powerful Video features in a Compact System
- Nauticam's ergonomic focused design puts key controls at your fingertips
- Durable Aluminium housing rated to 100 meters
- N50 Port System compatible with a range of Nauticam Water contact optics
- Compact Housing design with rotary housing lock
- Dedicated 3.5" Acrylic Dome port to support full zoom range 16-50mm (35mm equivalent)
- Supports all camera functions
- Support for dedicated Manual Flash Trigger
HDMI Output and Viewfinder is not supported in this housing.
The housing ships in a travel case and shutter trigger, ass the Nauticam Flexitray. We recommend the addition of the Nauticam M16 vacuum valve II so that you can check the integrity of your system before getting into the water.
Recommended Accessories

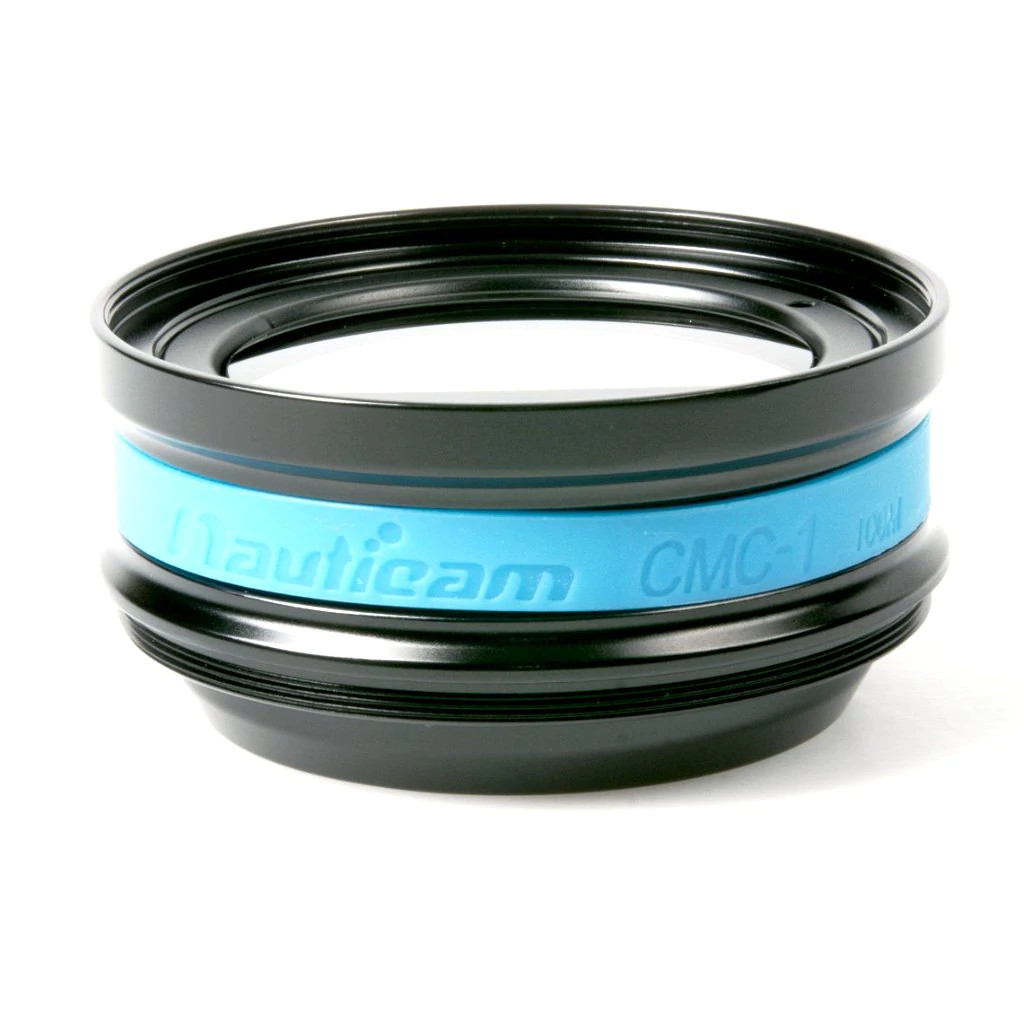

Nauticam Water Contact Wet LensesPaired with the Nauticam WWL-C you can get up to 130° field of view whilst the Nauticam CMC-1 achieves up to 0.9X magnification. These lenses are interchangeable underwater so you can shoot wide angle and macro on the same dive! |
 |
 |
|
| Wet Wide Conversion Lens | Compact Macro Converter |
|
|
Vacuum Check & Leak Detection SystemNauticam's vacuum check and leak detection system is included inside the housing. Pair with an optional Vacuum Valve so that you can perform a pre-dive system check |
||

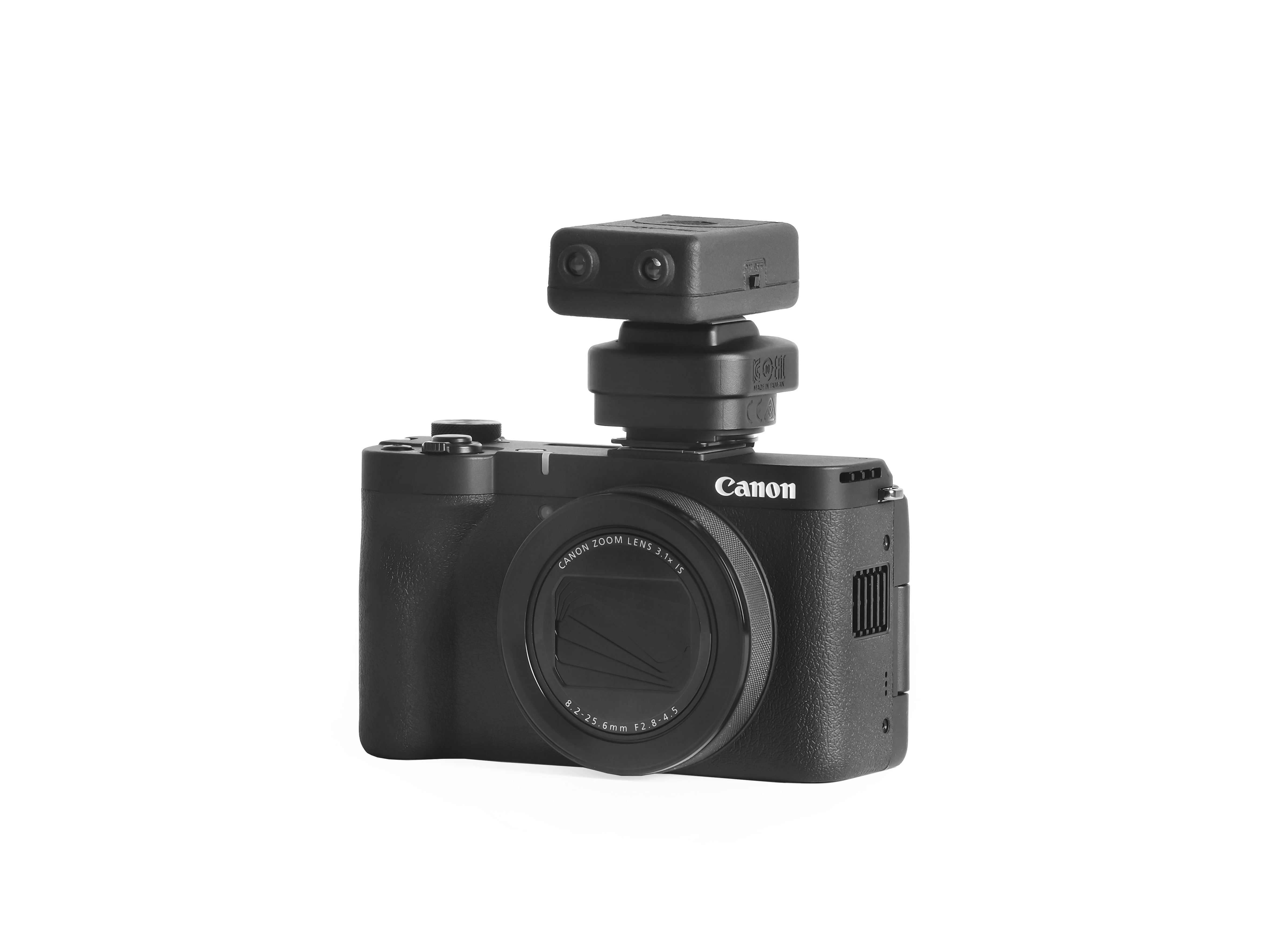

Flash TriggeringFor strobe photography, the NA-CV1 is requires a dedicated Mini Flash Trigger (26353) which uses small LEDs to trigger external flashes via Nauticam Universal Fiber Optic Cables (26216). |
 |
 |
|
| Nauticam Mini Flash Trigger for NA-CV1 | Universal Fiber Optic Cables | ||
Nauticam Housing Features
 |
Mission ControlNauticam's Mission Control design places all of the important camera controls as close to the handles as possible to provide effortless and quick camera setting changes underwater to insure you don't miss the shot. A combination of thumb levers, rubberised dials and push buttons interact with the camera inside and are positioned to place the key camera controls at your fingertips even when wearing cold water gloves. |
Housing Locking LatchThe housing uses Nauticam easy to use housing locking latch system. It also safely locks the housing and prevents accidental opening. It is very easy to open for a quick battery or memory card change. |
 |
Housing Specifications:
- Dimensions: 165mm(W) x 149mm(H) x 139mm(D)
- Weight in air: 1.2 kg.
- Buoyance in water: Negative 0.1g (incl. camera and battery)
- Depth rating: 100m
- Port mount: N50
- Accessory ports: Front M16 x 1, M10 x 1 on top
- Vacuum valve (optional): 25625 M16 vacuum valve II
- HDMI Support: N/A
Housing O-rings:
90131 Housing O-ring (I.D.=129mm, C.S.=2.5mm)
The Canon PowerShot V1 Digital Compact Camera
The Canon PowerShot V1 is a lightweight, compact camera that is perfect for creators of all levels, from aspiring enthusiasts to seasoned vloggers. Desidned for Content Creation the camera features an upgraded 22.3MP 1.4-Inch sensor with fast autofocus and a built-in 16-50mm zoom lens.
The V1 boasts continuous shooting at up to 30 frames per second, ensuring you never miss a fleeting moment. Effortlessly record 4K Ultra HD videos at 30p for cinematic quality that will impress your audience or 4K 60p with a 1.4 crop.
Sharing your creations is a breeze with built-in Wi-Fi and Bluetooth. Instantly transfer your photos and videos to your smart device for remote control, easy editing and uploading.
Its user-friendly interface makes it simple to navigate menus and customize settings to your liking.
Key Specifications of the Canon PowerShot V1 Digital Camera:
- 22.3 MP 1.4-inch sensor
- Integrated wide-angle 16-50mm f2.8-4.5 zoom lens
- Full-width 4K video up to 30p (60p with crop)
- Built-in cooling fan for extended recording times
- 4:2:2 10-bit log recording for greater flexibility and control in post-production
- Dual Pixel CMOS AF II for advanced subject tracking
- Optical Image stabilisation and electronic stabilisation reduces camera shake
- Up to 30fps continuous stills shooting
- Built-in 3-stop ND Filter for enhanced exposure control
Recommended Accessories for NA-CV1 Housing:
Housing Mount25221 M10 strobe mounting ball for housing
25311 Strobe mounting ball for cold shoe
25312 Light mounting stem for cold shoe
25321 Long Strobe Mounting Ball for Cold Shoe
25322 Long Light Mounting Stem for Cold Shoe
71311 Strobe mounting ball for Easitray& Flexitray
Vacuum Valve
25625 M16 Vacuum Valve II (Pushbutton Release)
LCD Magnifier
25106 LCD Magnifier with Dioptric Adjustment
25131 LCD Magnifier attachment rails for NA-RX100III/RX100IV/RX100V/RX100VI
Housing Tray and Hand Strap
71206 Easitray II with left handle (with 2pcs 1/4'' screws)
71207 Flexitray II with left handle (with 2pcs 1/4'' screws)
71208 Adjustable right handle II (for Easitray II & Flexitray II)
71209 Flexitray plate II W with left handle (with 2 tripod holes)
36316 Hand strap for Mirrorless IL camera & compact camera housing (Standard)
36323 Long hand strap for Mirrorless IL camera & compact camera housing
Lanyard (for use with Housing Tray and handle brackets)
25227 27cm lanyard with shackles
25411 18cm lanyard with 2 snap hooks
Wet Lenses Recommendation
38703 N50 Short Port 25 with Bayonet Mount (*required for use with both WWL-C/1B and MFO-1, CMC-1/2)
83203 WWL-C, Lens FOV 84-46º, Converted FOV. 130-71º, Zoom Range 24-50mm *slight vignetting at 24mm.
83202 WWL-1B, Lens FOV 75-46º, Converted FOV 130-80º, Zoom Range 28-50mm (35mm equivalent).
Macro Converter
|
*Test at focal range 50mm |
|
The Smallest Subject Size |
Working Distance |
Remarks |
|
without diopter |
|
105 x 70 mm |
175-∞ |
As reference. |
|
with 81501 MFO-1 |
|
89 x 59.3 mm |
116-1150 mm |
|
|
with 81302 CMC-2 |
|
48 x 32 mm |
55-125 mm |
|
|
with 81301 CMC-1 |
|
38 x 25.4 mm |
37-74 mm |
|
Buoyancy Setup Accessories
72262 Ø70x250mm Carbon Fibre Aluminium Float Arm(Buoyancy 520g)72263 Ø70x300mm Carbon Fibre Aluminium Float Arm (Buoyancy 670g)
72264 Ø90x170mm Carbon Fibre Aluminium Float Arm (Buoyancy 450g)
72265 Ø90x220mmCarbon Fibre Aluminium Float Arm (Buoyancy 720g)
72266 Ø50x200mm Carbon Fibre Aluminium Float Arm (Buoyancy 160g)
72267 Ø50x250mm Carbon Fibre Aluminium Float Arm (Buoyancy 240g)
72268 Ø50x300mm Carbon Fibre Aluminium Float Arm (Buoyancy 320g)
72233 Single Bayonet Holder II for Ø70 Float Arm
72234 Double Bayonet Holder II for Ø70 Float Arm
72243 Single Bayonet Holder II for Ø90 Float Arm
72244 Double Bayonet Holder II for Ø90 Float Arm
83252 Bayonet Holder for Arms
83253 Double Bayonet Holder for Arms
83254 Bayonet Lens Holder for Inon Float Arms
