Product Description

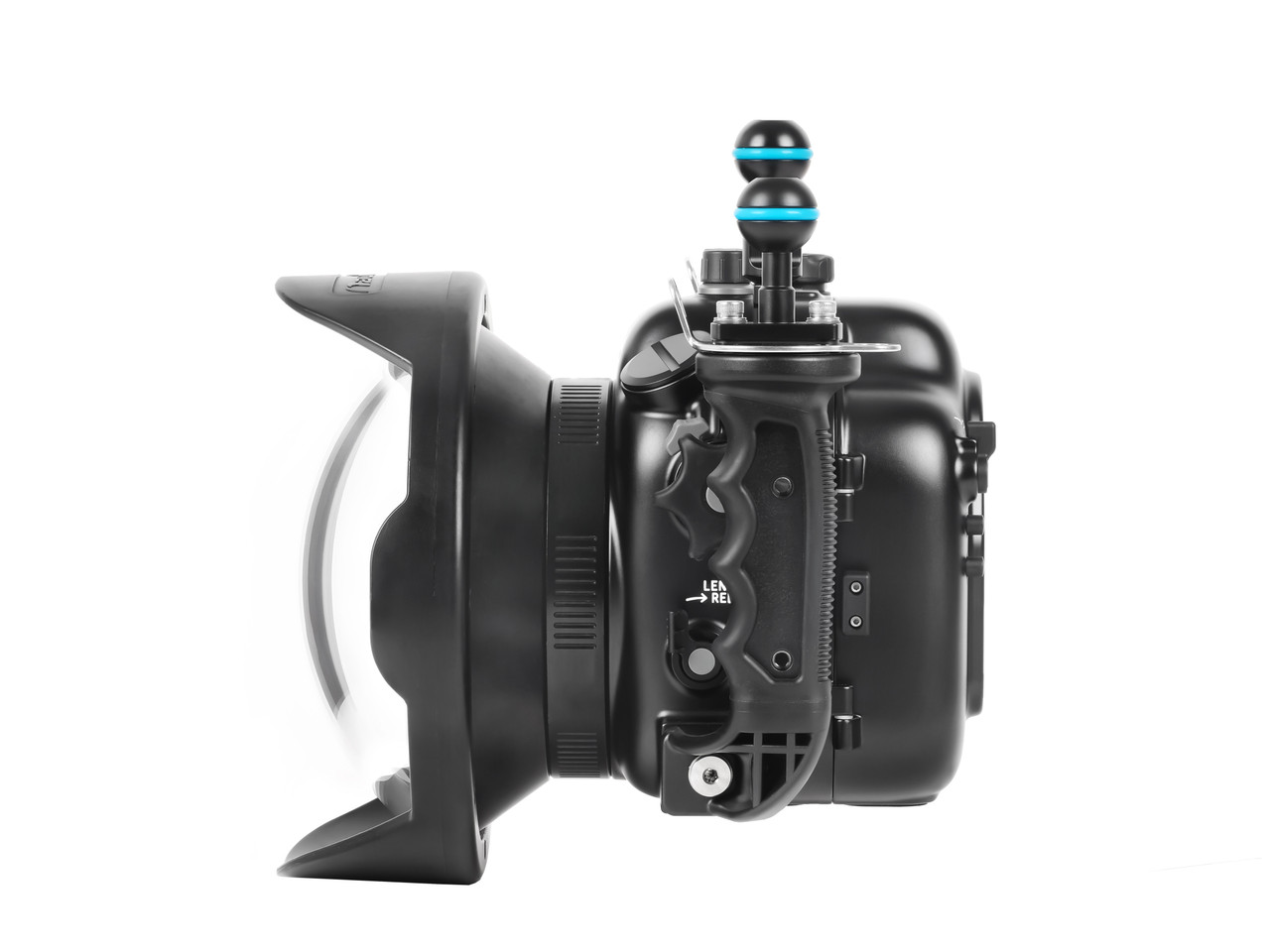

Nauticam NA-Z5II Waterproof Housing for Nikon Z 5 Mark II Camera #17232
The new Nauticam NA-Z5II Waterproof Housing designed for the new Nikon Z 5 Mark II camera.
Key Features
- Nauticam's ergonomic focused design puts key controls at your fingertips
- Integrated handles with ball mounts provide a stable grip and platform for your strobes
- Durable Aluminium housing rated to 100 meters
- N120 Port System for Nikon NZ6III/Z5II camera systems
- Multiple Accessory ports for HDMI output and Vacuum Valve Installation
- Handles, brackets and ball mounts pre-installed
- Compatible with Z mount and F mount lenses (using the FTZ/FTZII adapter)
- AF-On, DISP and Lens REL levers
- Monitor mounting support system on top of housing
A dual tray and handles are include with ball mounts for strobes and other accessories. We recommend the addition of the Nauticam M16 vacuum valve II so that you can check the integrity of your system before getting into the water.
Recommended Accessories
|
|
Vacuum Check & Leak Detection SystemNauticam's vacuum check and leak detection system is included inside the housing. Pair with an optional Vacuum Valve so that you can perform a pre-dive system check |
||
Flash TriggeringSpace is provided within the housing for the a compatible Nauticam Flash Trigger. Pair with the Nauticam Universal Fiber Optic Cables to trigger your underwater strobes |
 |
||
| Universal Fiber Optic Cables | |||
Nauticam Housing Features
 |

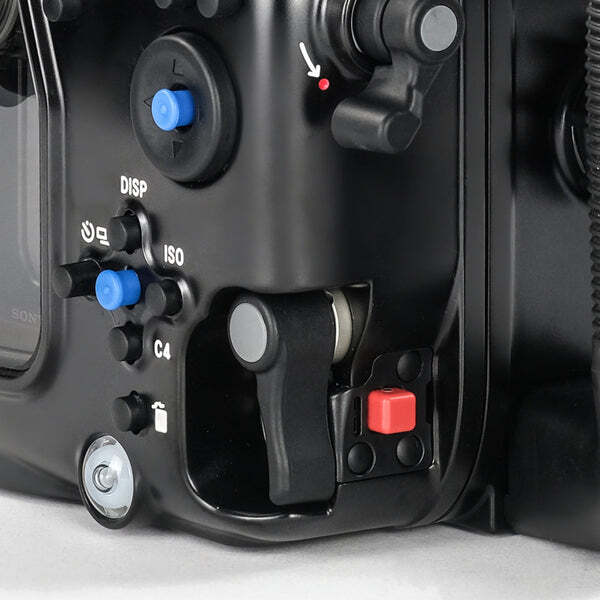

Mission ControlNauticam's Mission Control design places all of the important camera controls as close to the handles as possible to provide effortless and quick camera setting changes underwater to insure you don't miss the shot. A combination of thumb levers, rubberised dials and push buttons interact with the camera inside and are positioned to place the key camera controls at your fingertips even when wearing cold water gloves. |

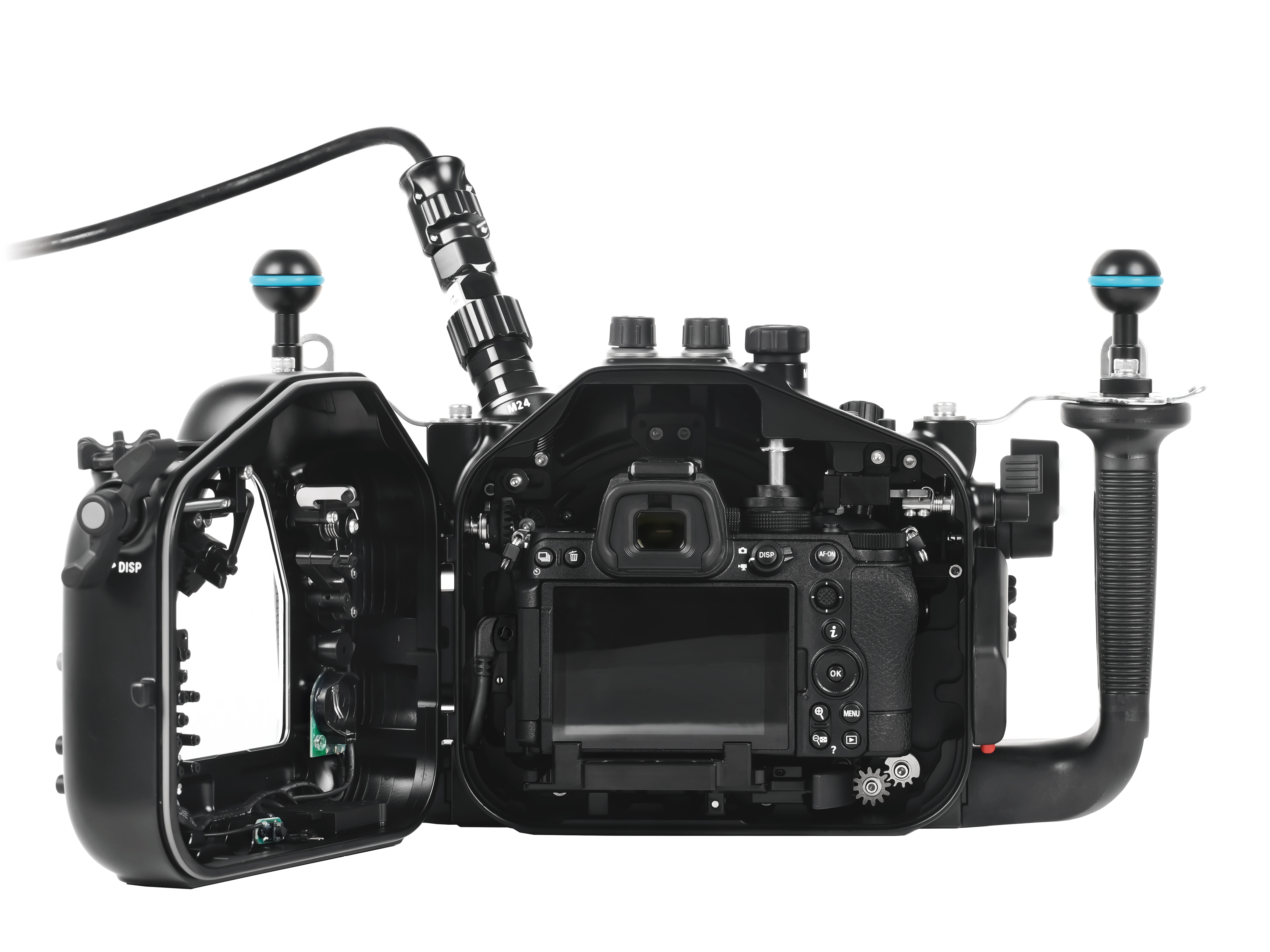

Housing Locking LatchThe housing uses Nauticam easy to use housing locking latch system. It also safely locks the housing and prevents accidental opening. It is very easy to open for a quick battery or memory card change. |
 |
 |

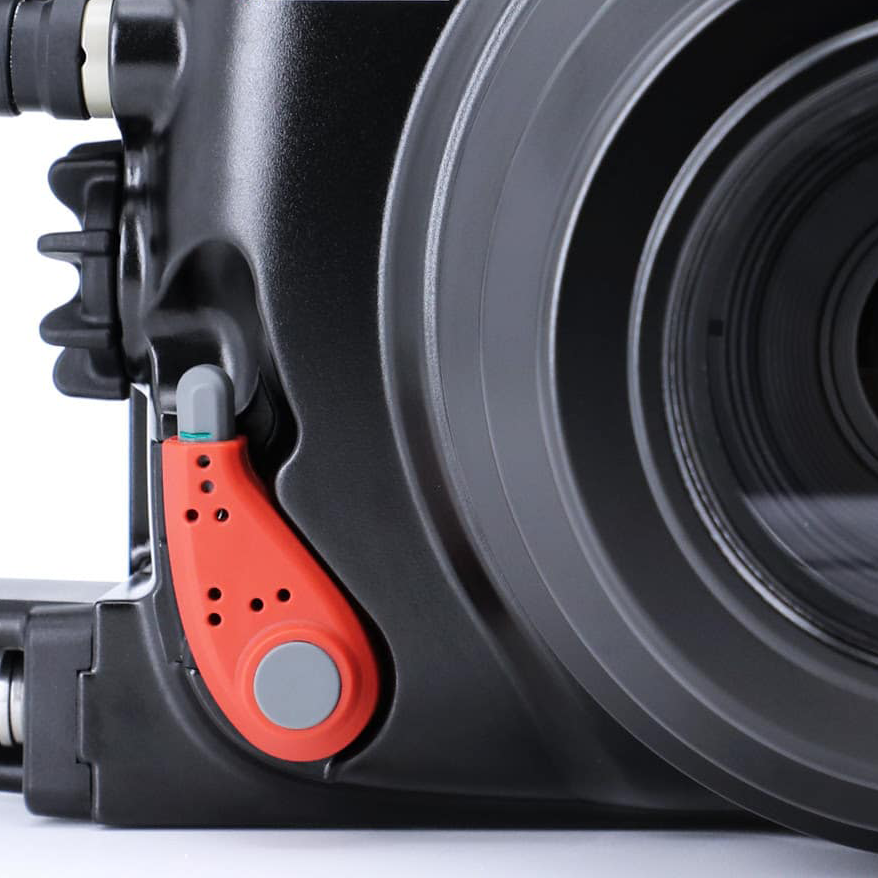

Patented Port Locking SystemThe housing uses Nauticam patented port locking system which is also used on their DSLR housings. No twisting or threading action is required to mount a port, and it locks securely in place with this lever. Nauticam also offers locking port extensions, meaning a dome will never twist, even when used with a long extension ring. |
Housing Specifications:
The NIkon Z5 II Mirrorless Camera
The Nikon Z5 II is a full-frame camera upgraded with class-leading features for hybrid stills and video creators. Stand-out features include and updated sensor, EVF, LCD and the latest EXPEED7 processor. Capture breathtaking images with its sharp 24.5MP sensor and fast 3D subject tracking autofocus system.
The Z5 II boasts continuous shooting at up to 11 frames per second when capturing full-resolution 14-bit RAW images or 30fps JPEGs, ensuring you never miss a fleeting moment. Effortlessly record 4K Ultra HD videos at 30 or 4K 60p with a crop for cinematic quality that will impress your audience.
The Z5 II is compatible with a wide range of NIKKOR Z lenses, giving you endless creative possibilities. Explore new perspectives and capture unique shots with ease. Its user-friendly interface makes it simple to navigate menus and customize settings to your liking.
Key Specifications of the Nikon Z5 II mirrorless Camera:
- 24.5MP APS-C sensor
- Full-width 4K video up to 30p (60p with crop)
- 3D-tracking autofocus and subject recognition for nine subject types
- Up to 11fps mechanical
- Fully articulated 3.2" touchscreen
- Dual UHS-II SD card slot
SPECIFICATIONS:
Housing O-rings:
90137 Housing o-ring (I.D.=170mm, C.S.=2.5mm)
Port system:
N120 PORT SYSTEM FOR NIKON Z6III/Z5II CAMERA SYSTEM
Port Adaptors
22225 N120 FTZ Adaptor ER 25 with Knob (for Z6III/Z5II)
*for use with F mount and Other Z mount lenses.
Compatible Gears
19200 Z105-F for Nikkor Z MC 105mm F/2.8 VR S
19201 Z2450-Z Zoom Gear for Nikkor Z 24-50mm f/4-6.3
19202 Z1424-Z Zoom Gear for Nikkor Z 14-24mm f/2.8 S
19203 Z1430-Z Zoom Gear for Nikkor 14-30mm f4 S
19204 Z2470-Z Zoom Gear for Nikkor Z 24-70mm f4 S
Flash Triggering:
Optical Trigger
26350 Flash Trigger for Nikon (Compatible with NA-D5/D500/D850)
26352 Manual Flash trigger for Nikon II (for Z6III)
26601 HSS TTL Converter for Nikon (NA-Z8/Z9/Z6III) *Recommended Aperture in range f16-f22 for TTL mode)
Electrical Triggering
25013M14 Nikonos 5-pin bulkhead with hotshoe connection
26326 M24-M16 Adaptor for use with 26325 *instead of existing 25081

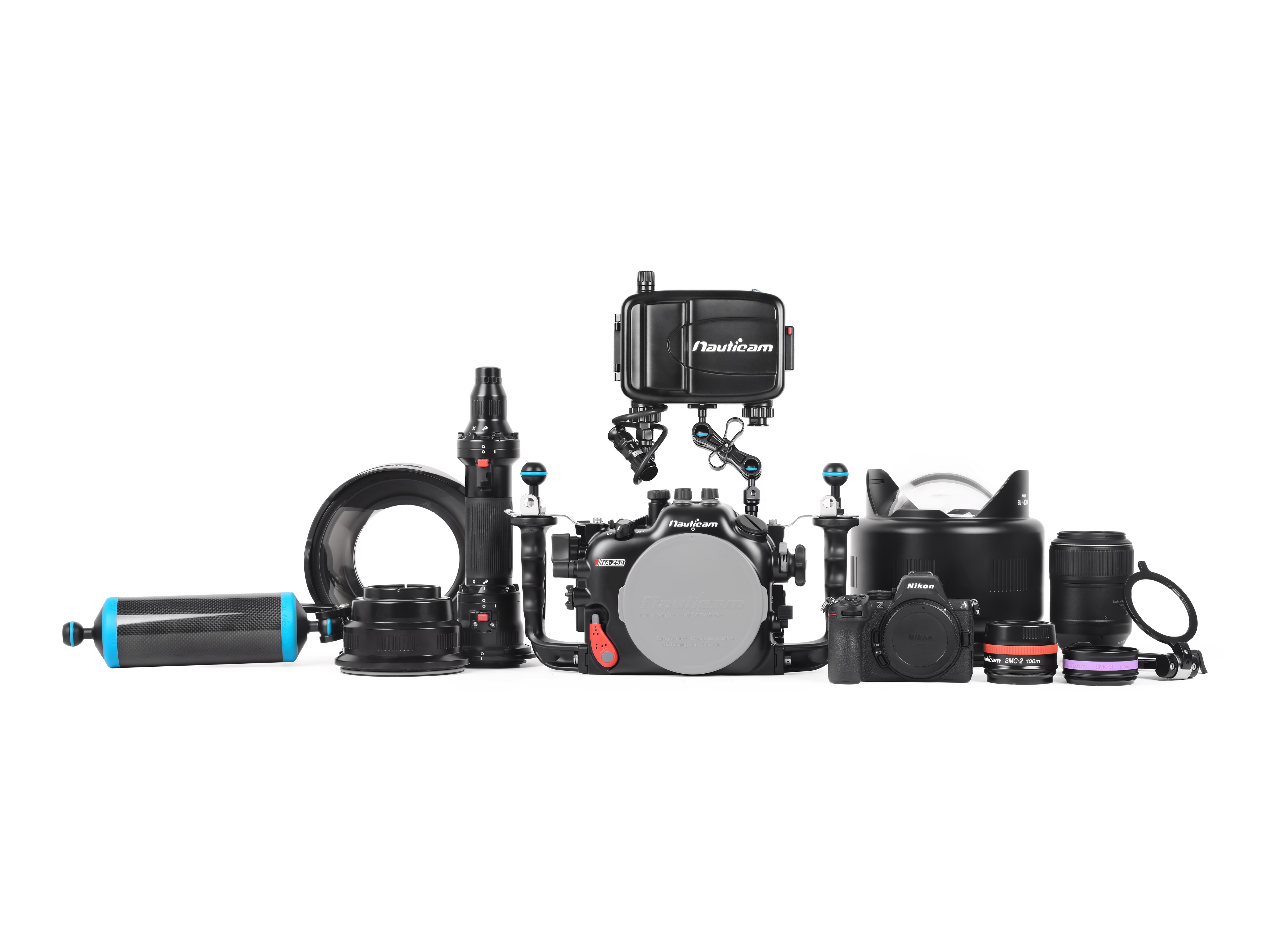

Recommended Accessories:
Housing Mount
25218 Mounting Ball Set for Tripod (for NA-A9/A7RIII/BMPCC/XT3)
25221 M10 strobe mounting ball for housing
25224 M10 strobe mounting ball for housing (with hole for using with lanyard)
25228 M5 strobe mounting ball for housing
Vacuum Valve
25625 M16 Vacuum Valve II (Pushbutton Release)
Lanyard
25413 27cm lanyard with 2 snap hooks
Hand strap
28130 Hand Strap for 28113
Handles
28123 Pair of handles - size S (10mm closer to housing)
Viewfinder
32221 NA-Z5II LCD Window for Nauticam Full Frame Viewfinder (required to use with below Viewfinders)
32212 Nauticam Full Frame Straight Viewfinder 40°/ 0.8:1
32214 Nauticam Full Frame Angle Viewinder 40°/ 0.8:1
87213 Reverse Angled Viewfinder for EMWL（40°/ 0.8:1）
87214 Reverse Straight Viewfinder for EMWL （40°/ 0.8:1）
Surface USB-PD Power bank
26325 USB-C Bulkhead with USB-C Connector
26326 M24-M16 Adaptor for use with 26325
HDMI OUTPUT:
- Required accessories for HDMI 1.4 Cable System
25033 Standard HDMI bulkhead with M16 thread
26326 M24-M16 Adaptor for use with 26325 *instead of existing 25081
25076 HDMI (D-D) Cable in 200mm Length for NA-XT2/XH1/A6400
(for internal connection from HDMI bulkhead to camera)
2) Compatible Monitor Options:
16612 Nauticam 7'' T7 UW ULTRAHD Monitor (HDMI 1.4 input, excl. cables)
25047 HDMI (D-D) cable in 800mm length (for connection between HDMI bulkheads)
*25047 is Required for use with 16612 monitor housing
17927 NA-Shinobi II Housing for Atomos Shinobi II 5.2" Monitor with HDMI 1.4 input
*17927 includes 25033,25038,25100.
17922 Nauticam Atomos Ninja V Housing for Atomos Ninja V 5” 4Kp60 4:2:2 10-bit Reorder/Monitor/Player (excl. HDMI 2.0 cable)
25082 HDMI 1.4 Cable for Ninja V Housing in 0.75m Length (for connection from Ninja V housing to HDMI Bulkhead)
*25082 is Required for use with 17922 monitor housing
Monitor Mounting system
17951 Nauticam Atomos Shogun housing mounting system
17952 Nauticam Monitor Housing Mounting Adaptor
17954 Tripod plate for NA-A7S and NA-GH4
17960 Universal Quadra-Pod Plate for Nauticam Housings
17961 Swivel and Tilt Adjustable Monitor Mount System (compatible with 16612/17927/17922 etc.) *Compatible with NA-Z5II from SN A665554 onwards.
Wet Lenses:
Macro
81202 Super Macro Convertor 2 (4x Magnification)
81203 Super Macro Convertor 3 (2.3x Magnification)
81301 Compact Macro Convertor 1 (CMC-1, 4.5x Magnification)
81302 Compact Macro Convertor 2 (CMC-2, 2.8X Magnification)
81501 Mid-range Focus Optimizer 1
81503Mid-range Focus Optimizer 3
Wideangle
83202 Wet Wide Lens 1B (WWL-1B) 130 deg. FOV with compatible 28mm lenses (incl. float collar)
83203 Wet Wide Lens Compact (WWL-C) 130 Deg. FOV with Compatible 24mm Lenses (incl. float collar)
85204 Wide Angle Conversion Port - 2 (WACP-2) 140 Deg. FOV with Compatible 14mm Lenes (incl. float collar)
85205 N100 0.36x Wide Angle Conversion Port Compact (WACP-C)
85206 N120/N100 0.36x Wide Angle Conversion Port with Integrated Float Collar and
Interchangeable Port Mounting Ring - (WACP-1B)
85207 N120/N100 Fisheye Conversion Port with Integrated Float Collar (FCP) 170 Deg.
FOV with Compatible 28mm Lenses
Macro to wideangle
87302 EMWL Set #2 (incl. focusing unit #2, 150mm relay lens and 3 objective lenses)
87202 EMWL Focusing Unit #2 (for Canon FF 100mm & APS-C 60mm)
87211 EMWL 150mm Relay Lens
87212 EMWL Angled Relay Lens
87221 EMWL 60° Objective Lens
87222 EMWL 100° Objective Lens
87223 EMWL 130° Objective Lens
87226 EMWL 160° Objective Lens
Wet Lenses Accessories
25101 M67 flip diopter holder for M67 macro ports
25108 M67 Double Flip Holder for M67 Macro Ports
83250 M67 to Bayonet Converter II
83214 Bayonet Mount Adaptor for SMC/CMC
87501 Flip Holder for EMWL
87512 Shade for 130° Objective Lens
87513 Shade for 100° Objective Lens
87518 Strobe Mounting Brackets for EMWL Relay Lens
87519 Shade for 160° Objective Lens
Buoyancy Recommendation for Housing Setups: (depending on port and lens choices)
72216 Ø70x200mm Carbon Fibre Aluminium Float Arm (Buoyancy 370g)
72217 Ø70x250mm Carbon Fibre Aluminium Float Arm (Buoyancy 520g)
72218 Ø70x300mm Carbon Fibre Aluminium Float Arm (Buoyancy 670g)
72219 Ø90x170mm Carbon Fibre Aluminium Float Arm (Buoyancy 450g)
72220 Ø90x220mm Carbon Fibre Aluminium Float Arm (Buoyancy 720g)
72233 Single Bayonet Holder II for Ø70 Float Arm
72234 Double Bayonet Holder II for Ø70 Float Arm
72243 Single Bayonet Holder II for Ø90 Float Arm
72244 Double Bayonet Holder II for Ø90 Float Arm
83252 Bayonet Holder for Arms
83253 Double Bayonet Holder for Arms
83254 Bayonet Lens Holder for Inon Float Arms
87516 EMWL Bayonet Holder for Ø70 Float Arm
87517 EMWL Bayonet Holder for Ø90 Float Arm
