Product Description

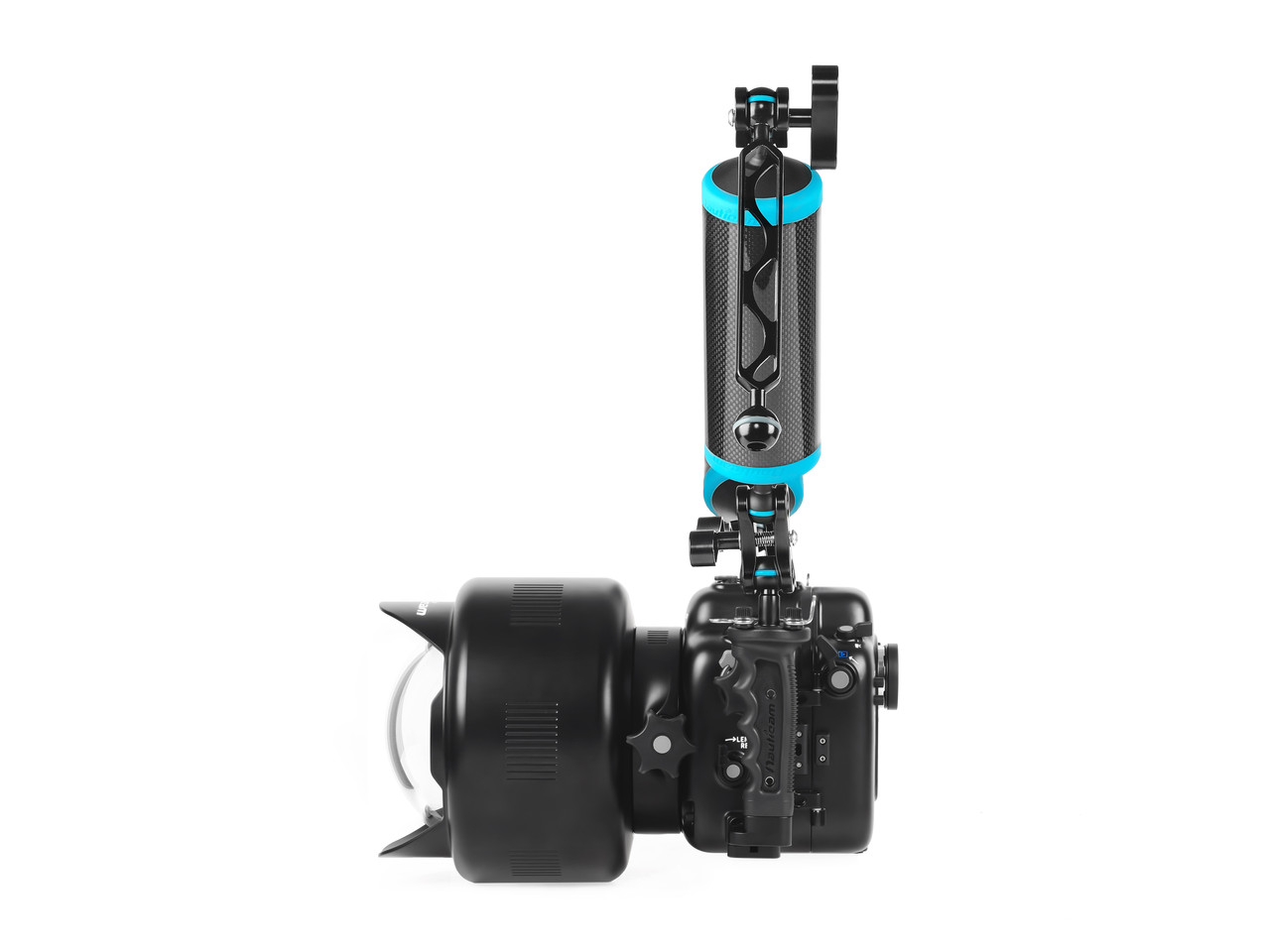

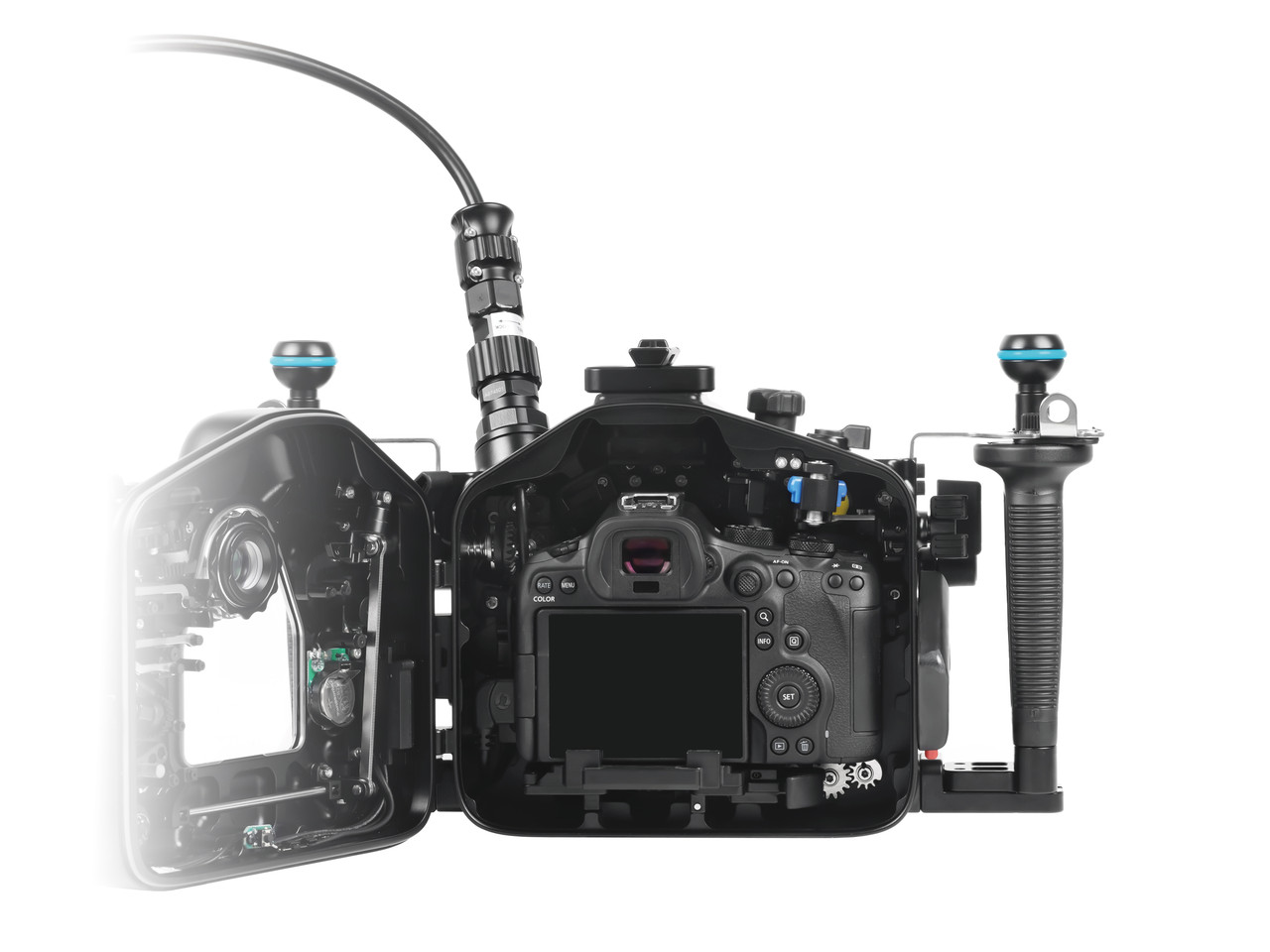

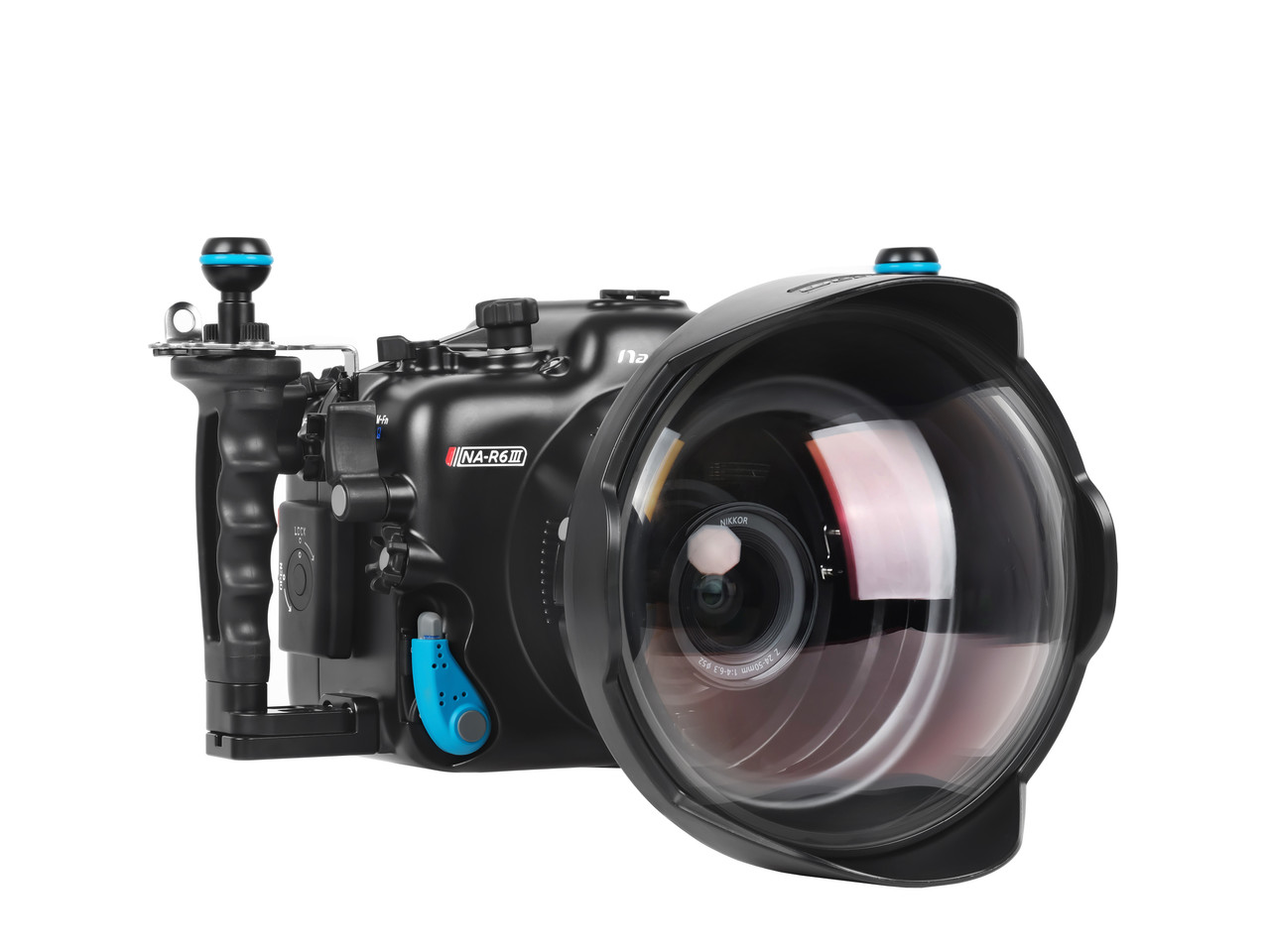

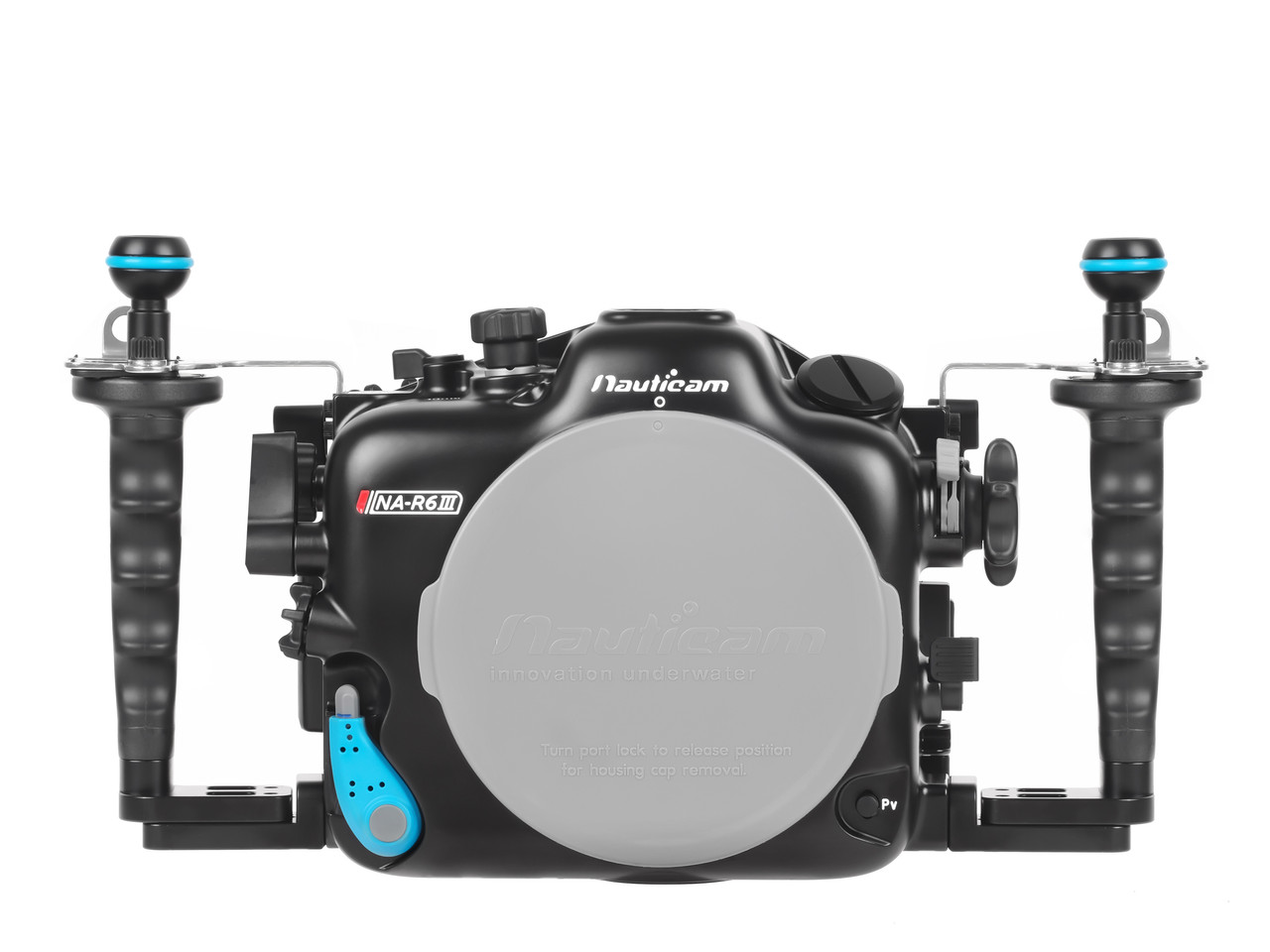

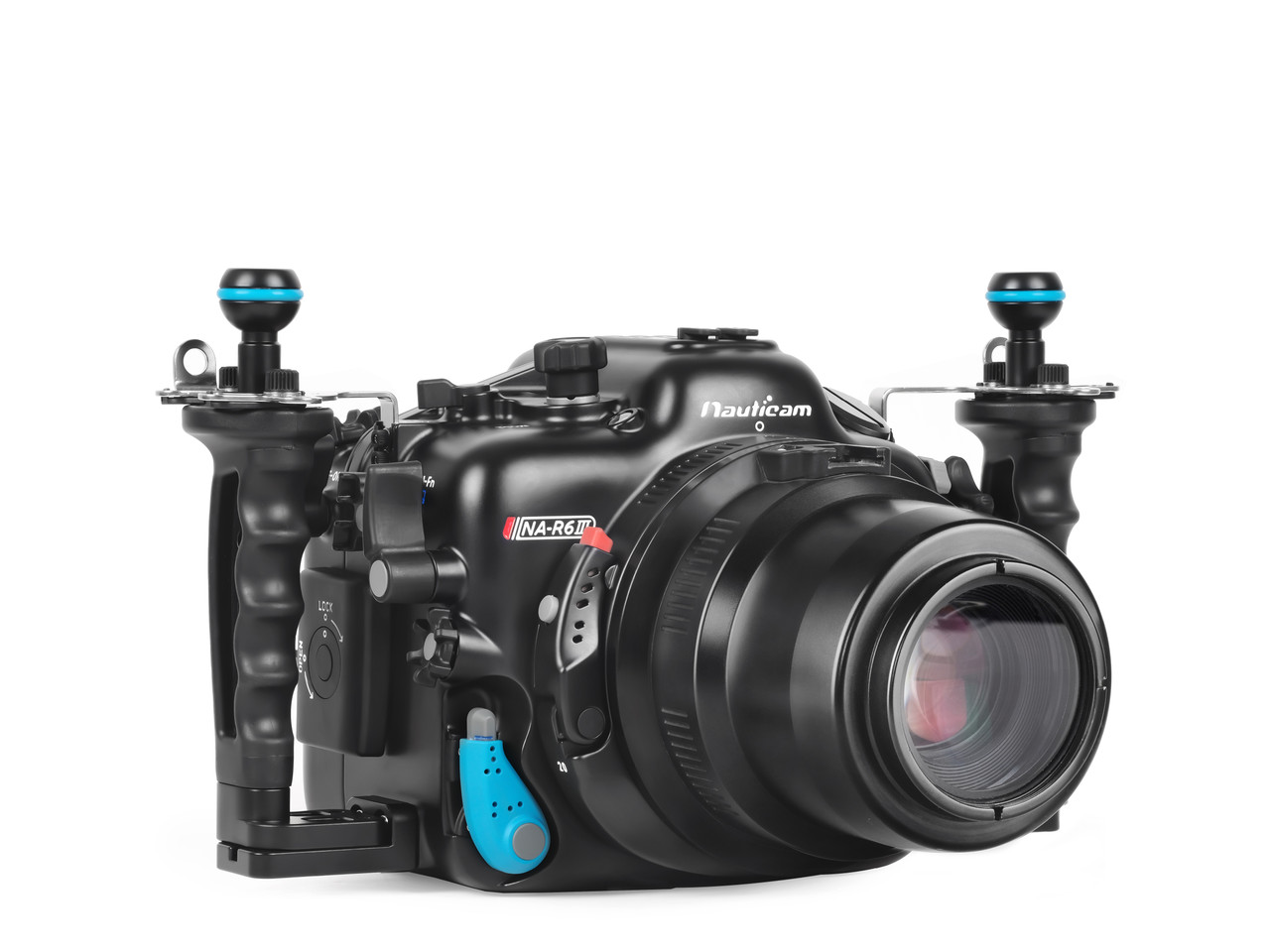

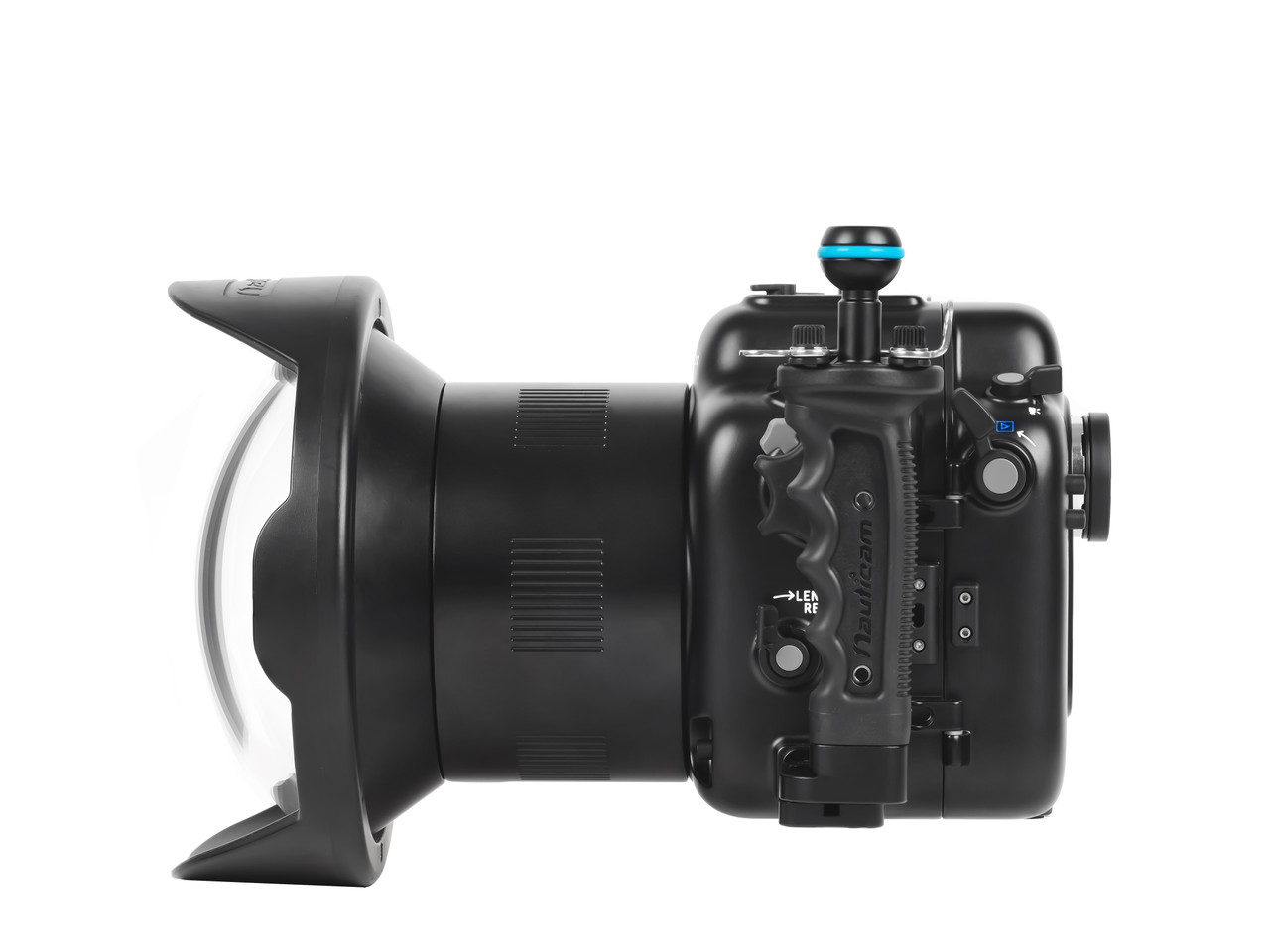

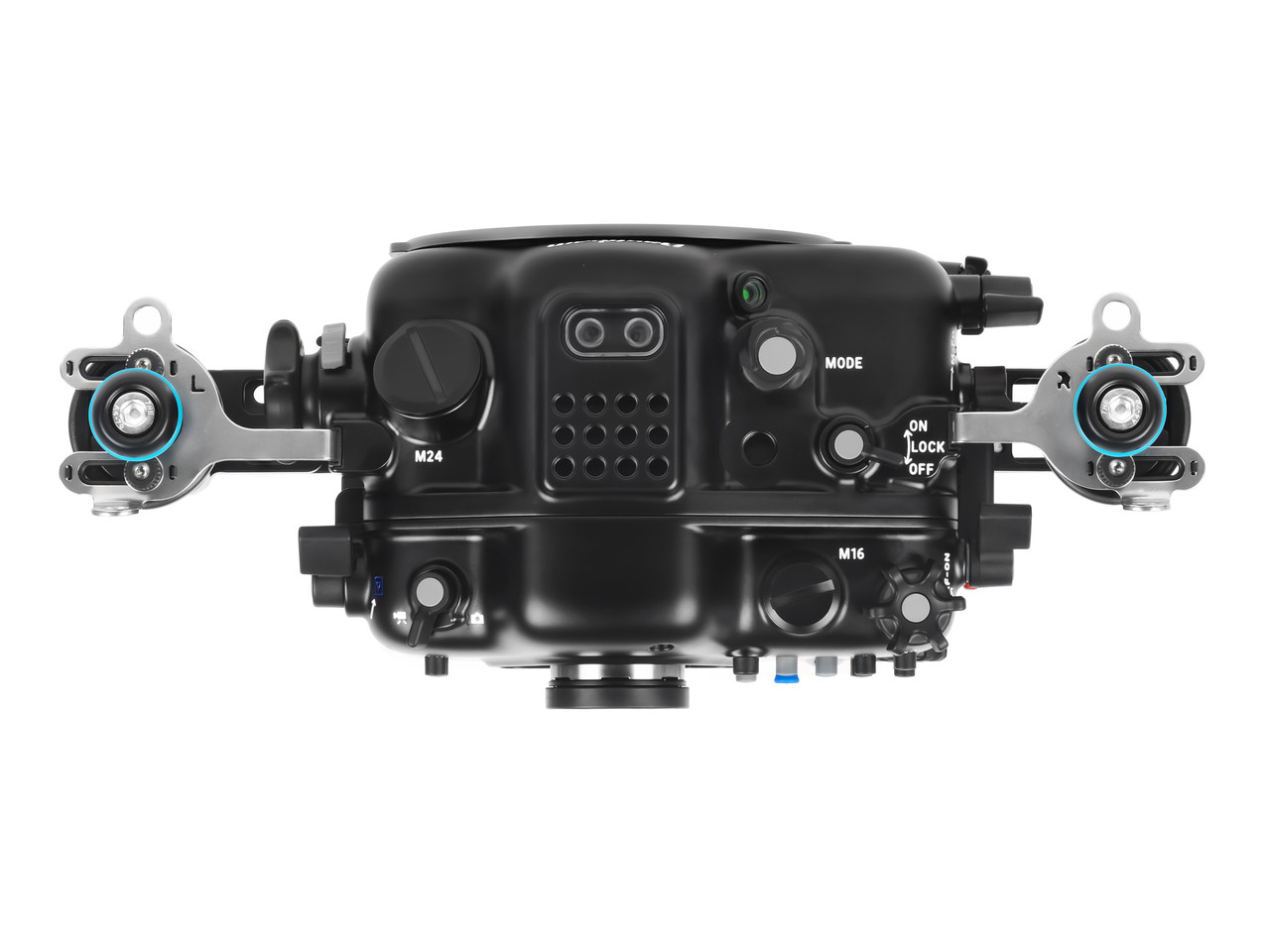

Nauticam NA-R6III Waterproof Housing for Canon R6 Mark III Camera #17345
The new Nauticam NA-R6III Waterproof Housing is the ideal setup for users who want to produce both high quality video and stunning stills.
Key Features
- Nauticam's ergonomic focused design puts key controls at your fingertips
- Integrated handles with ball mounts provide a stable grip and platform for your strobes
- Durable Aluminium housing rated to 100 meters
A dual tray and handles are include with ball mounts for strobes and other accessories. We recommend the addition of the Nauticam M16 vacuum valve II so that you can check the integrity of your system before getting into the water.
The Canon EOS R6 Mark III Mirrorless Camera
The Canon R6 Mark III is an advanced mirrorless camera suited to hybrid shooters. Capture breathtaking images with its sharp 32.5MP full-frame sensor and fast autofocus system.
The R6 III boasts continuous shooting at up to 40 frames per second, ensuring you never miss a fleeting moment. Effortlessly record 4K Ultra HD videos at up to 120p for cinematic quality that will impress your audience.
17345 NA-R6III Housing for Canon EOS R6III Camera
Specification:
Dimensions: 332mm (W) x 189mm (H) x 141mm (D)
Weight in air: TBD
Buoyancy in water: TBD
Depth Rating: 100m
Port System: N120 Canon RF-Mount II (for C50/R6III)
Port accessories: Front M24 x 1, Rear M16 x 1
Handles and stabilizing brackets: Pre-installed
HDMI support: HDMI 1.4 / 2.0
Compatible Cameras: Canon EOS R6III Camera
Compatible lenses:
- RF Lenses with RF Lens Gear System II (PN: 19630 ~ 19637)
- EF Lenses with Canon mount adaptor EF to EOS R*
*Zoom/focus gear for EF lenses are MOD items
Canon Control Ring/Drop-in with V-ND Filter mount adaptor is unsupported
What’s in thebox:
- NA-R6III Housing
- Housing Cap
- 2x Plugs for Optical fiber cable mount
- 2x Handles with mounting balls and 2x handle brackets
- Panasonic CR-2032 Battery (pre-installed for moisture alarm)
- Spare main O-ring, O-ring remover and lubricant
- Set of Allen Keys
- Padded housing bag and shoulder strap
Features:
- N120 Port Lock II with blue Lever
(Support to install Extension/Port and lock automatically when the port lock lever is closed)
- Rotary housing lock, same as NA-R6II
- Dedicated RF mount Lens REL lever
- Double Lever for M-Fn and REC on the front right side
- AF-ON Lever on the rear right side, Playback Lever on the rear left side.
- 1x M10 threaded hole (mounting points for external monitor)
- 12x 1/4-20 threaded holes (for optional accessories)
Housing O-rings:
90137 Housing o-ring (I.D.=170mm, C.S.=2.5mm)
Optical Trigger
26305 mini Flash trigger for Fujifilm/Canon
26321 TTL Flash Trigger for Canon
*26216 Universal Optical Fiber Cable is required.
Electrical Trigger
25017 M14 6 pin bulkhead for Canon system
25020 Canon hotshoe plug to a M14 Nikonos bulkhead (x and ground connection only)
26326 M24-M16 Adaptor for use with 26325
Recommended Accessories:
Housing Mount
17959 Housing Mounting ball with 1/4'' screws
25221 M10 strobe mounting ball for housing
25224 M10 strobe mounting ball for housing (with hole for using with lanyard)
25218 Mounting ball set for tripod
Vacuum Valve
25625 M16 Vacuum Valve II (Pushbutton Release)
Lanyard
25413 27cm lanyard with 2 snap hooks
Viewfinder
32211 Nauticam Full Frame Straight Viewfinder 32°/ 1:1
32212 Nauticam Full Frame Straight Viewfinder 40°/ 0.8:1
32213 Nauticam Full Frame Angle Viewinder 32°/ 1:1
32214 Nauticam Full Frame Angle Viewinder 40°/ 0.8:1
87213 Reverse Angled Viewfinder for EMWL（40°/ 0.8:1）
87214 Reverse Straight Viewfinder for EMWL （40°/ 0.8:1）
87215 Reverse Angled Viewfinder for EMWL（32°/ 1:1）
87216 Reverse Straight Viewfinder for EMWL （32°/ 1:1）
*32212/32214 is preferred.
Surface USB-PD Power bank
26325 USB-C Bulkhead with USB-C Connector
26326 M24-M16 Adaptor for use with 26325
HDMI OUTPUT:
- Required accessories for HDMI 2.0 Cable System
25086 M24 adaptor for HDMI 2.0 cable (incl. tightening tool)
25099 M24A2R200-M28A1R170 HDMI 2.0 Cable (for NA-a1 to use with Ninja V housing) TBD
Compatible Monitor Options:
17922 Nauticam Atomos Ninja V Housing for Atomos Ninja V 5” 4Kp60 4:2:2 10-bit
Reorder/Monitor/Player (excl. HDMI 2.0 cable)
17922S Nauticam Atomos Ninja V-S Housing for Atomos Ninja V 5” 4Kp60 4:2:2 10-bit
Reorder/Monitor/Player (excl. HDMI 2.0 cable) with Atomos AtomX SDI Module
- Required accessories for HDMI 1.4 Cable System
25033 Standard HDMI bulkhead with M16 thread
26326 M24-M16 Adaptor for use with 26325 *instead of existing 25081
25100 HDMI (D-A) 1.4 Cable in 200mm length for NA-a1 (for connection from HDMI
bulkhead to camera)TBD
*25033 is included in 17923 monitor housing
Compatible Monitor Options:

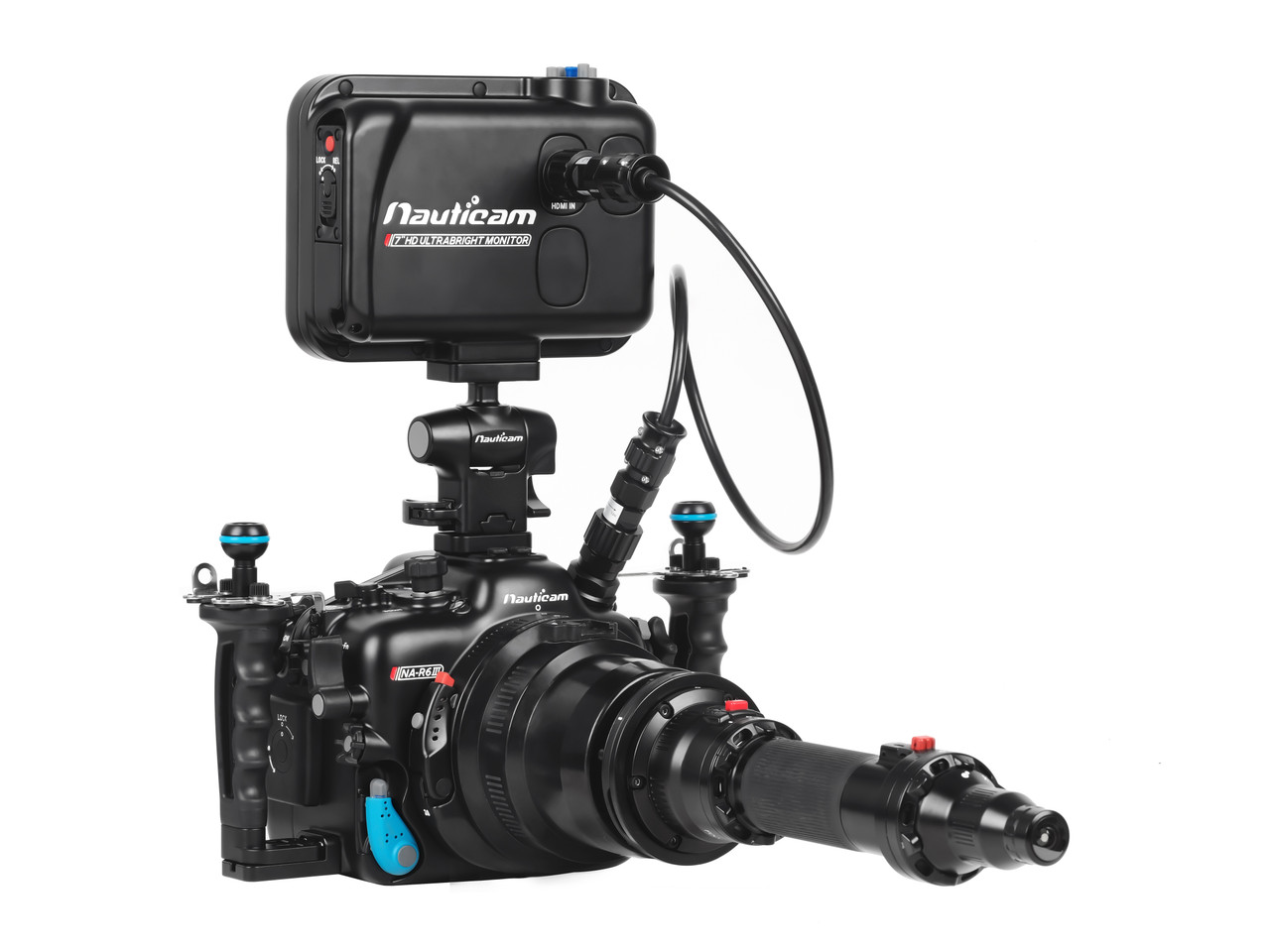

16611 Nauticam 7'' G7 UW ULTRAHD Monitor (4K HDMI, 2K SDI input, excl. cables)
16612 Nauticam 7'' T7 UW ULTRAHD Monitor (HDMI 1.4 input, excl. cables)
25047 HDMI (D-D) cable in 800mm length (for connection between HDMI bulkheads)
*25047 is Required for use with 16611/16612.
17927 NA-Shinobi II Housing for Atomos Shinobi II 5.2" Monitor with HDMI 1.4 input
*17927 includes 25033, 25038 and 25100.
17922 Nauticam Atomos Ninja V Housing for Atomos Ninja V 5” 4Kp60 4:2:2 10-bit Reorder/Monitor/Player
(excl. HDMI 2.0 cable)
25082 HDMI 1.4 Cable for Ninja V Housing in 0.75m Length
(for connection from Ninja V housing to HDMI Bulkhead)
*25082 is Required for use with 17922 monitor housing
Required Monitor Mounting system
17954 Tripod plate for NA-A7S and NA-GH4
17960 Universal Quadra-Pod Plate for Nauticam Housings
17961 Swivel and Tilt Adjustable Monitor Mount System (compatible with 16612/17927/17922 etc.)
Wet Lenses:
Macro
81202 Super Macro Convertor 2 (4x Magnification)
81203 Super Macro Convertor 3 (2.3x Magnification)
81301 Compact Macro Convertor 1 (CMC-1, 4.5x Magnification)
81302 Compact Macro Convertor 2 (CMC-2, 2.8X Magnification)
81501 Mid-range Focus Optimizer 1
81503Mid-range Focus Optimizer 3
Wide Angle
83202 Wet Wide Lens 1B (WWL-1B) 130 deg. FOV with compatible 28mm lenses
(incl. float collar)
83203 Wet Wide Lens Compact (WWL-C) 130 Deg. FOV with Compatible 24mm Lenses
85204 Wide Angle Conversion Port - 2 (WACP-2) 140 Deg. FOV with Compatible 14mm Lenes (incl. float collar)
85025 N100 0.36x Wide Angle Conversion Port Compact (WACP-C)
85206 N120/N100 0.36x Wide Angle Conversion Port with Integrated Float Collar and Interchangeable
Port Mounting Ring - (WACP-1B)
85207 N120/N100 Fisheye Conversion Port with Integrated Float Collar (FCP) 170 Deg. FOV with Compatible
28mm Lenses
Macro to Wideangle
86201 Macro to Wideangle Lens 1 (MWL-1) 150 deg. FOV with full rame 60mm macro lens
87303 EMWL Set #3 (incl. focusing unit #3, 150mm relay lens and 3 objective lenses)
87203 EMWL Focusing Unit #3 (for Canon RF 100mm f2.8 Macro)
87211 EMWL 150mm Relay Lens
87212 EMWL Angled Relay Lens
87221 EMWL 60° Objective Lens
87222 EMWL 100° Objective Lens
87223 EMWL 130° Objective Lens
87226 EMWL 160° Objective Lens
Optional Accessories for using with Wet Lenses:

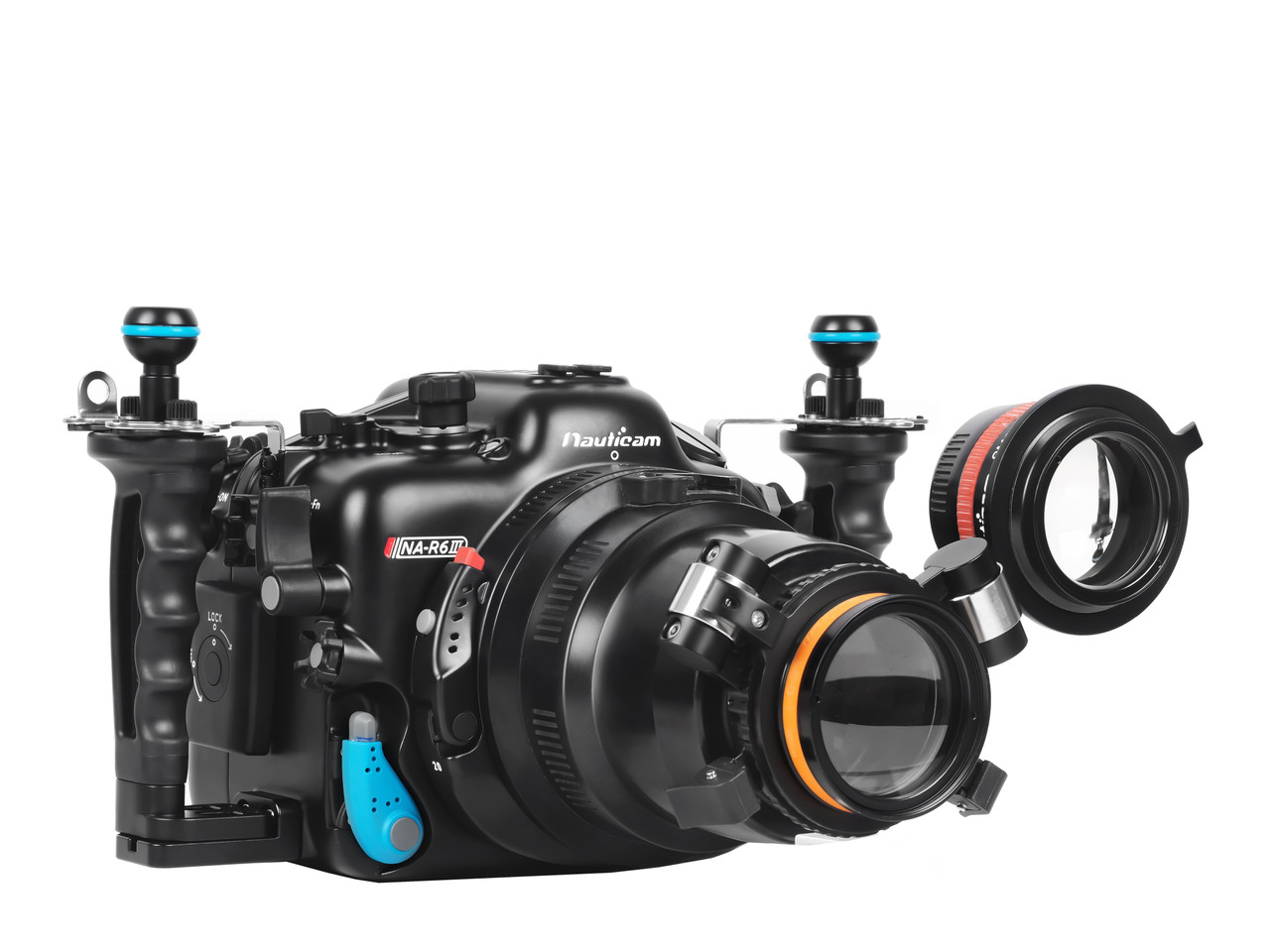

25101 M67 flip diopter holder for M67 macro ports
25108 M67 Double Flip Holder for M67 Macro Ports
83213 M67 to Bayonet Mount Converter II
83214 Bayonet Mount Adaptor for SMC/CMC
83250 M67 to Bayonet Mount Converter II
83251 M77 to Bayonet Mount Converter II
87501 Flip Holder for EMWL
87512 Shade for 130° Objective Lens
87513 Shade for 100° Objective Lens
87515 M67 Mount to EMWL Focusing Unit
87518 Strobe Mounting Brackets for EMWL Relay Lens
Buoyancy Recommendation for Housing Setups: (depending on port and lens choices)
72216 Ø70x200mm Carbon Fibre Aluminium Float Arm (Buoyancy 370g)
72217 Ø70x250mm Carbon Fibre Aluminium Float Arm(Buoyancy 520g)
72218 Ø70x300mm Carbon Fibre Aluminium Float Arm (Buoyancy 670g)
72219 Ø90x170mm Carbon Fibre Aluminium Float Arm (Buoyancy 450g)
72220 Ø90x220mmCarbon Fibre Aluminium Float Arm (Buoyancy 720g)
72233 Single Bayonet Holder II for Ø70 Float Arm
72234 Double Bayonet Holder II for Ø70 Float Arm
72243 Single Bayonet Holder II for Ø90 Float Arm
72244 Double Bayonet Holder II for Ø90 Float Arm
83252 Bayonet Holder for Arms
83253 Double Bayonet Holder for Arms
83254 Bayonet Lens Holder for Inon Float Arms
87516 EMWL Bayonet Holder for Ø70 Float Arm
87517 EMWL Bayonet Holder for Ø90 Float Arm
