Product Description

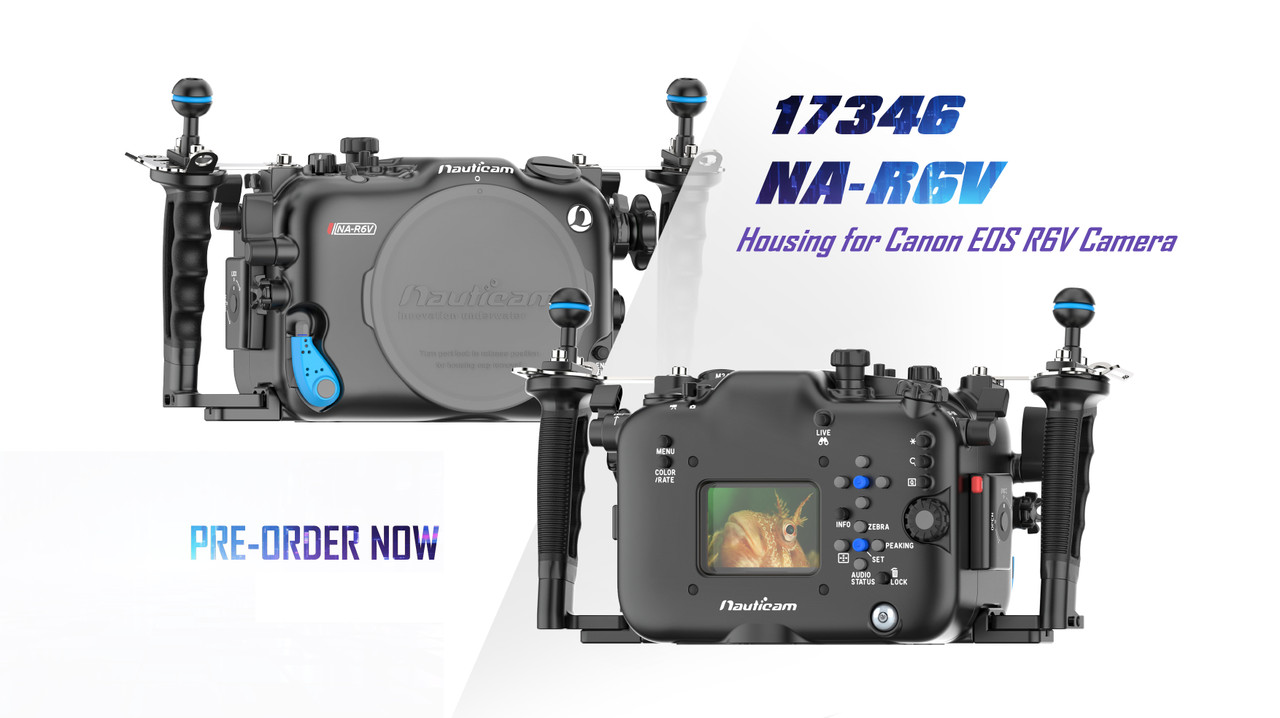

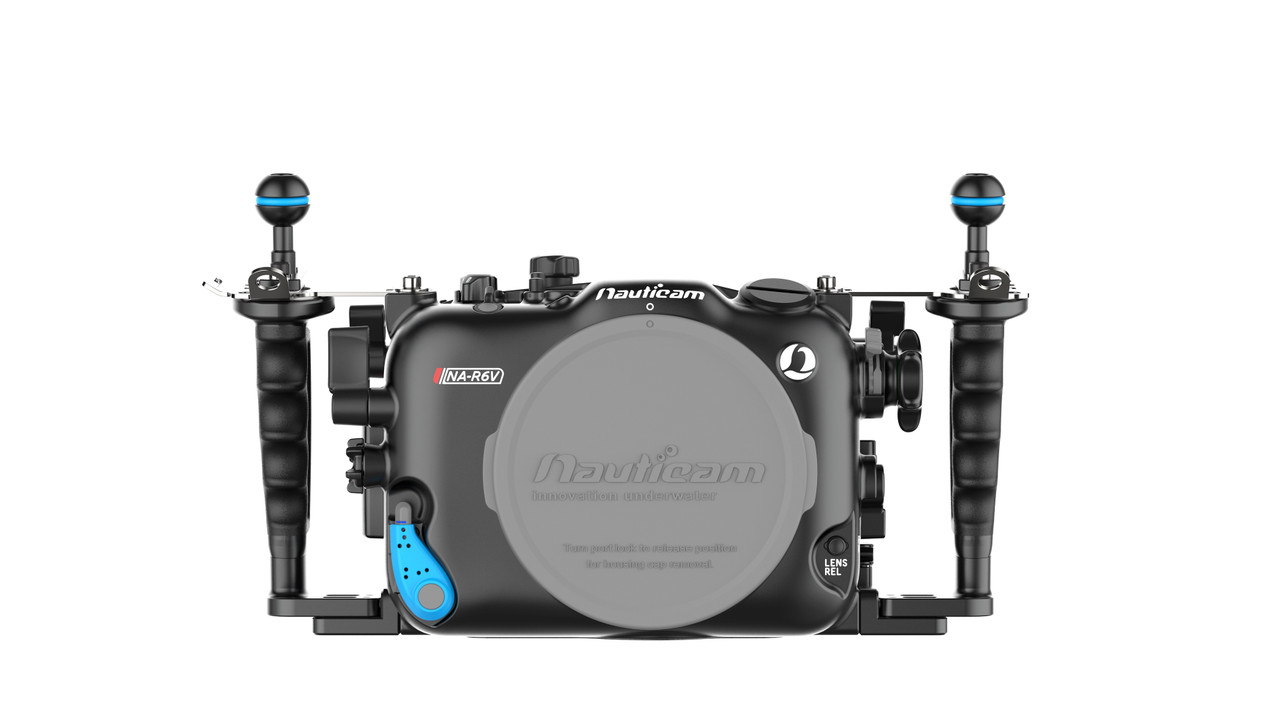

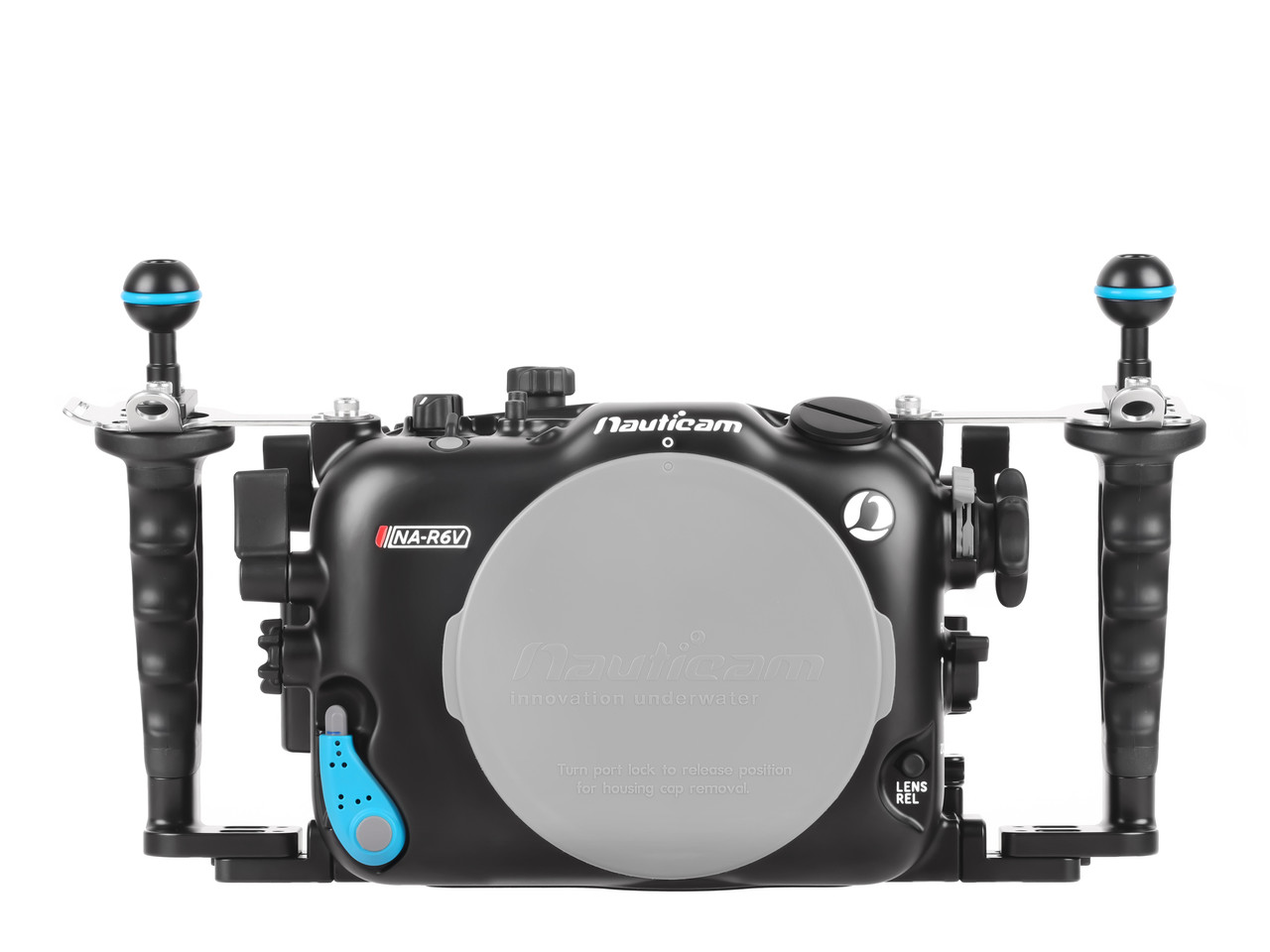

Nauticam NA-R6V Waterproof Housing for Canon R6V Camera #17346
The new Nauticam NA-R6V Waterproof Housing is the ideal setup for users who want to produce high quality video from a travel friendly full frame Canon System.
Key Features
- Nauticam's ergonomic focused design puts key controls at your fingertips
- Integrated handles with ball mounts provide a stable grip and platform for your strobes
- Durable Aluminium housing rated to 100 meters
A dual tray and handles are include with ball mounts for strobes and other accessories. We recommend the addition of the Nauticam M16 vacuum valve II so that you can check the integrity of your system before getting into the water.
17346 NA-R6V Housing for Canon EOS R6V Camera
Specification:
Dimensions (housing only): 358mm (W) × 201mm (H) × 134mm (D)
Weight in air: 2.96 kg
Buoyance in water: Neutral (includes camera and battery)
Depth Rating:100m
Accessories ports: Front M24 x 1 and M16 x 1, rear M16 x 1
Handles and stabilizing brackets: Pre-installed
HDMI support: HDMI 1.4 / 2.0
Compatible Cameras: Canon EOS R6V Camera
Port System: N120 RF Mount II (for C50/R6III/R6V)
Compatible lenses:
- RF Lenses with RF Lens Gear System II (PN: 19630 ~ 19648)
What’s in the box:
NA- R6V Housing
Housing Cap
2x Handles with mounting balls and 2x handle brackets
Panasonic CR-2032 Battery (pre-installed for moisture alarm)
Spare main O-ring, O-ring remover and lubricant
Set of Allen Keys
Padded housing bag and shoulder strap
Main Features:
- N120 Auto Lock Port System II (International Patent Pending)

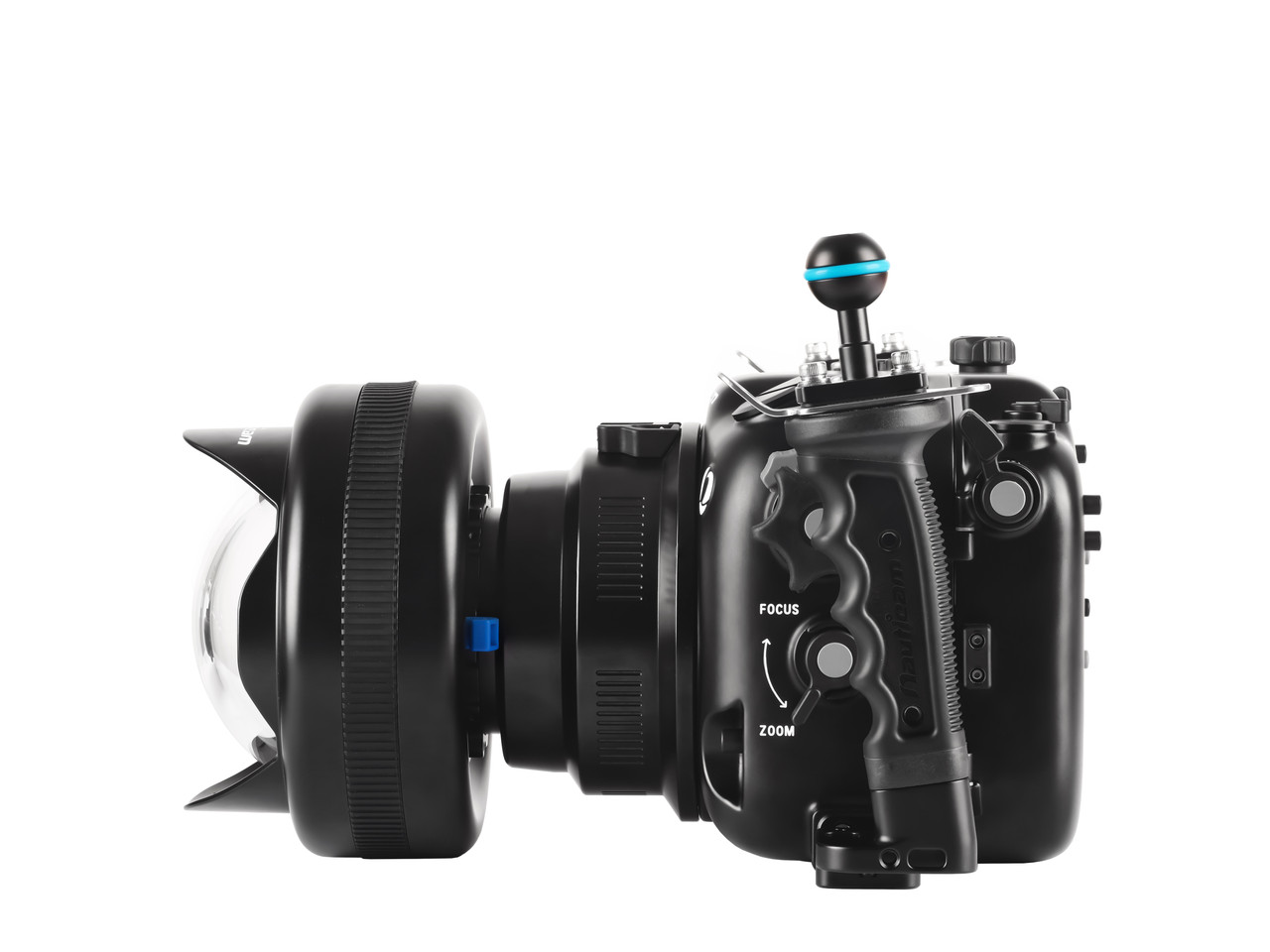

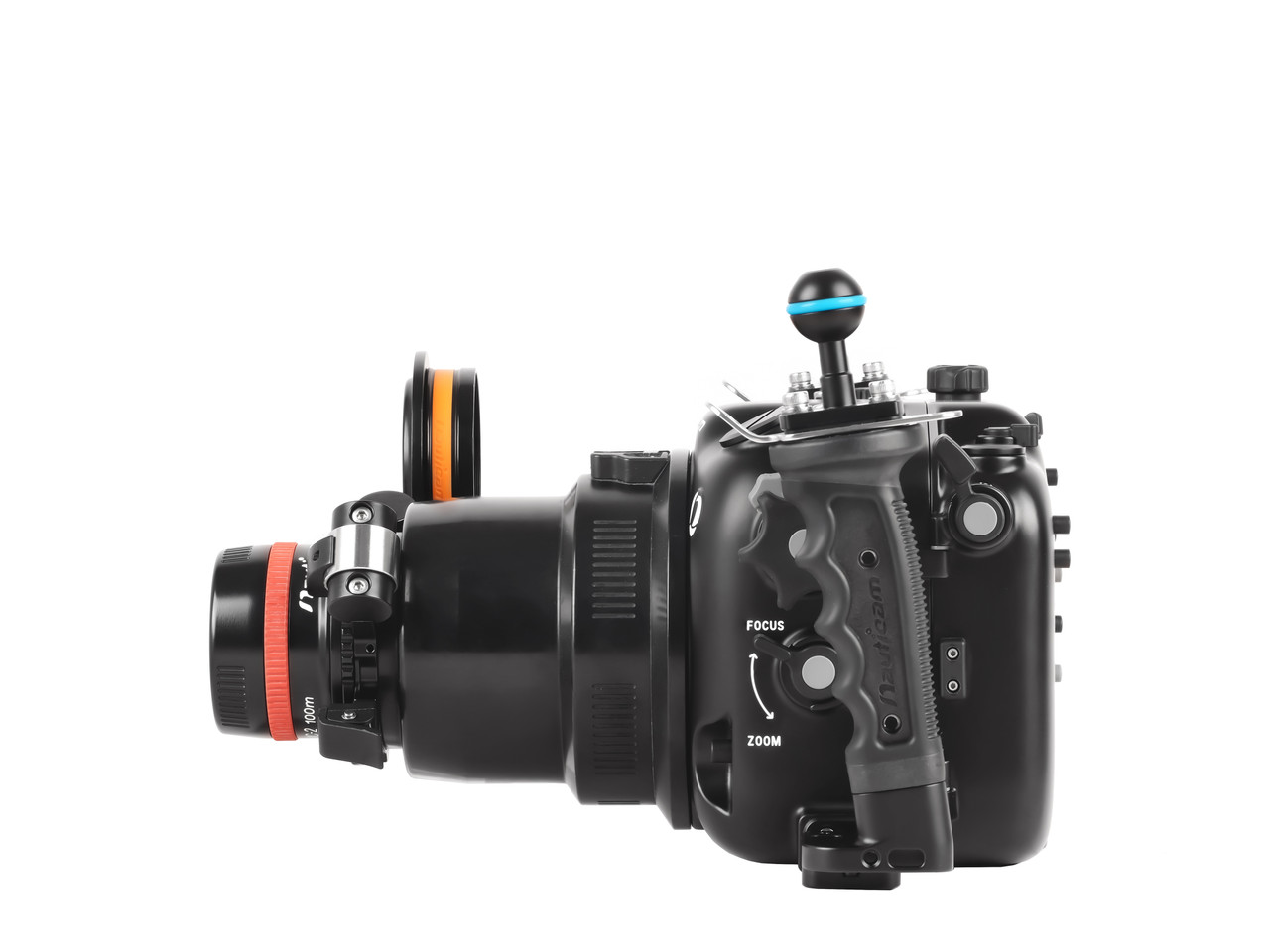

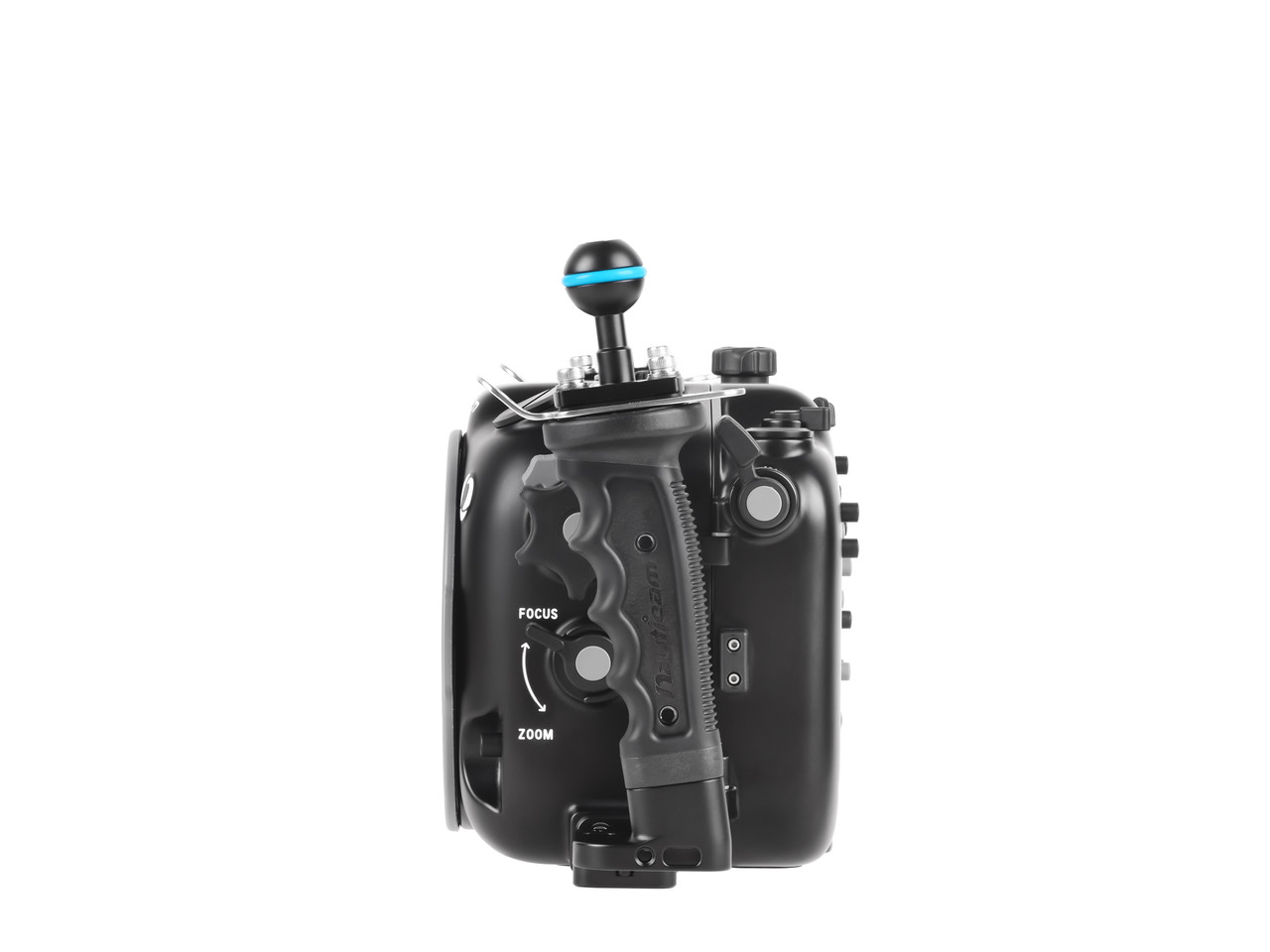

- Dual functions lens control knob for zoom and focus, switch in between by the lever below(Patent Pending)

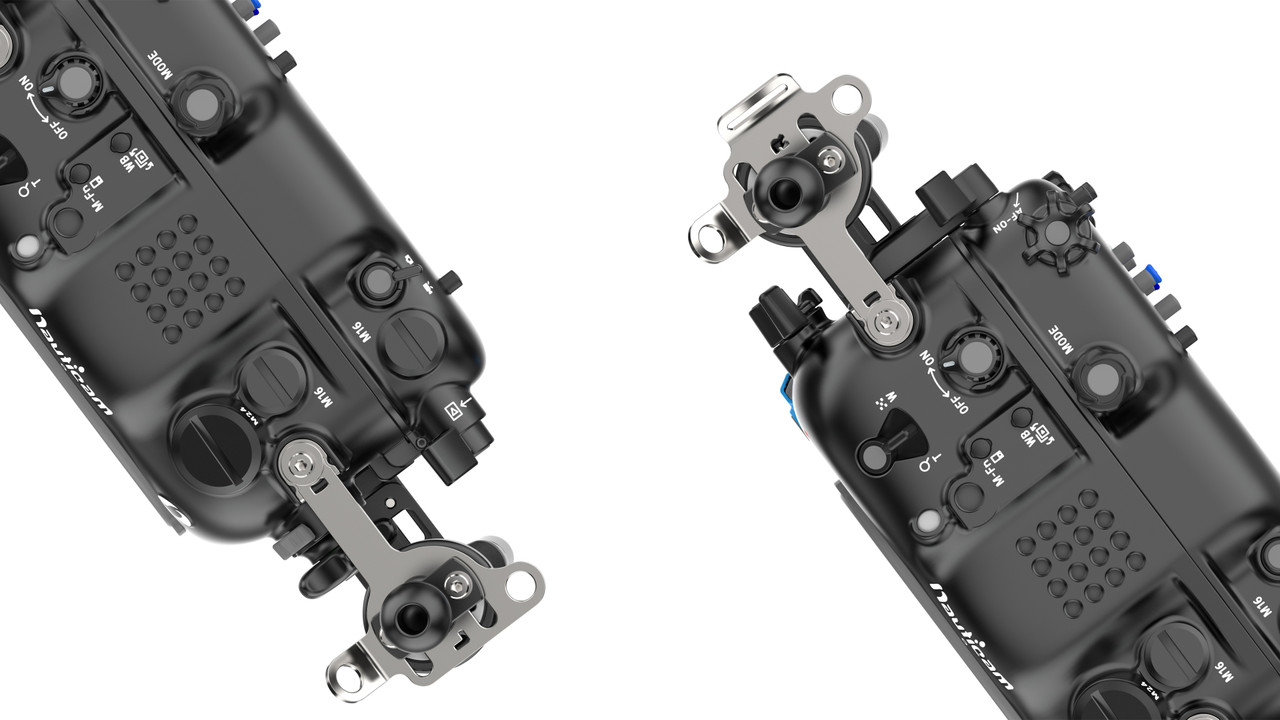

- MIL handles with Rotary Housing Lock.

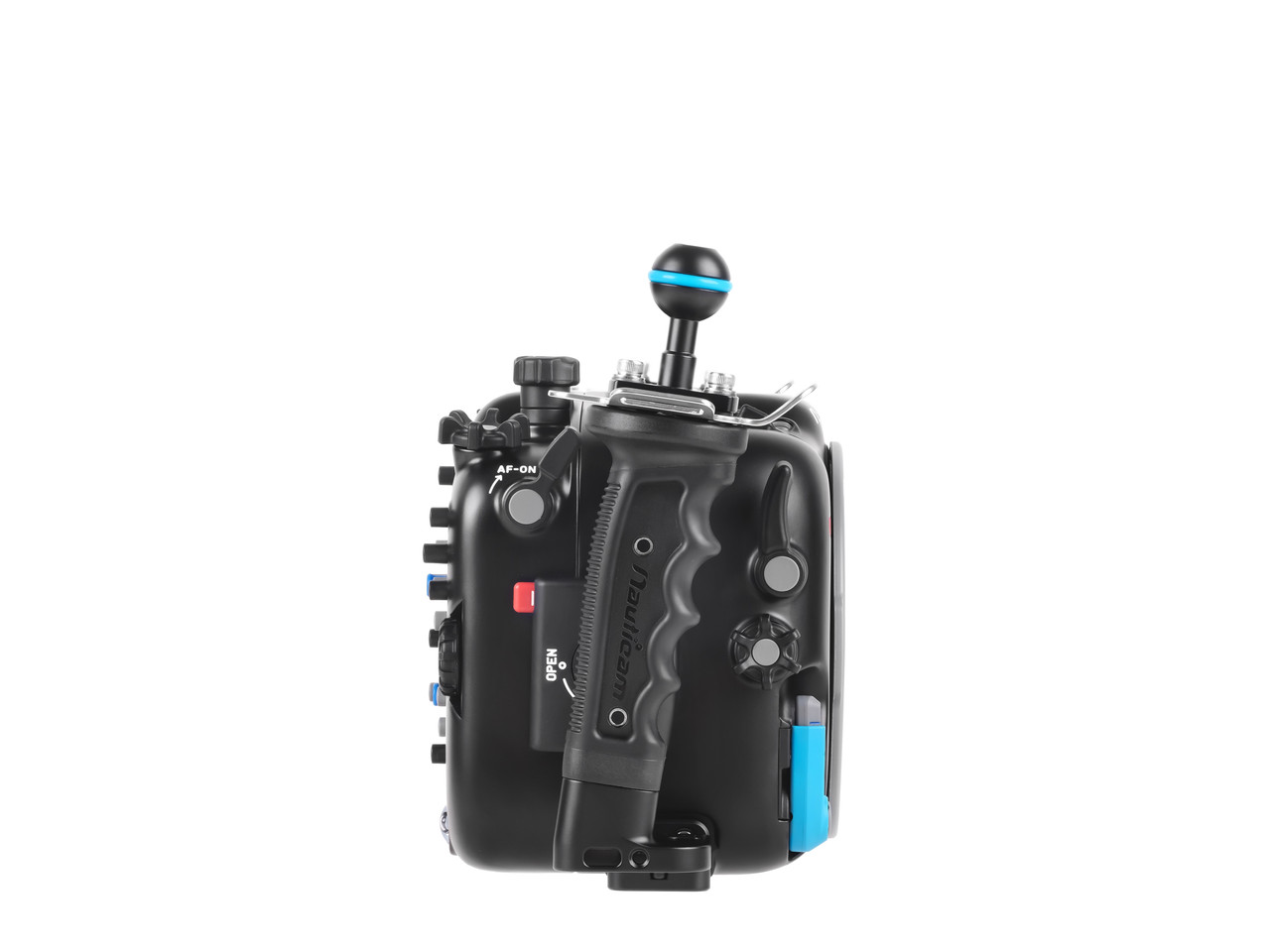

- AF-ON Lever on the rear right side, Playback Lever on the rear left side.
- Flash trigger or X-Sync for still shooting is unsupported.
- Moisture alarm and leak detector system
Mounting points:
- Front top: 16x 1/4-20 UNC (for 17959 mounting ball), 1x M10 thread hole
- Bottom: 3x 1/4-20 UNC (for tripod plate or skids), 6xM5 mounting points
(#25218 mounting ball set)
Main O-rings:
90137 Housing o-ring (I.D.=170mm, C.S.=2.5mm)
Recommended Accessories:
Housing Mount
17959 Housing Mounting Ball with 1/4'' Screws
25221 M10 strobe mounting ball for housing
25224 M10 strobe mounting ball for housing (with hole for using with lanyard)
25218 Mounting Ball Set for Tripod
25228 M5 strobe mounting ball for housing
Vacuum Valve
25625 M16 Vacuum Valve II (Pushbutton Release)
Lanyard
25413 27cm lanyard with 2 snap hooks
Surface USB-PD Power bank
26325 USB-C Bulkhead with USB-C Connector
26326 M24-M16 Adaptor for use with 26325(not necessary)

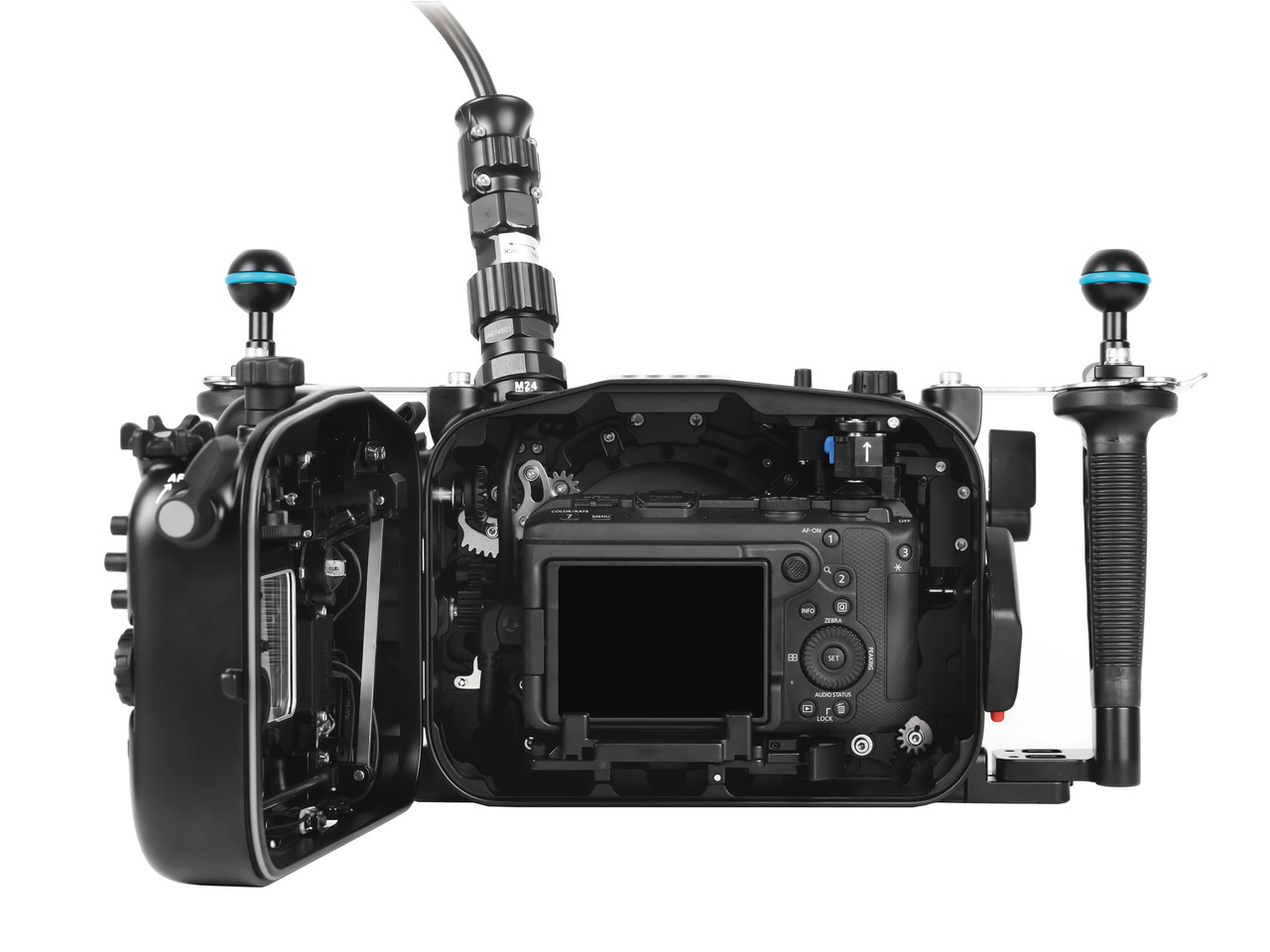

HDMI OUTPUT:
Accessories for HDMI 2.0 Cable System
25086 M24 adaptor for HDMI 2.0 cable (incl. tightening tool)
25099 M24A2R200-M28A1R170 HDMI 2.0 Cable (for NA-α1/GH6/A9III to use with Ninja V housing) *Not support to use with 26325 USB-C together.

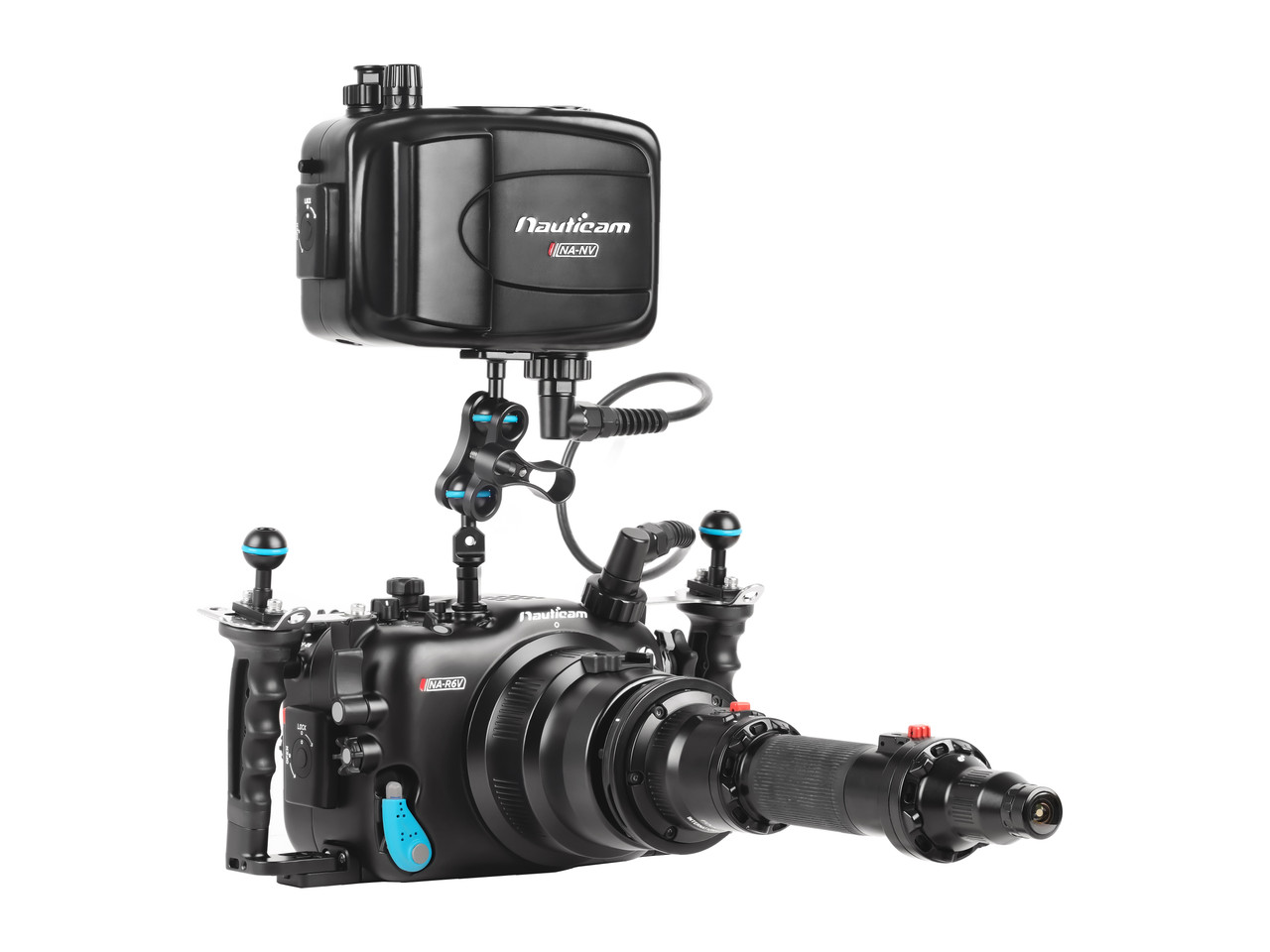

Monitor housing Options:
16613 Nauticam Atomos Ninja TX Housing for Atomos Ninja TX /TX O/ RAW Monitor
17922 Nauticam Atomos Ninja V Housing for Atomos Ninja V 5” 4Kp60 4:2:2 10-bit Reorder/Monitor/Player (excl. HDMI 2.0 cable)
17922S Nauticam Atomos Ninja V-S Housing for Atomos Ninja V 5” 4Kp60 4:2:2 10-bit Reorder/Monitor/Player (excl. HDMI 2.0 cable) with Atomos AtomX SDI Module
Accessories for HDMI 1.4 Cable System
25033 Standard HDMI bulkhead with M16 thread
26326 M24-M16 Adaptor for use with 26325
25100 HDMI (D-A) 1.4 Cable in 200mm length for NA-a1/FX3/GH6 (for connection from HDMI bulkhead to camera) *Not support to use with 26325 USB-C together.
Or 25075 HDMI (D-A) Cable in 190mm Length for NA-GH5/G9 (for internal connection from HDMI bulkhead to camera) *Support to use with 26325 USB-C together.
Monitor housing Options:
16611 Nauticam 7'' G7 UW ULTRAHD Monitor (4K HDMI, 2K SDI input, excl. cables)
16612 Nauticam 7'' T7 UW ULTRAHD Monitor (HDMI 1.4 input, excl. cables)
25047 HDMI (D-D) cable in 800mm length (for connection between HDMI bulkheads)
*25047 is required for use with 16611/16612.
17927 NA-Shinobi II Housing for Atomos Shinobi II 5.2" Monitor with HDMI 1.4 input
*17927 includes 25033, 25038 and 25100.
Monitor Mounting system
17951 Nauticam Atomos Shogun housing mounting system
17954 Tripod plate for NA-A7S and NA-GH4
17957 Nauticam Monitor Housing Mounting Adaptor
17960 Universal Quadra-Pod Plate for Nauticam Housings
17961 Swivel and Tilt Adjustable Monitor Mount System
(compatible with 16612/16613/17927/17922 etc.)
Wet Lenses:
Macro
81202 Super Macro Convertor 2 (4x Magnification)
81203 Super Macro Convertor 3 (2.3x Magnification)
81301 Compact Macro Convertor 1 (CMC-1, 4.5x Magnification)
81302 Compact Macro Convertor 2 (CMC-2, 2.8X Magnification)
81501 Mid-range Focus Optimizer 1
81503Mid-range Focus Optimizer 3

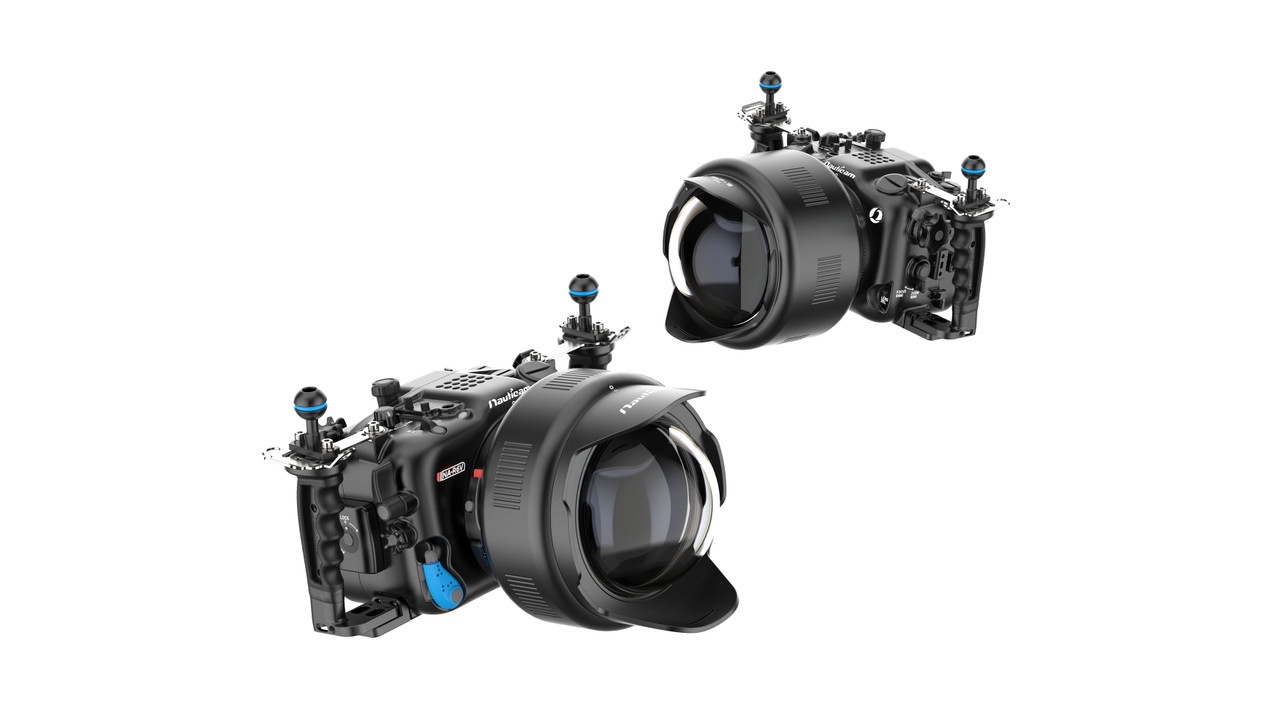

Wide Angle
83202 Wet Wide Lens 1B (WWL-1B) 130 deg. FOV with compatible 28mm lenses
(incl. float collar)
83203 Wet Wide Lens Compact (WWL-C) 130 Deg. FOV with Compatible 24mm Lenses
85204 Wide Angle Conversion Port - 2 (WACP-2) 140 Deg. FOV with Compatible 14mm Lenes (incl. float collar)
85205 N100 0.36x Wide Angle Conversion Port Compact (WACP-C)
85206 N120/N100 0.36x Wide Angle Conversion Port with Integrated Float Collar and
Interchangeable Port Mounting Ring - (WACP-1B)
85207 N120/N100 Fisheye Conversion Port with Integrated Float Collar (FCP) 170 Deg.
FOV with Compatible 28mm Lenses
Macro to Wideangle
86201 Macro to Wideangle Lens 1 (MWL-1) 150 deg. FOV with full rame 60mm macro lens
87303 EMWL Set #3 (incl. focusing unit #3, 150mm relay lens and 3 objective lenses)
87203 EMWL Focusing Unit #3 (for Canon RF 100mm f2.8 Macro)
87211 EMWL 150mm Relay Lens
87212 EMWL Angled Relay Lens
87221 EMWL 60° Objective Lens
87222 EMWL 100° Objective Lens
87223 EMWL 130° Objective Lens
87226 EMWL 160° Objective Lens

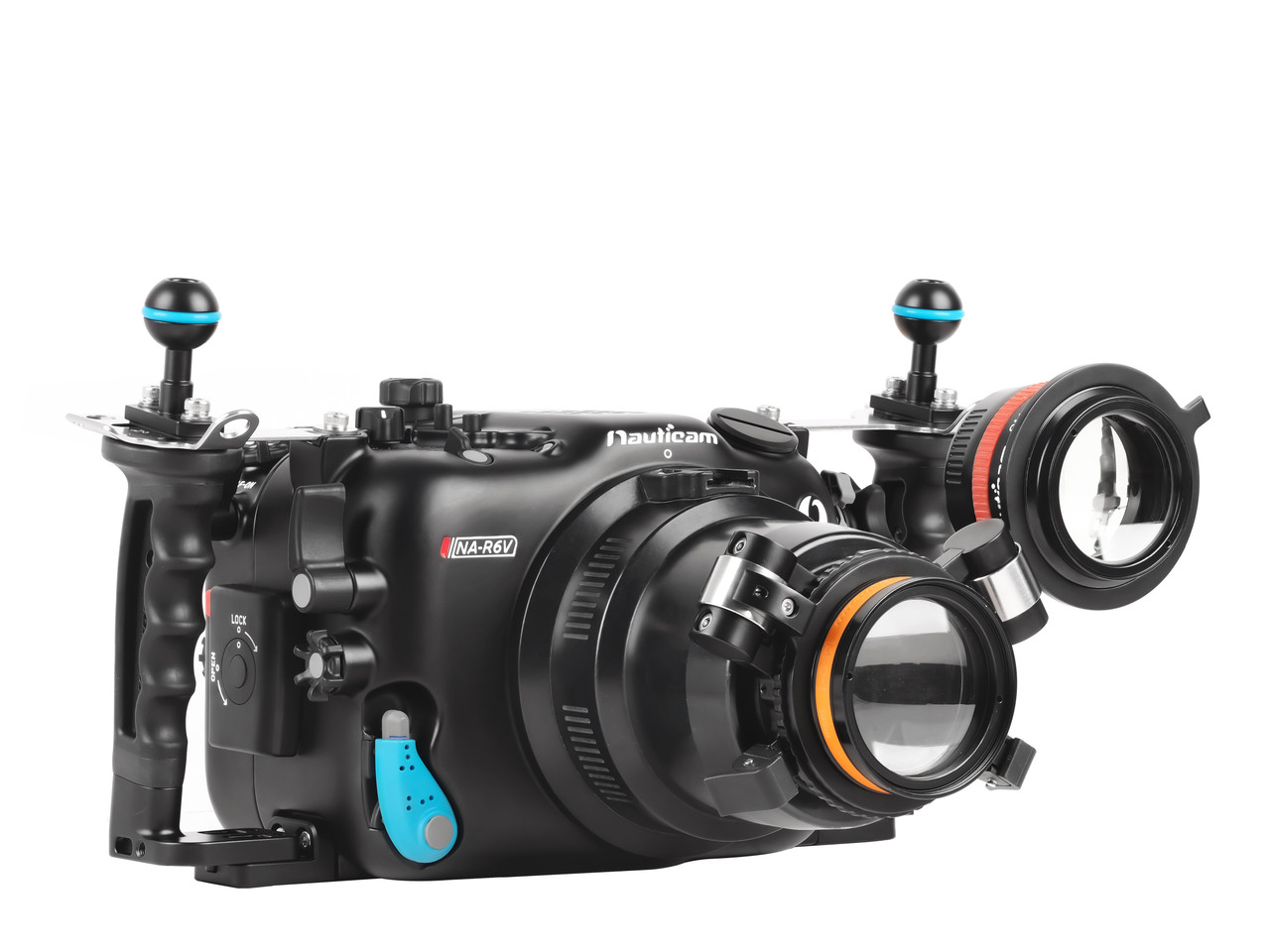

Optional Accessories for using with Wet Lenses:
25101 M67 flip diopter holder for M67 macro ports
25108 M67 Double Flip Holder for M67 Macro Ports
83250 M67 to Bayonet Converter II
83251 M77 to Bayonet Converter II
83214 Bayonet Mount Adaptor for SMC/CMC
86221 M67 Flip holder for MWL-1
86222 Double Flip Holder for MWL-1
87501 Flip Holder for EMWL
87512 Shade for 130° Objective Lens
87513 Shade for 100° Objective Lens
87516 EMWL Bayonet Holder for Ø70 Float Arm
87517 EMWL Bayonet Holder for Ø90 Float Arm
87518 Strobe Mounting Brackets for EMWL Relay Lens

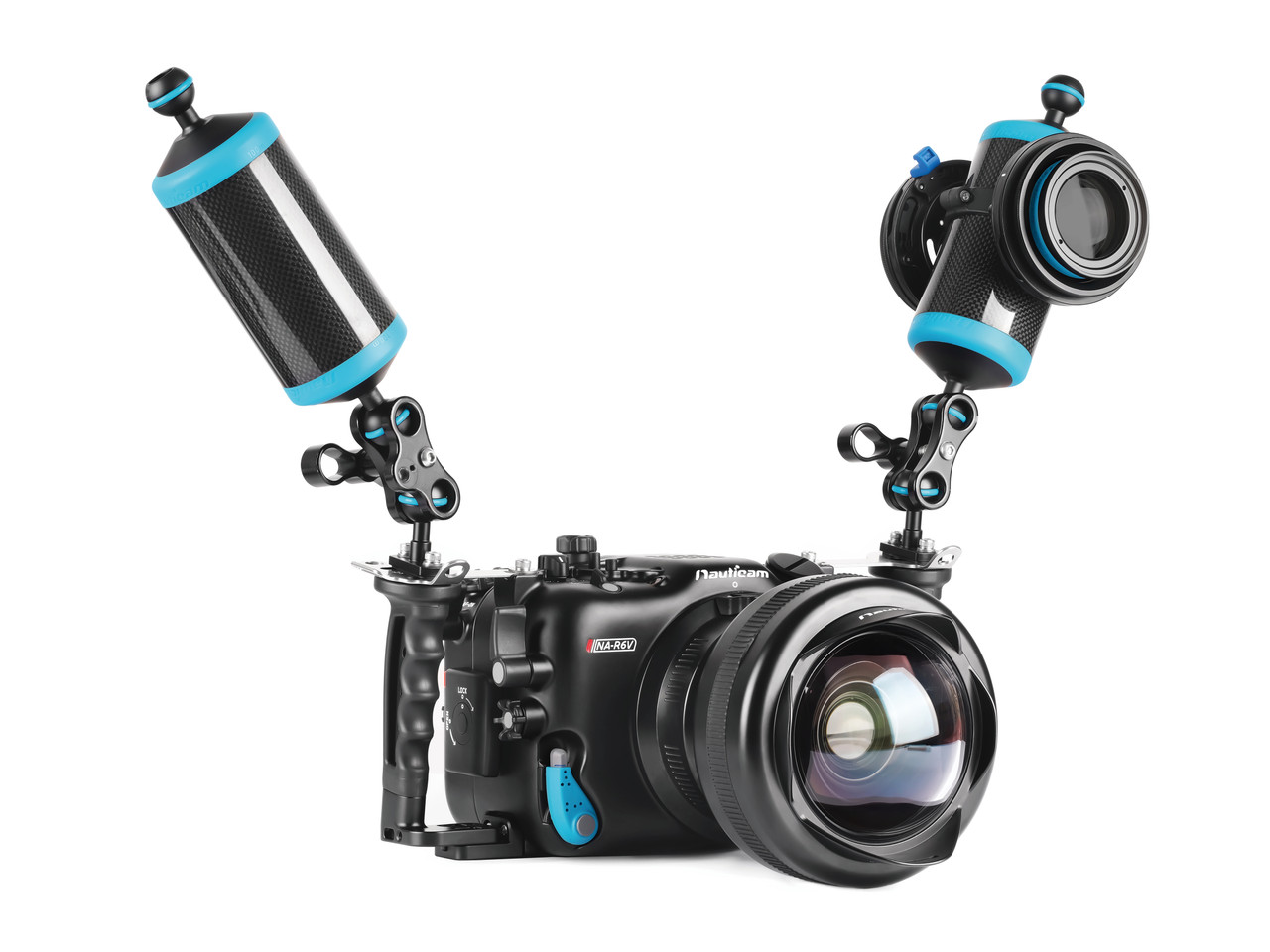

Buoyancy Recommendation for Housing Setups: (depending on port and lens choices)
72261 Ø70x200mm Carbon Fibre Aluminium Float Arm (Buoyancy 370g)
72262 Ø70x250mm Carbon Fibre Aluminium Float Arm(Buoyancy 520g)
72263 Ø70x300mm Carbon Fibre Aluminium Float Arm (Buoyancy 670g)
72264 Ø90x170mm Carbon Fibre Aluminium Float Arm (Buoyancy 450g)
72265 Ø90x220mmCarbon Fibre Aluminium Float Arm (Buoyancy 720g)
72266 Ø50x200mm Carbon Fibre Aluminium Float Arm (Buoyancy 160g)
72267 Ø50x250mm Carbon Fibre Aluminium Float Arm (Buoyancy 240g)
72268 Ø50x300mm Carbon Fibre Aluminium Float Arm (Buoyancy 320g)
72233 Single Bayonet Holder II for Ø70 Float Arm
72234 Double Bayonet Holder II for Ø70 Float Arm
72243 Single Bayonet Holder II for Ø90 Float Arm
72244 Double Bayonet Holder II for Ø90 Float Arm
83252 Bayonet Holder for Arms
83253 Double Bayonet Holder for Arms
83254 Bayonet Lens Holder for Inon Float Arms
87516 EMWL Bayonet Holder for Ø70 Float Arm
87517 EMWL Bayonet Holder for Ø90 Float Arm
