Product Description

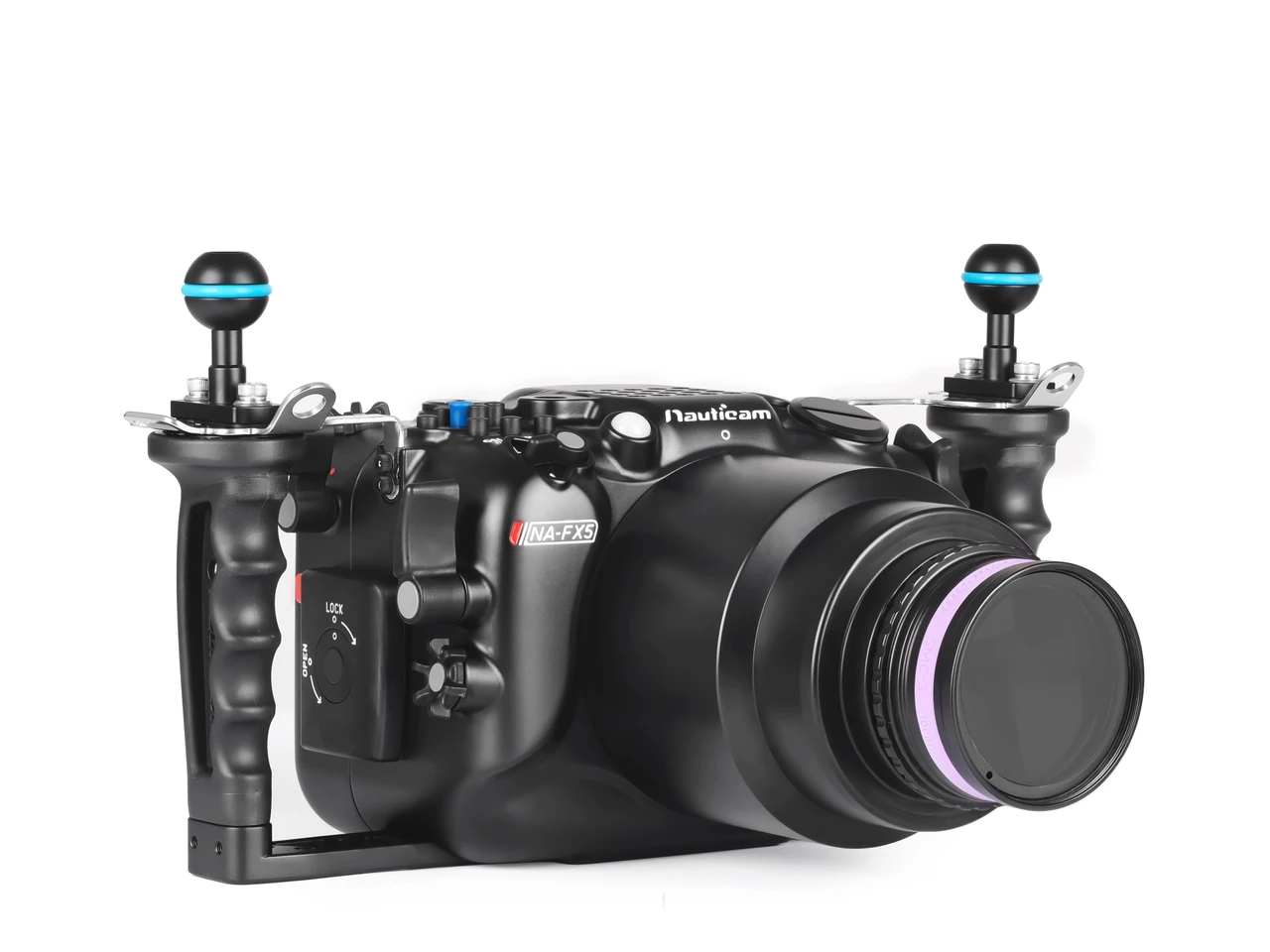

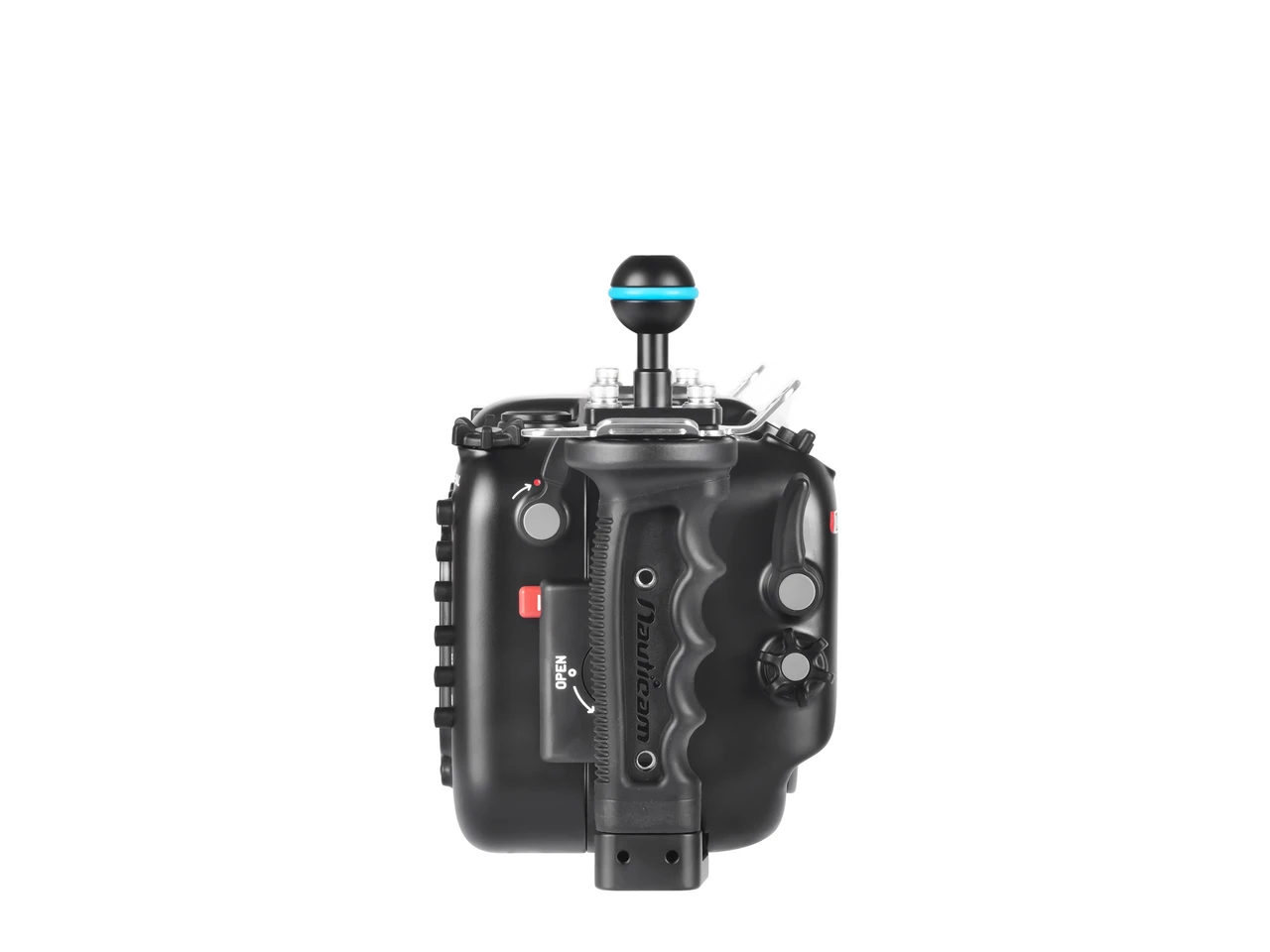

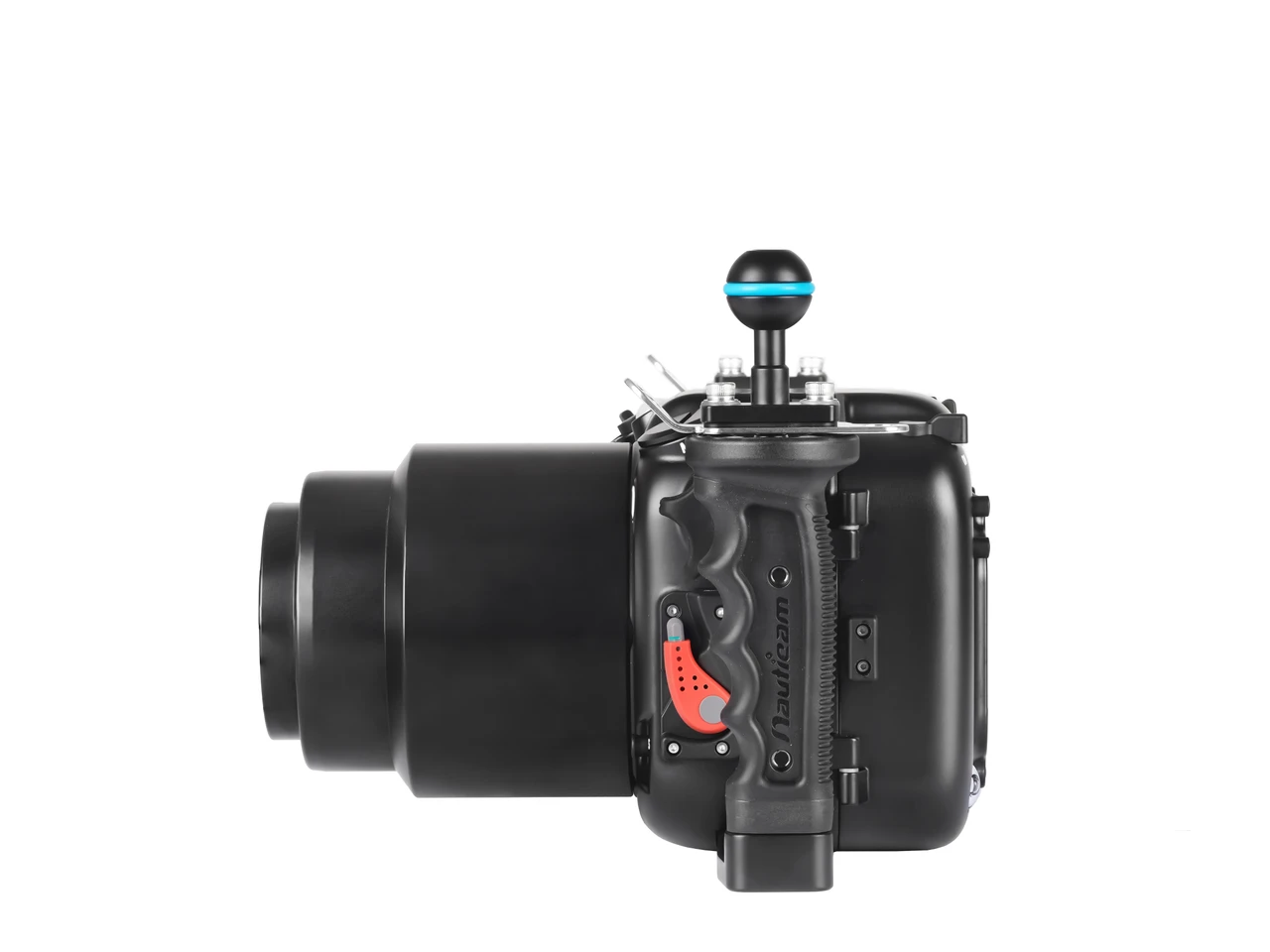

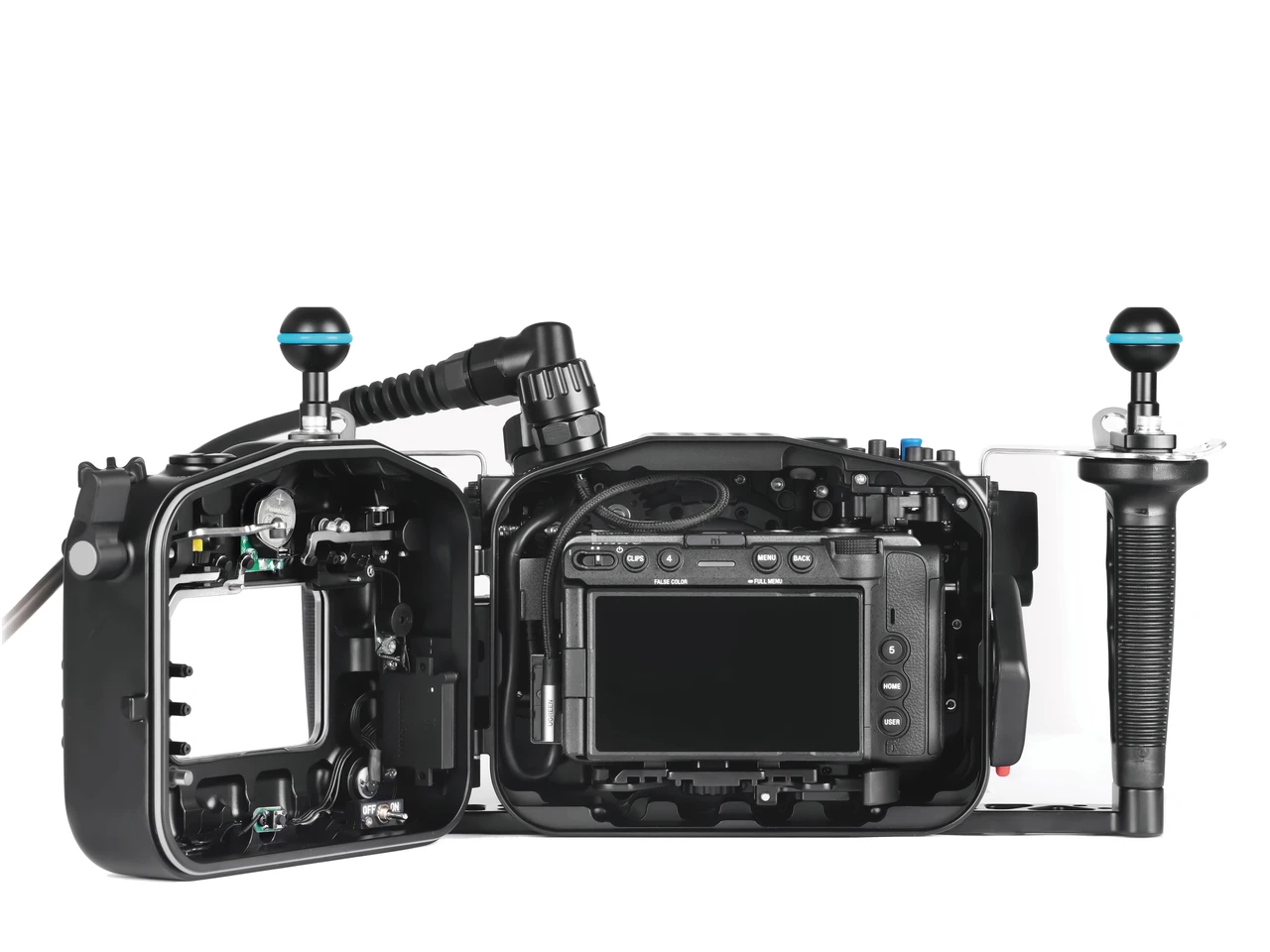

Nauticam FX5 Housing for Sony FX5 Full frame Cinema Camera #17441
Specification:
Dimensions: 320mm (W) x 184 mm (H) x 124 mm (D)
Weight in air: TBA kg
Weight in water: TBA kg (includes camera and battery )
Depth rating: 100m
Accessory ports: front M24 x 1 and M16x1 , rear M16 x 1
Vacuum valve: 25625 M16 Vacuum Valve II (Optional)
Port mount: N100
Manual flash trigger: Un-support
Handle and stabilizing brackets: Pre-installed
HDMI support: HDMI 2.0 / 1.4
Compatible cameras: Sony FX5
What’s in thebox:
- NA-FX5 Housing
- Housing Cap
- O-ring remover and lubricant
- 2x Handles with mounting balls
- Panasonic CR-2032 Battery
- Set of Allen Keys
- Padded housing bag and shoulder strap
Main Features:
- Compact design with N100 Port Lock and Rotary Housing Lock, same as NA-FX3.
- REC Lever on the rear right side, clickable Multi-functional dial, Other functions are accessible. (excl. front Fn6/REC).
- Mounting points: 20x 1/4’’-20 threaded holes, 1x M10 threaded holes.
Housing O-rings:
90136 Housing O-ring (I.D.=155mm, C.S.=2.5mm)
Port system:
N100 PORT SYSTEM FOR SONY E-MOUNT CAMERA SYSTEM
Lens and Port Adaptors
37305 N100 to N120 35.5mm Port Adaptor II
37306 N100 to N120 25mm Port Adaptor
37202 Nikonos adaptor for NA-A7II/A9/A7RIII
Recommended Accessories:
Housing Mount
16701 Top Handle for E2/F/C70/BGH1/BMPCC
17959 Housing Mounting Ball with 1/4'' Screws
17960 Universal Quadra-Pod Plate for Nauticam Housings
17961 Swivel and Tilt Adjustable Monitor Mount System
25218 Mounting Ball Set for Tripod (for NA-A9/A7RIII/BMPCC/XT3)
25221 M10 strobe mounting ball for housing
25224 M10 strobe mounting ball for housing (with hole for using with lanyard
Housing Mount for Action Camera (15201 for Insta360 X5)
72605 1/4" Male to M10 Male Screw Adapter
72609 Ø37x350 Float Stick Package
72610 Swivel Adaptor with 1/4'' Screws
72612 1/4" Male to 1/4'' Male Disc Adapter
Vacuum Valve
25625 M16 Vacuum Valve II (Pushbutton Release)
Lanyard
25227 27cm lanyard with shackles
25412 23cm lanyard with 2 snap hooks
Surface USB-PD Power bank
26325 USB-C Bulkhead with USB-C Connector
26326 M24-M16 Adaptor for use with 26325 (Optional for use with M24)
*Both 26325 and HDMI Out could be use together.
Hand Strap
36337Hand Strap for NA-FX5
HDMI OUTPUT:
- Required accessories for HDMI 2.0 Cable System
25086 M24 adaptor for HDMI 2.0 cable (incl. tightening tool)
25703 M24A2R225-M28A1R170 HDMI 2.0 Cable (for NA-FX5 to use with Ninja V housing) TBA
Compatible Monitor Options:
16613 Nauticam Atomos Ninja TX Housing for Atomos Ninja TX /TX O/ RAW Monitor
17922 Nauticam Atomos Ninja V Housing for Atomos Ninja V 5” 4Kp60 4:2:2 10-bit
Reorder/Monitor/Player (excl. HDMI 2.0 cable)
17922S Nauticam Atomos Ninja V-S Housing for Atomos Ninja V 5” 4Kp60 4:2:2 10-bit
Reorder/Monitor/Player (excl. HDMI 2.0 cable) with Atomos AtomX SDI Module
- Required accessories for HDMI 1.4 Cable System
25033 Standard HDMI bulkhead with M16 thread
26326 M24-M16 Adaptor for use with 26325 *instead of existing 25081
25100 HDMI (D-A) 1.4 Cable in 200mm length for NA-a1 (for connection from HDMI
bulkhead to camera) TBA
*25033 is included in 17923 monitor housing
Compatible Monitor Options:
16611 Nauticam 7'' G7 UW ULTRAHD Monitor (4K HDMI, 2K SDI input, excl. cables)
16612 Nauticam 7'' T7 UW ULTRAHD Monitor (HDMI 1.4 input, excl. cables)
25047 HDMI (D-D) cable in 800mm length (for connection between HDMI bulkheads)
*25047 is required for use with 16612.
17927 NA-Shinobi II Housing for Atomos Shinobi II 5.2" Monitor with HDMI 1.4 input
*17927 includes 25033, 25038 and 25100.
Required Monitor Mounting system
17951 Nauticam Atomos Shogun housing mounting system
17952 Nauticam Monitor Housing Mounting Adaptor
17954 Tripod plate for NA-A7S and NA-GH4
17960 Universal Quadra-Pod Plate for Nauticam Housings
17961 Swivel and Tilt Adjustable Monitor Mount System
(compatible with 16612/16613/17927/17922 etc.)
Wet Lenses:
Macro
81202 Super Macro Convertor 2 (4x Magnification)
81203 Super Macro Convertor 3 (2.3x Magnification)
81301 Compact Macro Convertor 1 (CMC-1, 4.5x Magnification)
81302 Compact Macro Convertor 2 (CMC-2, 2.8X Magnification)
81501 Mid-range Focus Optimizer 1
81503 Mid-range Focus Optimizer 3
Wideangle
83202 Wet Wide Lens 1B (WWL-1B) 130 deg. FOV with compatible 28mm lenses
(incl. float collar)
83203 Wet Wide Lens Compact (WWL-C) 130 Deg. FOV with Compatible 24mm Lenses
85204 0.57x Wide Angle Conversion Port - 2 (WACP-2) 140 Deg. FOV with Compatible 14mm Lenes (incl. float collar)
85205 N100 0.36x Wide Angle Conversion Port Compact (WACP-C)
85206 N120/N100 0.36x Wide Angle Conversion Port with Integrated Float Collar and Interchangeable Port Mounting Ring - (WACP-1B)
85207 N120/N100 Fisheye Conversion Port with Integrated Float Collar (FCP) 170 Deg. FOV with Compatible 28mm Lenses
Macro to wideangle
86201 Macro to Wideangle Lens 1 (MWL-1) 150 deg. FOV with full rame 60mm macro lens
87303 EMWL Set #3 (incl. focusing unit #3, 150mm relay lens and 3 objective lenses)
87203 EMWL Focusing Unit #3 (For Sony FF 90mm)
87212 EMWL Angled Relay Lens
87211 EMWL 150mm Relay Lens
87221 EMWL 60° Objective Lens
87222 EMWL 100° Objective Lens
87223 EMWL 130° Objective Lens
87226 EMWL 160° Objective Lens
Wet Lenses Accessories
25101 M67 flip diopter holder for M67 macro ports
25108 M67 Double Flip Holder for M67 Macro Ports
25115 M67 Triple Flip Holder for M67 Ports
83250 M67 to Bayonet Converter II
83251 M77 to Bayonet Converter II
83214 Bayonet Mount Adaptor for SMC/CMC
83251 M77 to Bayonet Converter II
86222 Double Flip Holder for MWL-1
87501 Flip Holder for EMWL
87512 Shade for 130° Objective Lens
87513 Shade for 100° Objective Lens
87518 Strobe Mounting Brackets for EMWL Relay Lens
Buoyancy Recommendation for Housing Setups: (depending on port and lens choices)
72261 Ø70x200mm Carbon Fibre Aluminium Float Arm (Buoyancy 370g)
72262 Ø70x250mm Carbon Fibre Aluminium Float Arm(Buoyancy 520g)
72263 Ø70x300mm Carbon Fibre Aluminium Float Arm (Buoyancy 670g)
72264 Ø90x170mm Carbon Fibre Aluminium Float Arm (Buoyancy 450g)
72265 Ø90x220mmCarbon Fibre Aluminium Float Arm (Buoyancy 720g)
72266 Ø50x200mm Carbon Fibre Aluminium Float Arm (Buoyancy 160g)
72267 Ø50x250mm Carbon Fibre Aluminium Float Arm (Buoyancy 240g)
72268 Ø50x300mm Carbon Fibre Aluminium Float Arm (Buoyancy 320g)
72233 Single Bayonet Holder II for Ø70 Float Arm
72234 Double Bayonet Holder II for Ø70 Float Arm
72243 Single Bayonet Holder II for Ø90 Float Arm
72244 Double Bayonet Holder II for Ø90 Float Arm
83252 Bayonet Holder for Arms
83253 Double Bayonet Holder for Arms
83254 Bayonet Lens Holder for Inon Float Arms
87516 EMWL Bayonet Holder for Ø70 Float Arm
87517 EMWL Bayonet Holder for Ø90 Float Arm
