Product Description

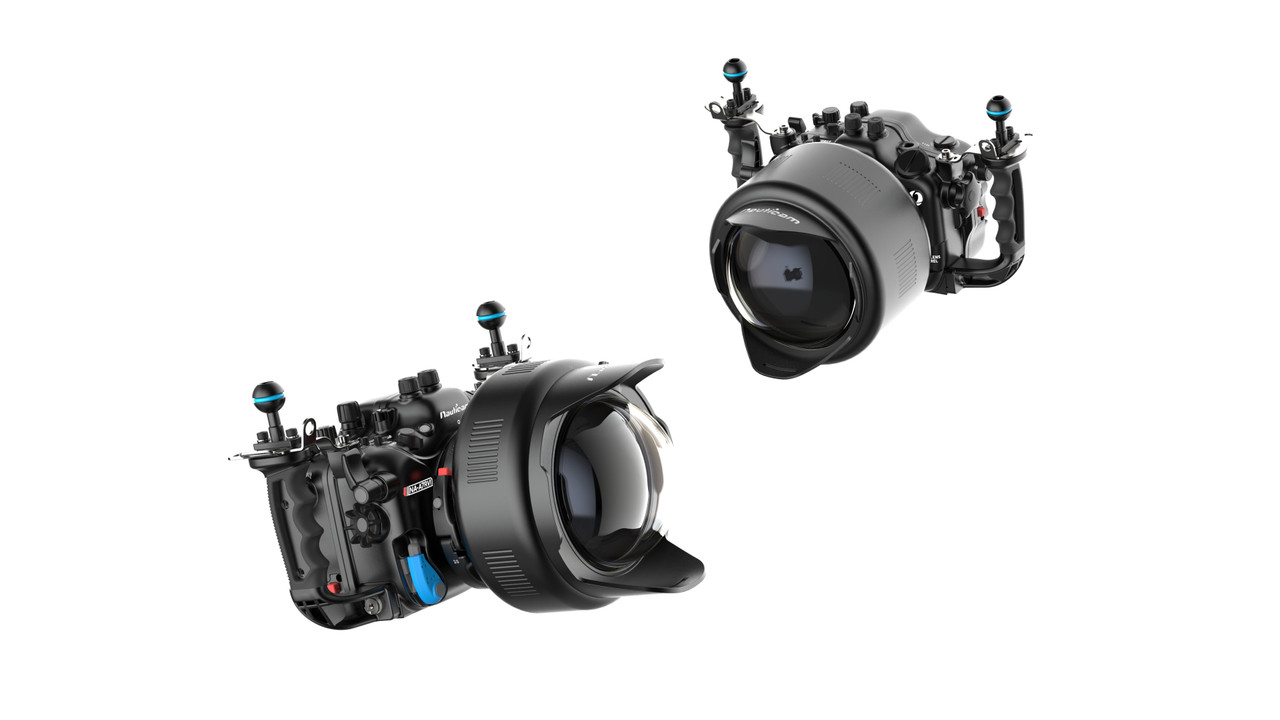

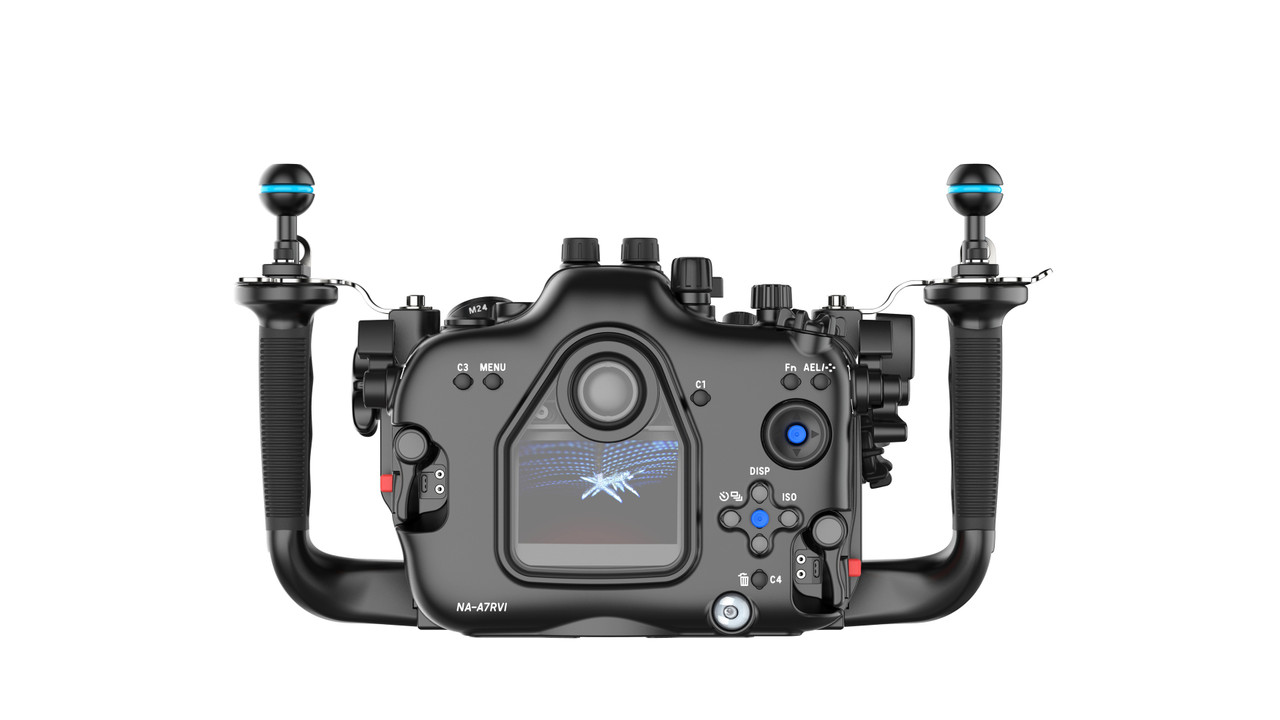

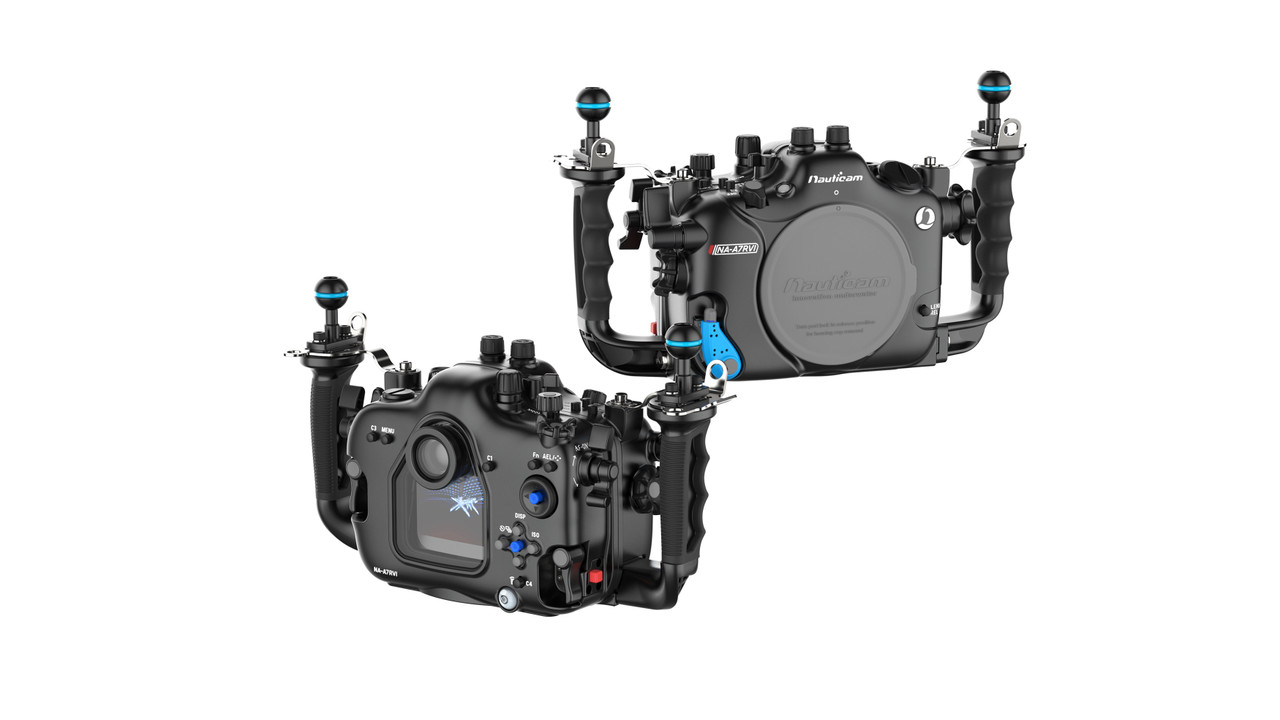

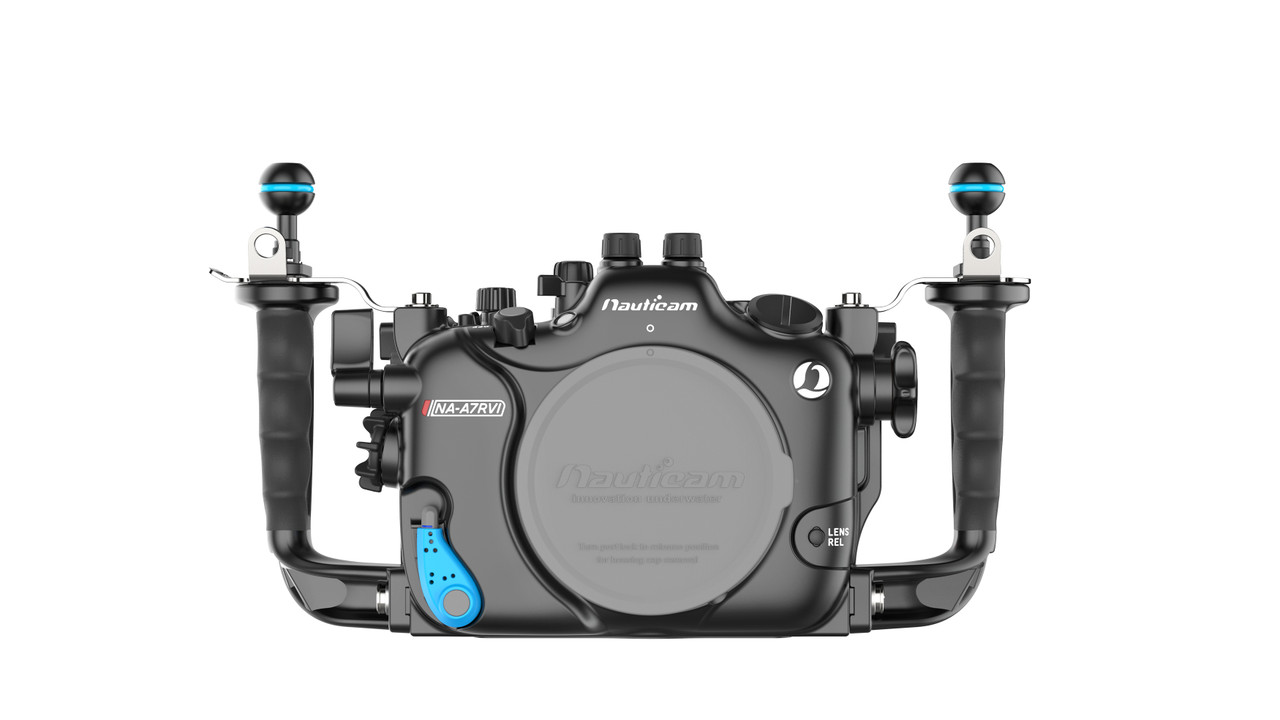

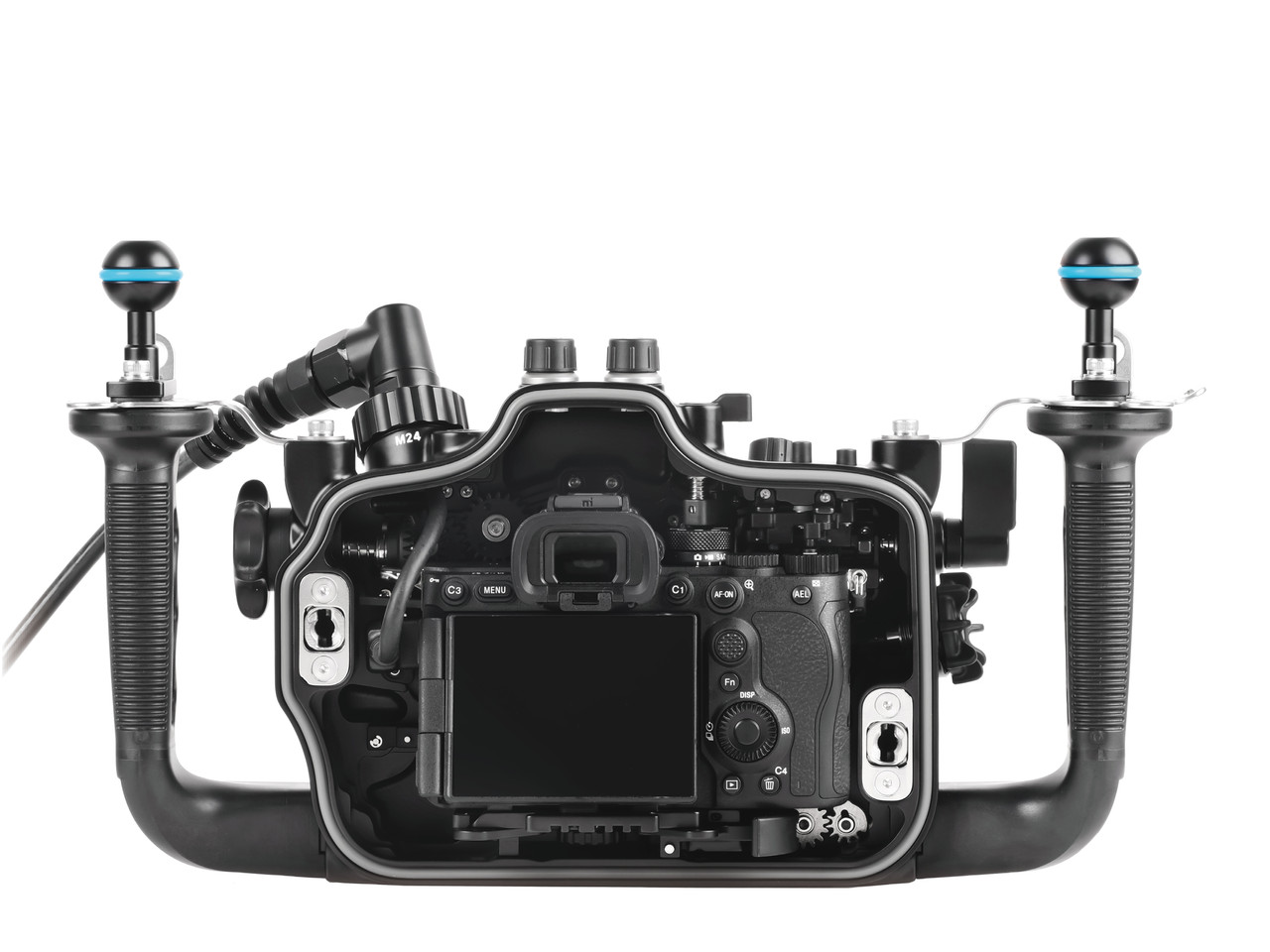

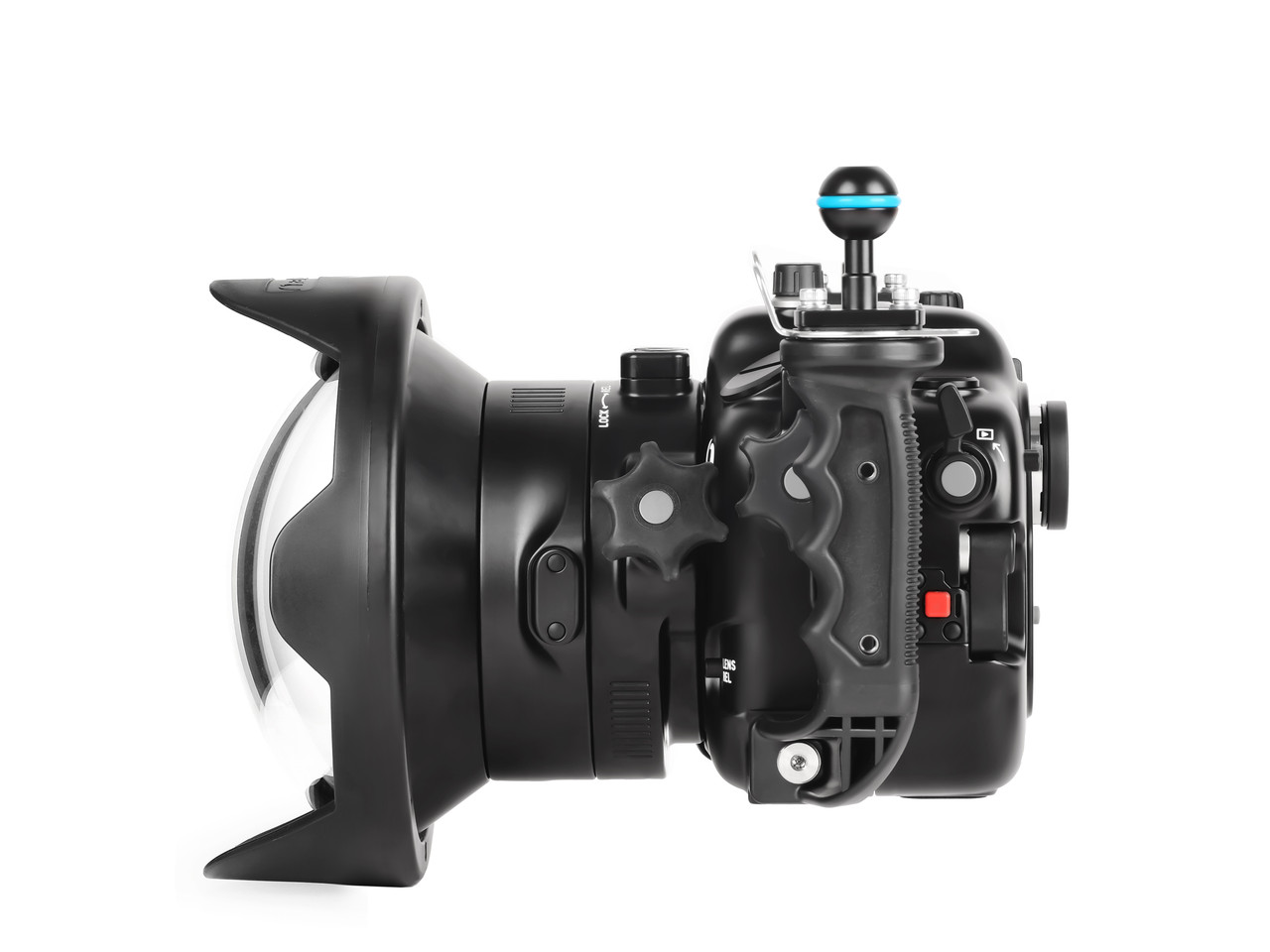

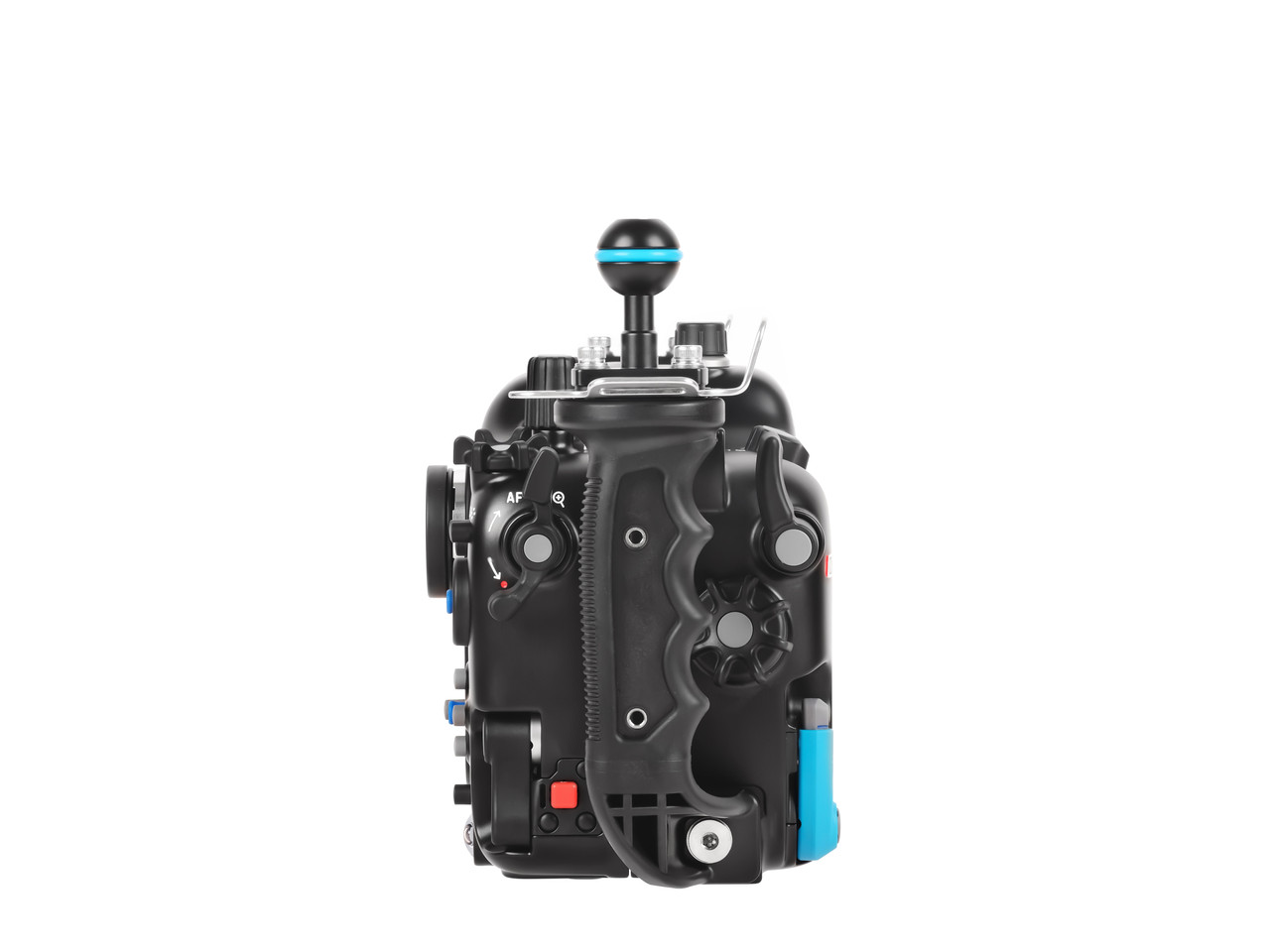

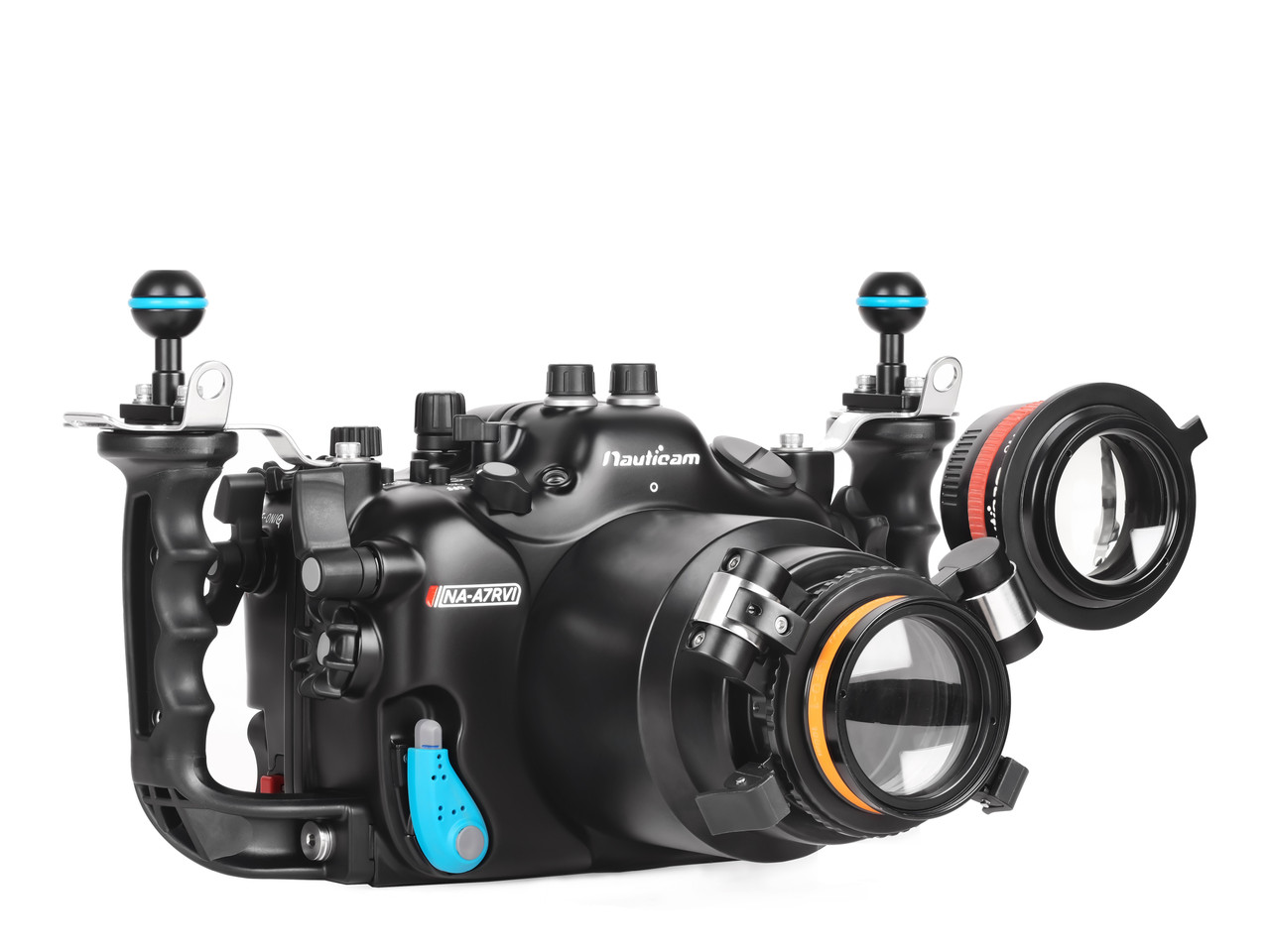

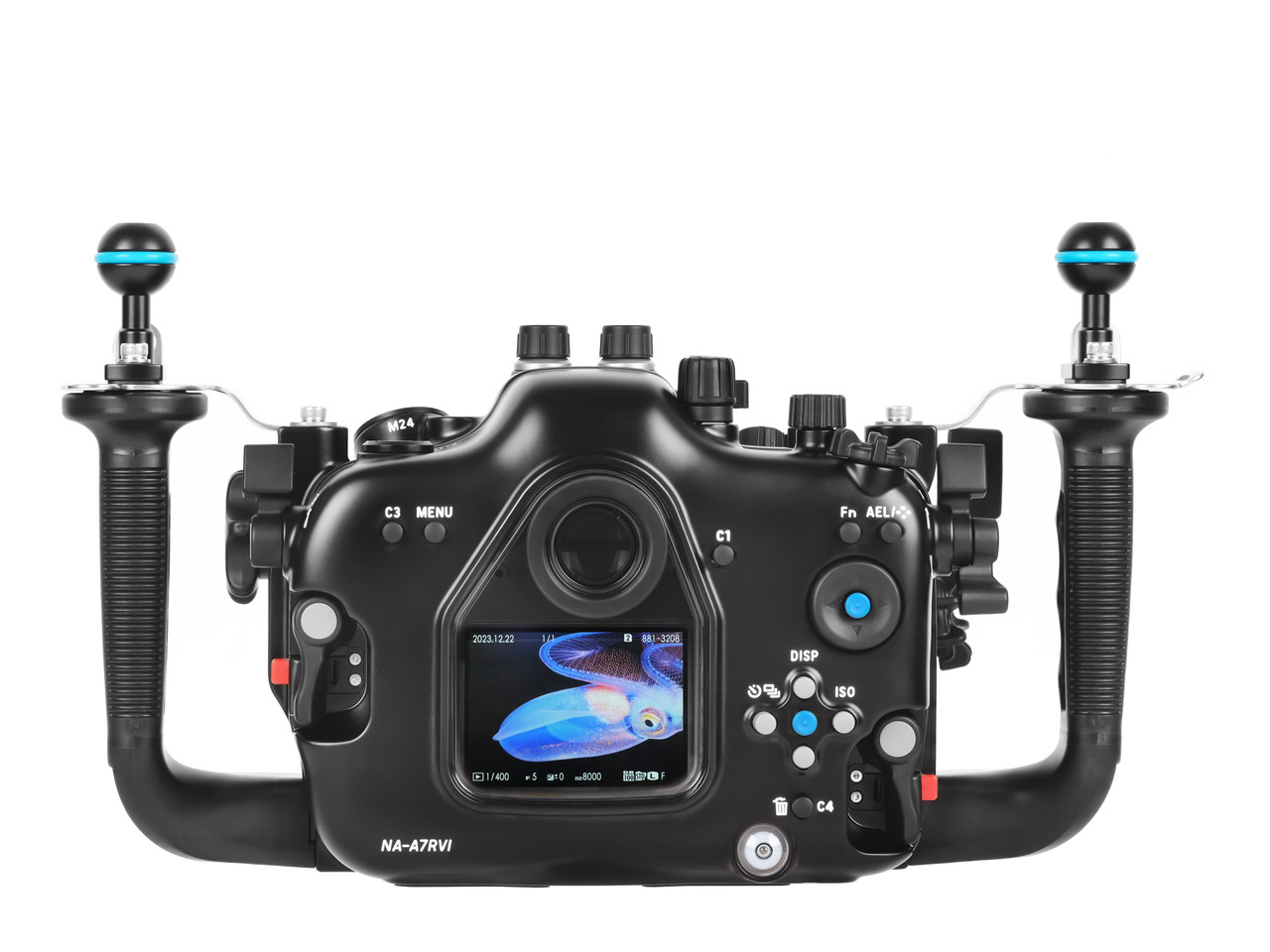

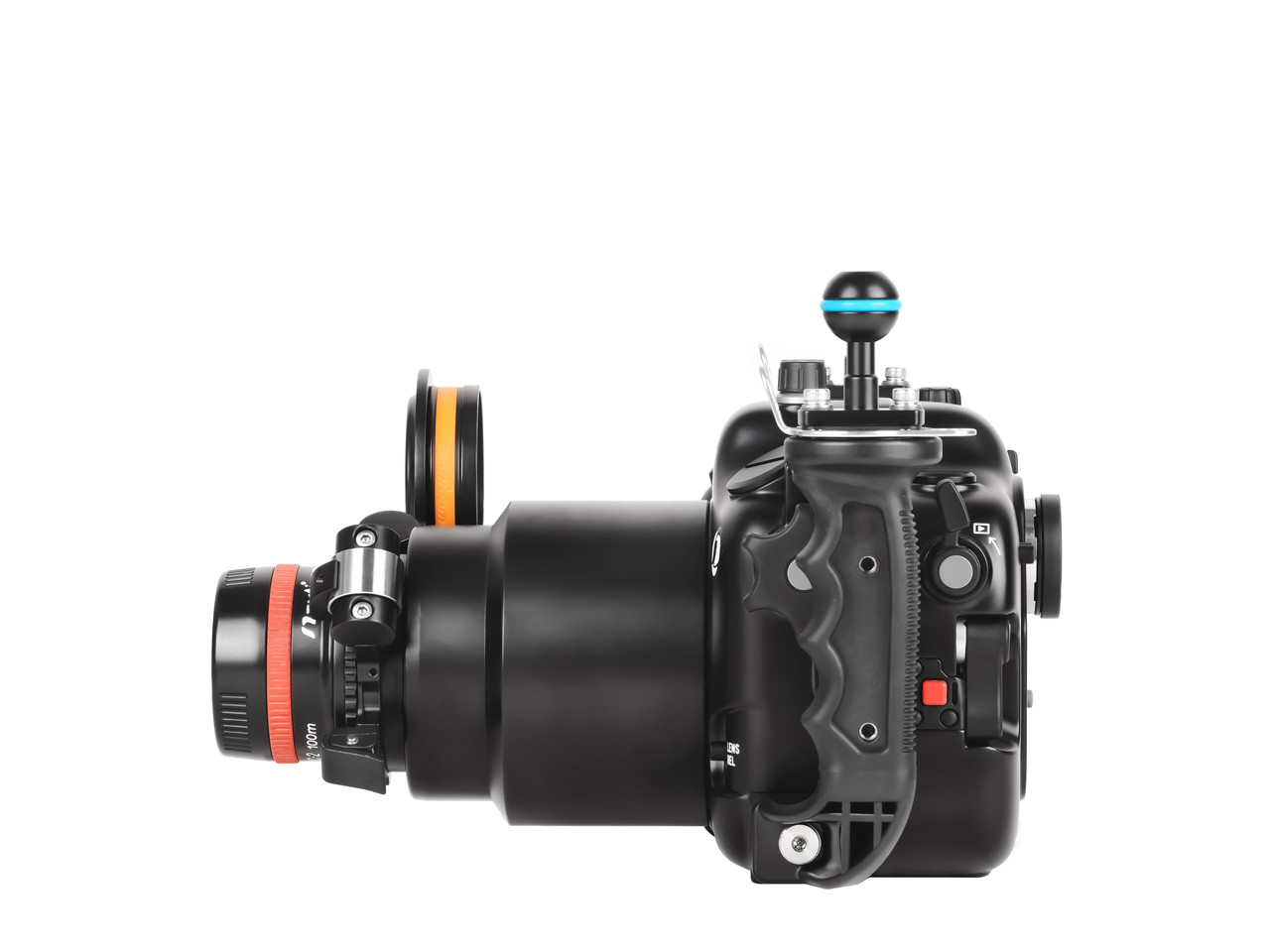

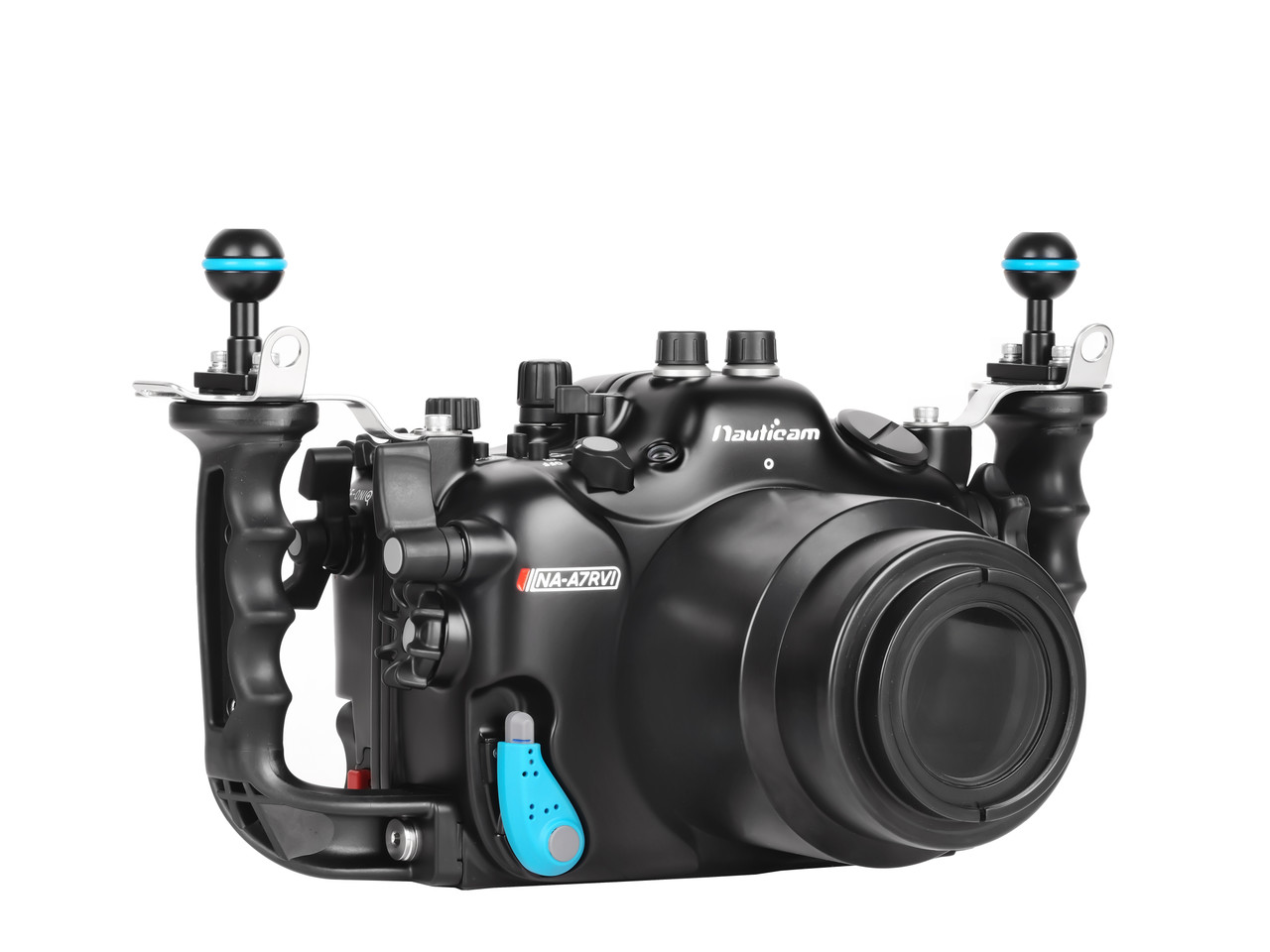

NA-A7RVI Housing For Sony A7R VI Full Frame Mirrorless Camera
The Nauticam Sony A7RVI underwater housing is a professional-grade housing designed to protect the Sony Alpha a7RVI camera while underwater. It is made of high-quality aluminum and features a patented port-locking lever that allows for quick and easy lens changes. The housing also has a variety of other features that make it ideal for underwater photography,including:
- Full access to all camera controls
- Ergonomic design for easy handling
- Vacuum check and leak detection system
- Durable construction
- Wide range of compatible accessories
INTEGRATED VACUUM CHECK AND LEAK DETECTION SYSTEM
|
|
The housing comes with electronics pre-installed for Nauticam's Vacuum Check and Leak Detection system, requiring only the optional M14 Vacuum Valve (25624). This monitoring system provides constant updates on the water tight and safe-to-dive status of the housing. A simple color coded LED lighting system lets the user know that the vacuum is solid, or that the housing is losing vacuum. Leak detection is built into the same circuit, so if there is water intrusion, an audible and visual indication will occur. |
|
|
The Nauticam system is temperature compensated, eliminating false alarms caused by a change in outside temperature, or from a camera heating up on an action packed dive. |
||
Strobe Triggering
|
Triggering of external strobes is accomplished via the integrated fiber-optic bulkheads when using the optional Mini Flash Trigger for Sony (26302). Electronic triggering is also available via an optional Nikonos or Ikelite Style Bulkhead. |
 |
 |
|
| Mini Flash Trigger | Universal Fiber Optic Cables |
RESOURCES
Specification:
Dimensions: 343mm (W) x 202mm (H) x 127m (D) *included handles.
Weight in air: 2.86kg
Buoyance in water: -0.64kg (incl. camera and NP-SA100 battery)
Depth rating: 100m
Accessory ports: front M24 x 1, Rear M14 x 1 (for vacuum valve)
Port system: N100 Sony E mount
Manual flash trigger: 26302 Mini flash trigger for Sony
TTL flash Trigger: 26602 HSS TTL Converter for Sony
Handle and stabilizing brackets: Pre-installed
HDMI support: HDMI 2.0 / 1.4
Compatible cameras: Sony α7RVI camera
What is in the box
- NA-A7RVI Housing
- 90120 Spare main O-ring, O-ring remover and lubricant
- 2x handles with mounting balls
- Panasonic CR-2032 Battery (for moisture alarm and vacuum detector)
- Set of Allen Keys
- Manual instruction card
- Padded housing bag and shoulder strap
Features
- N100 Auto Lock Port System II (International Patent Pending)
- Signature flagship model housing lock with an integrated locking shaft
- Similar control layout as NA-A7RV (Playback Lever is routed on the left side)
Recommended Accessories:
Housing O-rings:
90120 Housing O-ring (I.D. =180mm, C.S. =4.0mm)
N100-N120 adaptors
37305 N100 to N120 35.5mm Port Adaptor II
37306 N100 to N120 25mm Port Adaptor
Optical Triggering
26302 Mini flash trigger for Sony
26602 HSS TTL Converter for Sony
26216 Universal Optical Fiber Cable
Electrical Triggering
26326 M24-M16 Adaptor for use with 26325
25056 M14 Nikonos 5-pin bulkhead with universal hotshoe connection
Housing mounting ball
25221 M10 strobe mounting ball for housing
25228 M5 strobe mounting ball for housing
25218 Mounting Ball Set for Tripod (for NA-A9/A7RIII/BMPCC/XT3)
Vacuum Valve
25624 M14 Vacuum Valve II (Pushbutton Release)
Lanyard
25413 27cm lanyard with 2 snap hooks
Hand strap
28130 Hand Strap for 28113
Handles
28113 Pair of handles - size L (pre-installed)
28123 Pair of handles - size S (10mm closer to housing)
*A special handle brackets is required for use with 28123
Viewfinder
32211 Nauticam Full Frame Straight Viewfinder 32°/ 1:1
32212 Nauticam Full Frame Straight Viewfinder 40°/ 0.8:1
32213 Nauticam Full Frame Angle Viewinder 32°/ 1:1
32214 Nauticam Full Frame Angle Viewinder 40°/ 0.8:1
*32212/32214 is more recommended
Surface USB-PD Power bank
26325 USB-C Bulkhead with USB-C Connector
26326 M24-M16 Adaptor for use with 26325
HDMI OUTPUT
- Required accessories for HDMI 2.0 Cable System
25086 M24 adaptor for HDMI 2.0 cable (incl. tightening tool)
25099 M24A2R200-M28A1R170 HDMI 2.0 Cable (for NA-α1/GH6/A9III to use with Ninja V housing)
Monitor Options:
17922 Nauticam Atomos Ninja V Housing for Atomos Ninja V 5” 4Kp60 4:2:2 10-bit
Reorder/Monitor/Player (excl. HDMI 2.0 cable)
17922S Nauticam Atomos Ninja V-S Housing for Atomos Ninja V 5” 4Kp60 4:2:2 10-bit
16613 Nauticam Atomos Ninja TX Housing for Atomos Ninja TX /TX GO/ RAW Monitor
- Required accessories for HDMI 1.4 Cable System
25033 standard HDMI bulkhead with M16 thread
26326 M24-M16 Adaptor for use with 26325
25100 HDMI (D-A) 1.4 Cable in 200mm length for NA-a1/FX3/GH6 (for connection from HDMI bulkhead to camera)
Monitor housing Options:
16611 Nauticam 7'' G7 UW ULTRAHD Monitor (4K HDMI, 2K SDI input, excl. cables)
16612 Nauticam 7'' T7 UW ULTRAHD Monitor (HDMI 1.4 input, excl. cables)
25047 HDMI (D-D) cable in 800mm length (for connection between HDMI bulkheads)
*25047 is required for use with 16611/16612.
17927 NA-Shinobi II Housing for Atomos Shinobi II 5.2" Monitor with HDMI 1.4 input
*17927 includes 25033, 25038 and 25100.
17922 Nauticam Atomos Ninja V Housing for Atomos Ninja V 5” 4Kp60 4:2:2 10-bit Reorder/Monitor/Player (excl. HDMI 2.0 cable)
16613 Nauticam Atomos Ninja TX Housing for Atomos Ninja TX /TX GO/ RAW Monitor
25082 HDMI 1.4 Cable for Ninja V Housing in 0.75m Length (for connection from Ninja V housing to HDMI Bulkhead)
*25082 is required for use with 17922/16613 monitor housing
Monitor mounting system
17951 Nauticam Atomos Shogun housing mounting system
17952 Nauticam Monitor Housing Mounting Adaptor
17954 Tripod plate for NA-A7S and NA-GH4
17960 Universal Quadra-Pod Plate for Nauticam Housings
Wet Lenses:
Macro
81202 Super Macro Convertor 2 (4x Magnification)
81203 Super Macro Convertor 3 (2.3x magnification
81301 Compact Macro Convertor 1 (CMC-1, 4.5x Magnification)
81302 Compact Macro Convertor 2 (CMC-2, 2.8X Magnification)
81501 Mid-range Focus Optimizer 1
81503 Mid-range Focus Optimizer 3
Wide Angle
83202 Wet Wide Lens 1B (WWL-1B) 130 deg. FOV with compatible 28mm lenses (incl. float collar)
83203 Wet Wide Lens Compact (WWL-C) 130 Deg. FOV with Compatible 24mm Lenses
85204 Wide Angle Conversion Port -2 (WACP-2) 140 Deg. FOV with Compatible 14mm Lenses (incl. float collar)
85205 N100 0.36x Wide Angle Conversion Port Compact (WACP-C)
85206 N120/N100 0.36x Wide Angle Conversion Port with Integrated Float Collar and
Interchangeable Port Mounting Ring - (WACP-1B)
85207 N120/N100 Fisheye Conversion Port with Integrated Float Collar (FCP) 170 Deg. FOV with Compatible 28mm Lenses
Macro to Wide Angle
86201 Macro to wide-angle Lens 1 (MWL-1) 150 deg. FOV with full rame 60mm macro lens
87303 EMWL Set #3 (incl. focusing unit #3, 150mm relay lens and 3 objective lenses)
87203 EMWL Focusing Unit #3 (for Canon RF 100mm f2.8 Macro)
87211 EMWL 150mm Relay Lens
87212 EMWL Angled Relay Lens
87221 EMWL 60° Objective Lens
87222 EMWL 100° Objective Lens
87223 EMWL 130° Objective Lens
87226 EMWL 160° Objective Lens
Optional Accessories for using with Wet Lenses:
25101 M67 flip diopter holder for M67 macro ports
25108 M67 Double Flip Holder for M67 Macro Ports
83250 M67 to Bayonet Converter II
83251 M77 to Bayonet Converter II
83214 Bayonet Mount Adaptor for SMC/CMC
86221 M67 Flip holder for MWL-1
86222 Double Flip Holder for MWL-1
87501 Flip Holder for EMWL
87512 Shade for 130° Objective Lens
87513 Shade for 100° Objective Lens
87516 EMWL Bayonet Holder for Ø70 Float Arm
87517 EMWL Bayonet Holder for Ø90 Float Arm
87518 Strobe Mounting Brackets for EMWL Relay Lens

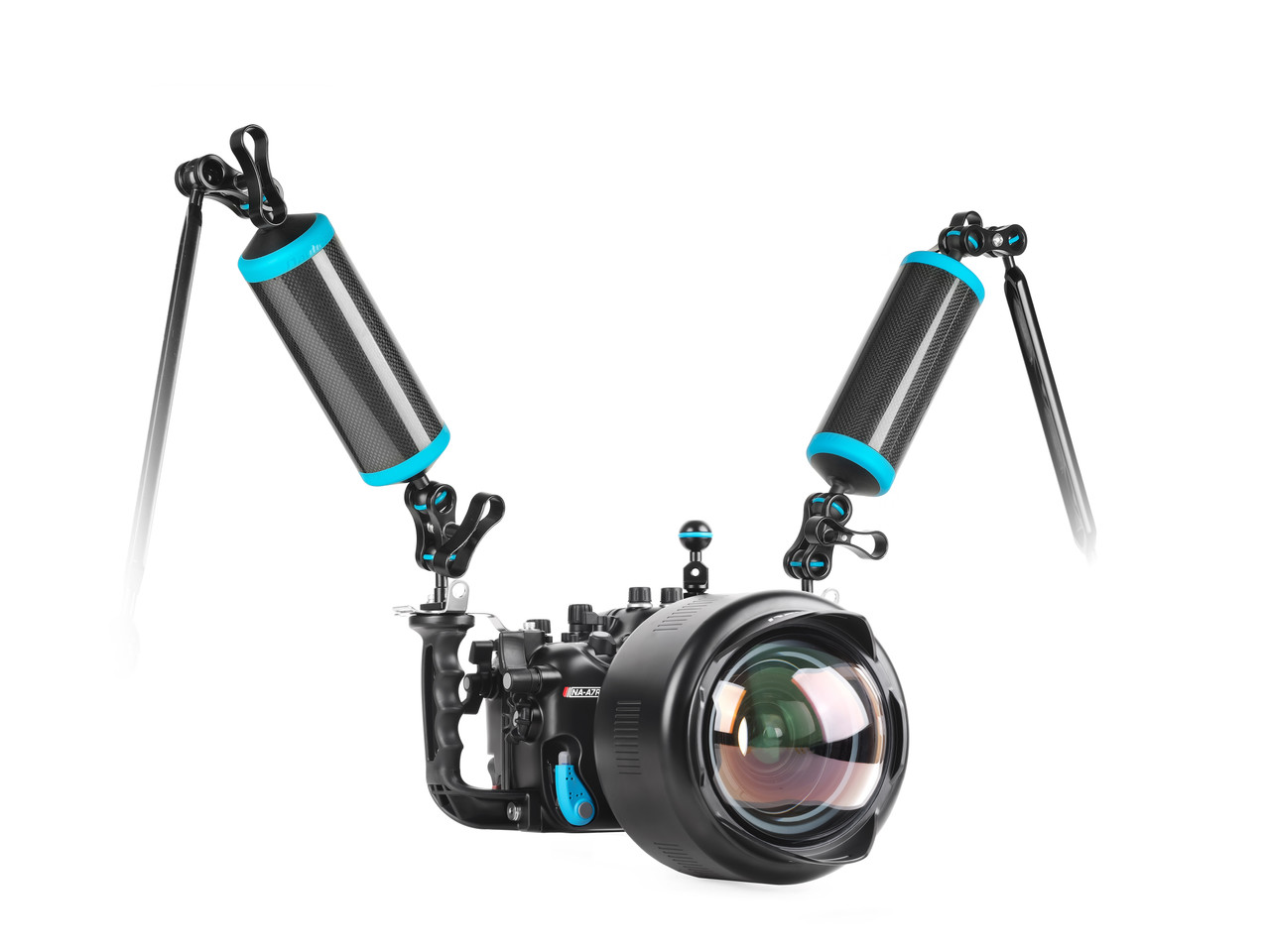

Buoyancy Recommendation for Housing Setups: (depending on port and lens choices)
72261 Ø70x200mm Carbon Fibre Aluminium Float Arm (Buoyancy 370g)
72262 Ø70x250mm Carbon Fibre Aluminium Float Arm(Buoyancy 520g)
72263 Ø70x300mm Carbon Fibre Aluminium Float Arm (Buoyancy 670g)
72264 Ø90x170mm Carbon Fibre Aluminium Float Arm (Buoyancy 450g)
72265 Ø90x220mmCarbon Fibre Aluminium Float Arm (Buoyancy 720g)
72266 Ø50x200mm Carbon Fibre Aluminium Float Arm (Buoyancy 160g)
72267 Ø50x250mm Carbon Fibre Aluminium Float Arm (Buoyancy 240g)
72268 Ø50x300mm Carbon Fibre Aluminium Float Arm (Buoyancy 320g)
72233 Single Bayonet Holder II for Ø70 Float Arm
72234 Double Bayonet Holder II for Ø70 Float Arm
83252 Bayonet Holder for Arms
83253 Double Bayonet Holder for Arms
83254 Bayonet Lens Holder for Inon Float Arms
87516 EMWL Bayonet Holder for Ø70 Float Arm
87517 EMWL Bayonet Holder for Ø90 Float Arm
