Product Description

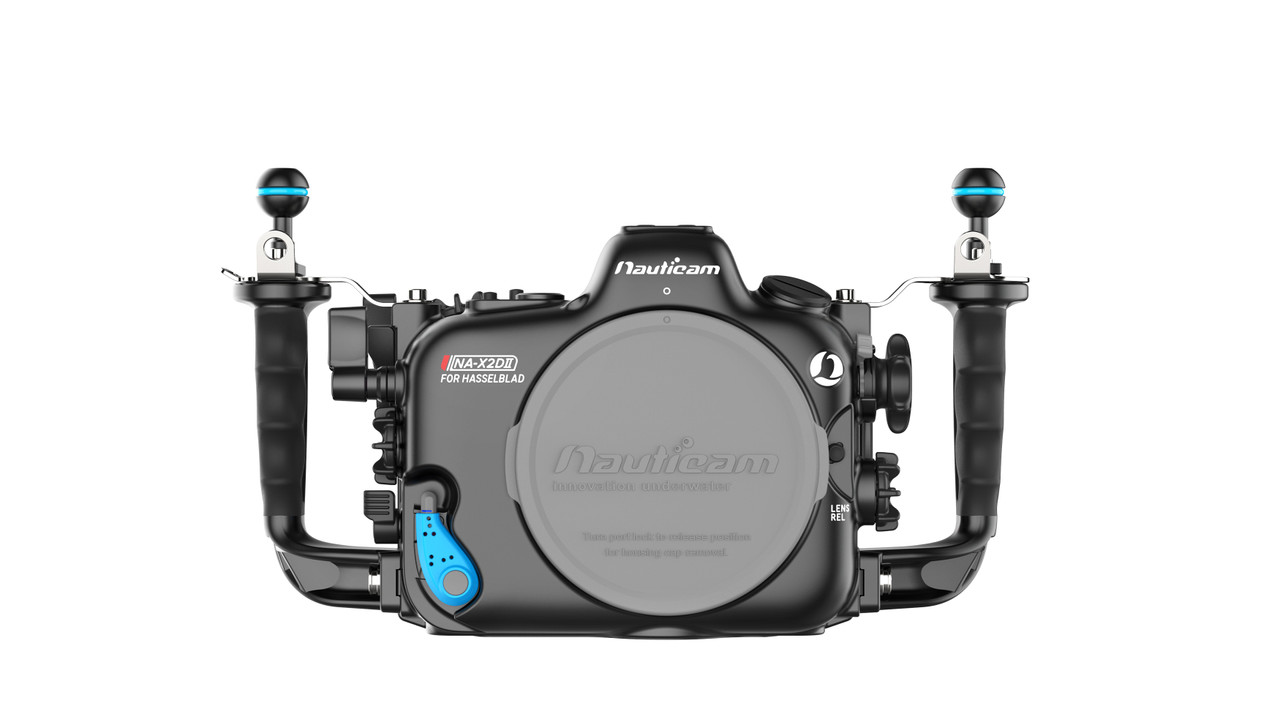

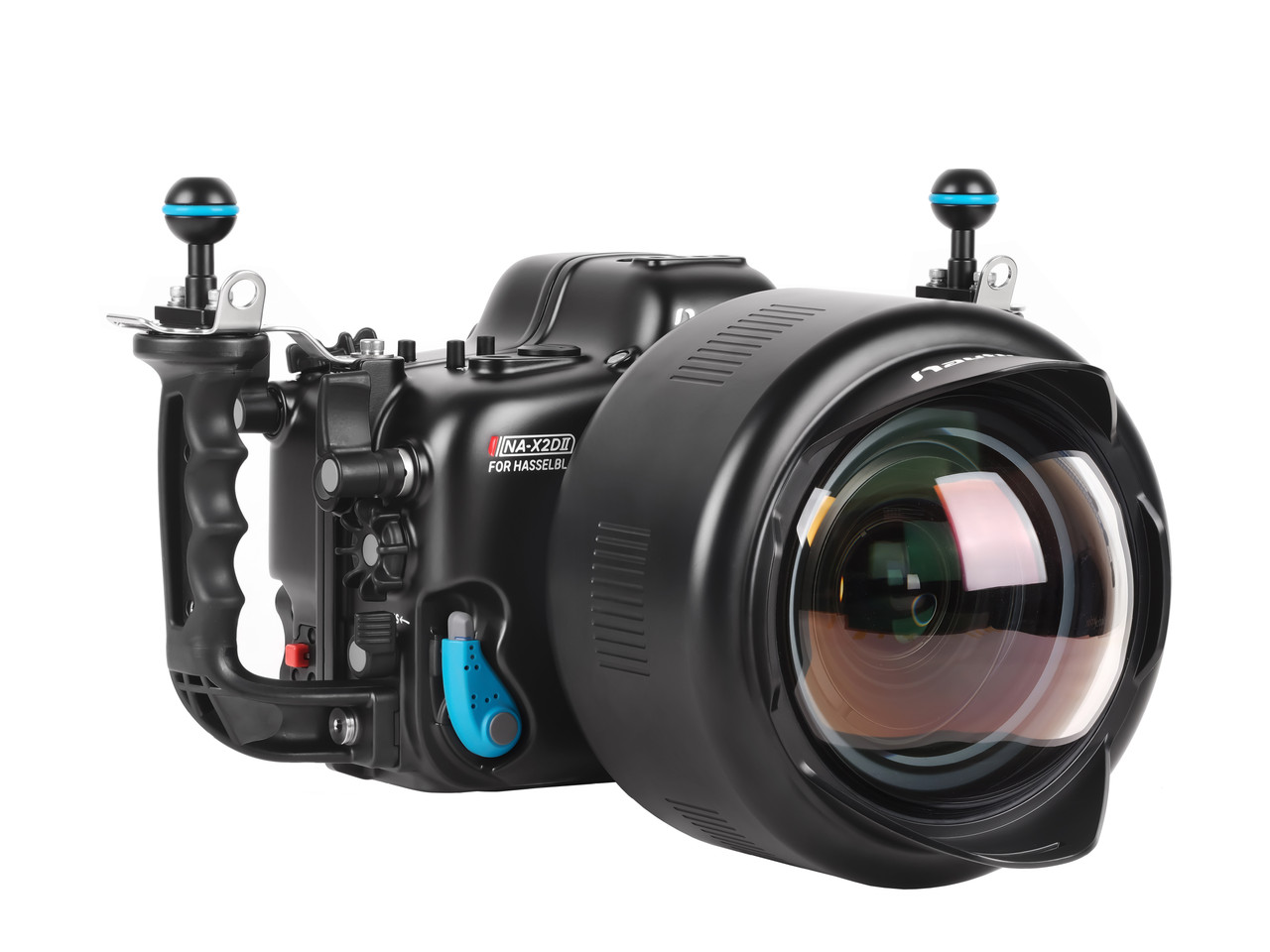

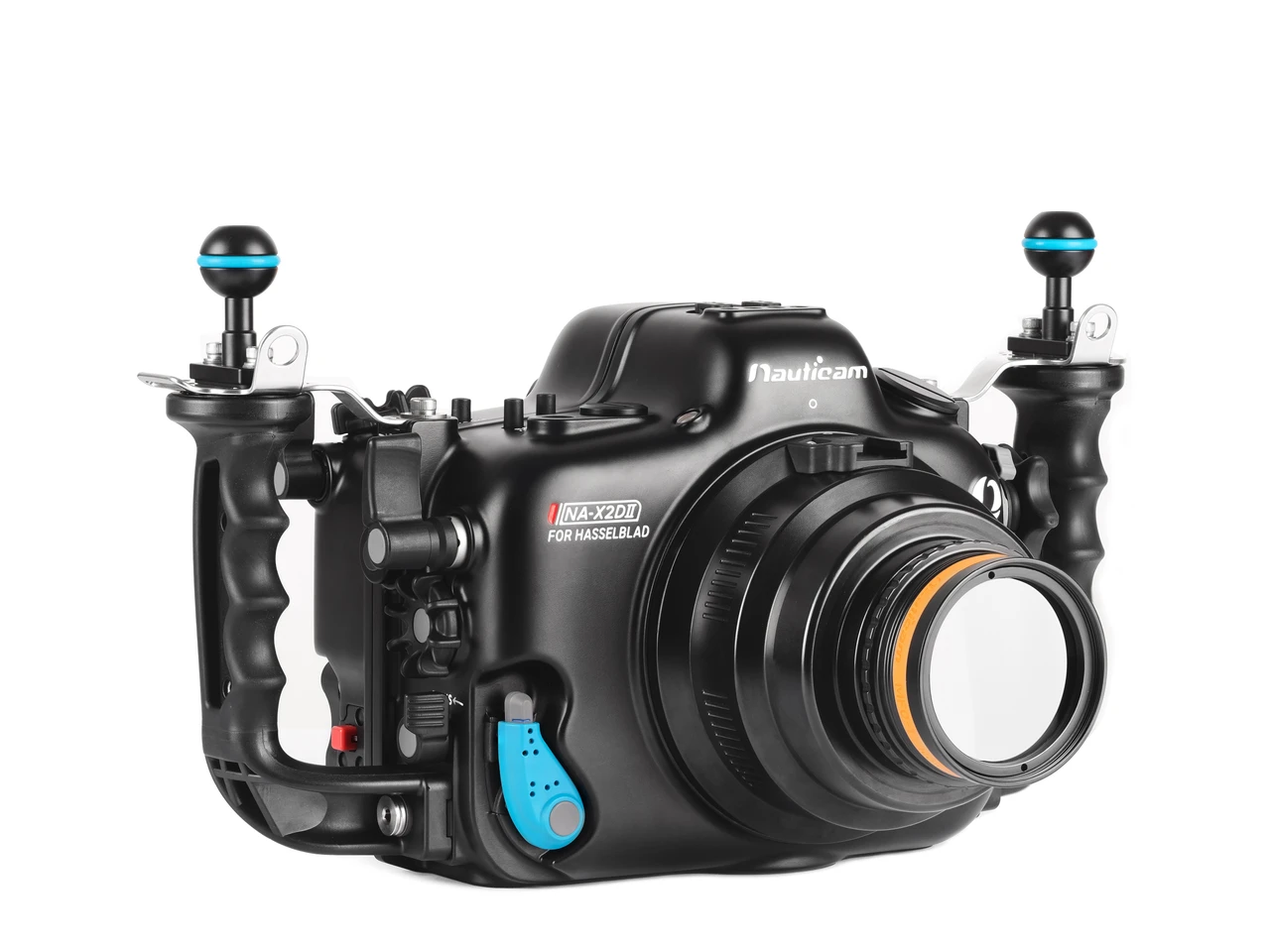

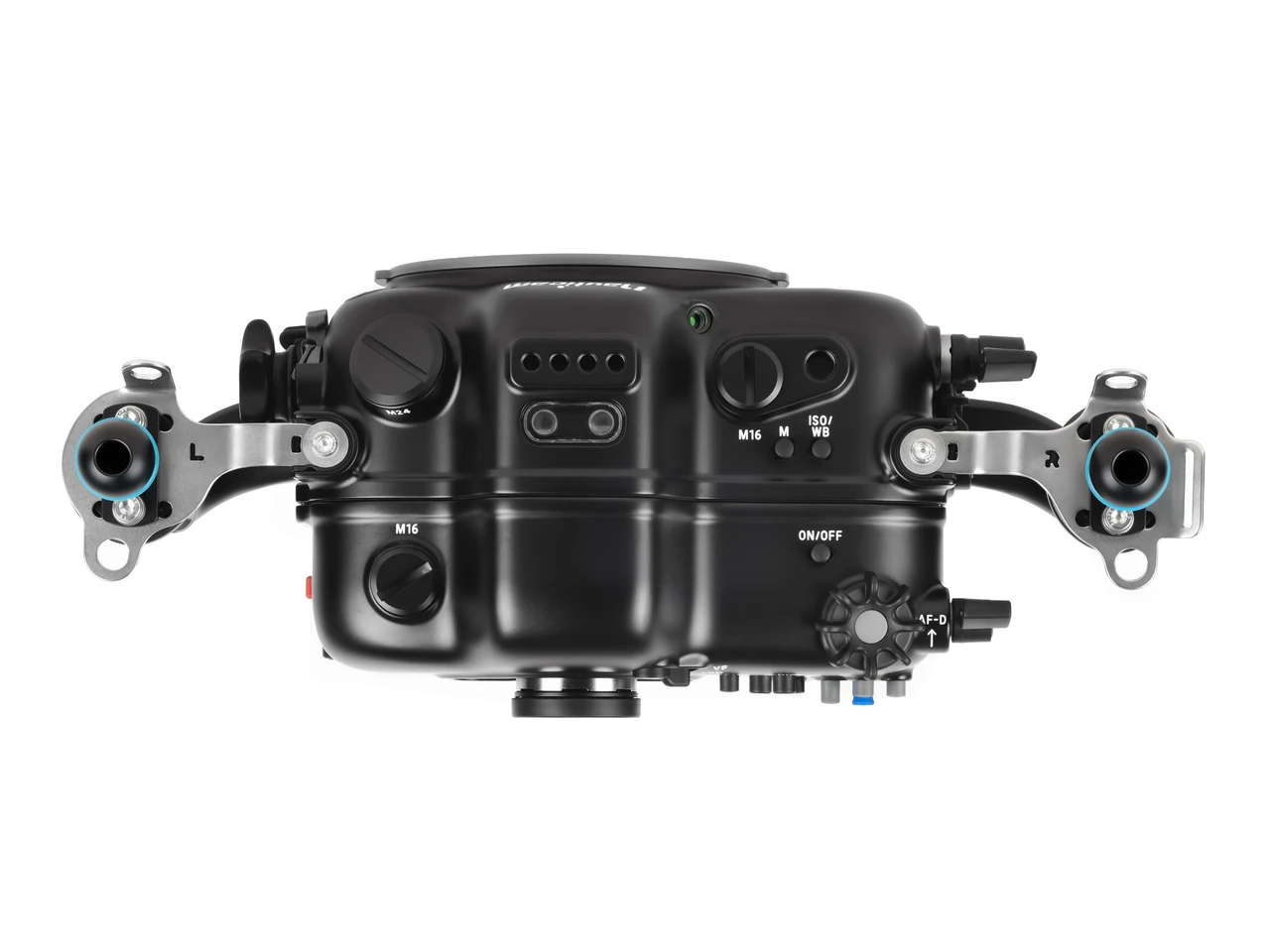

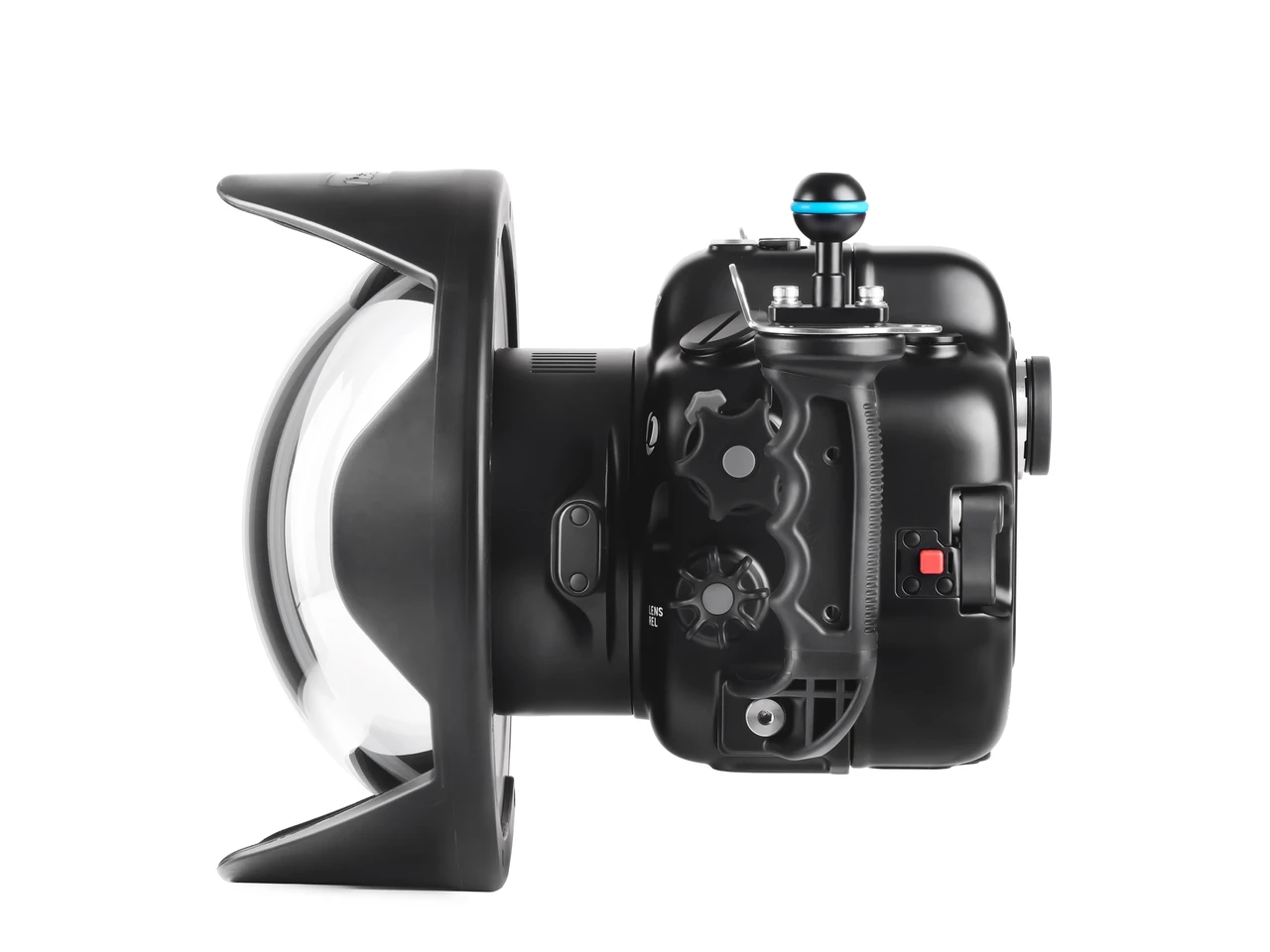

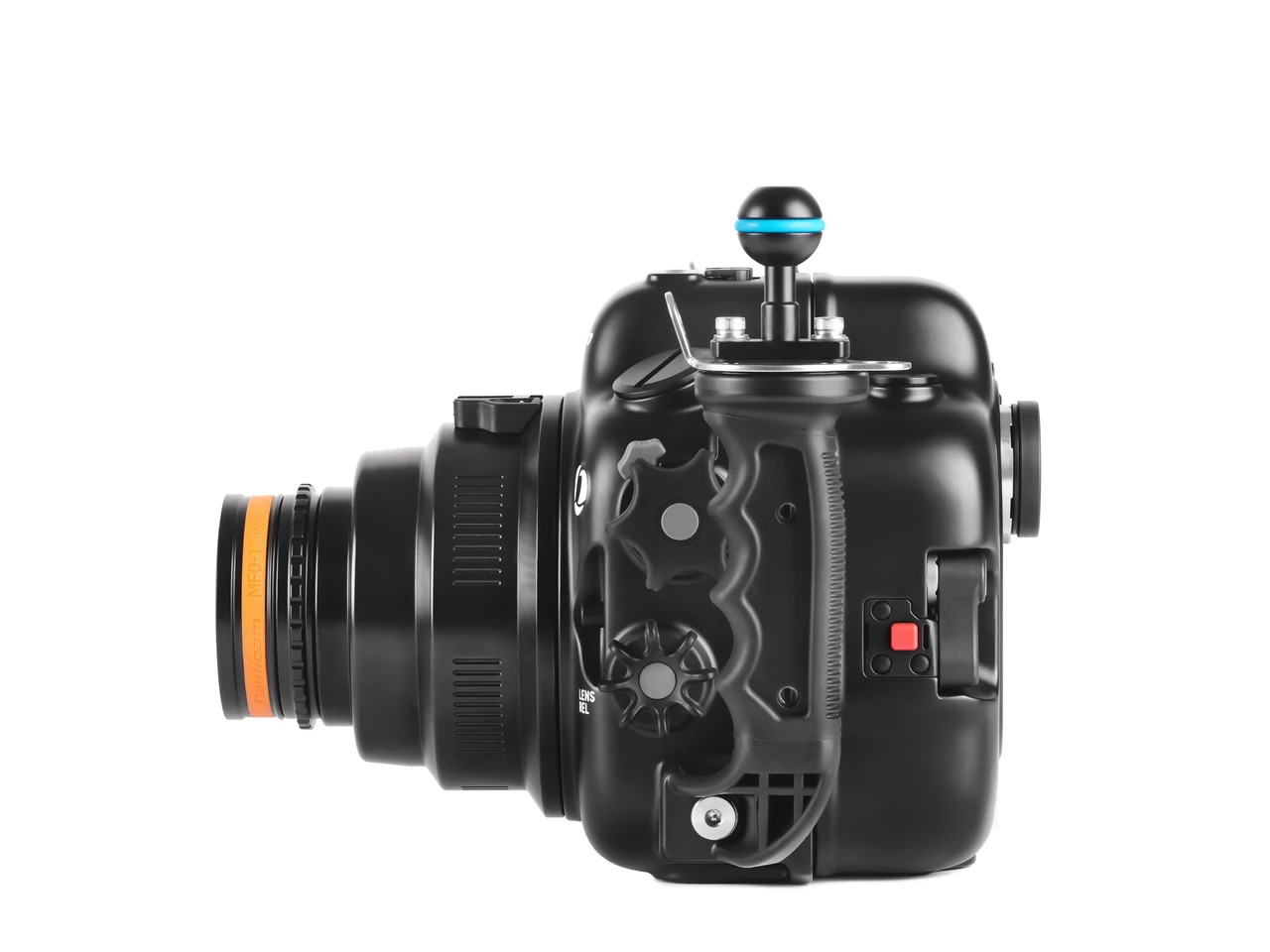

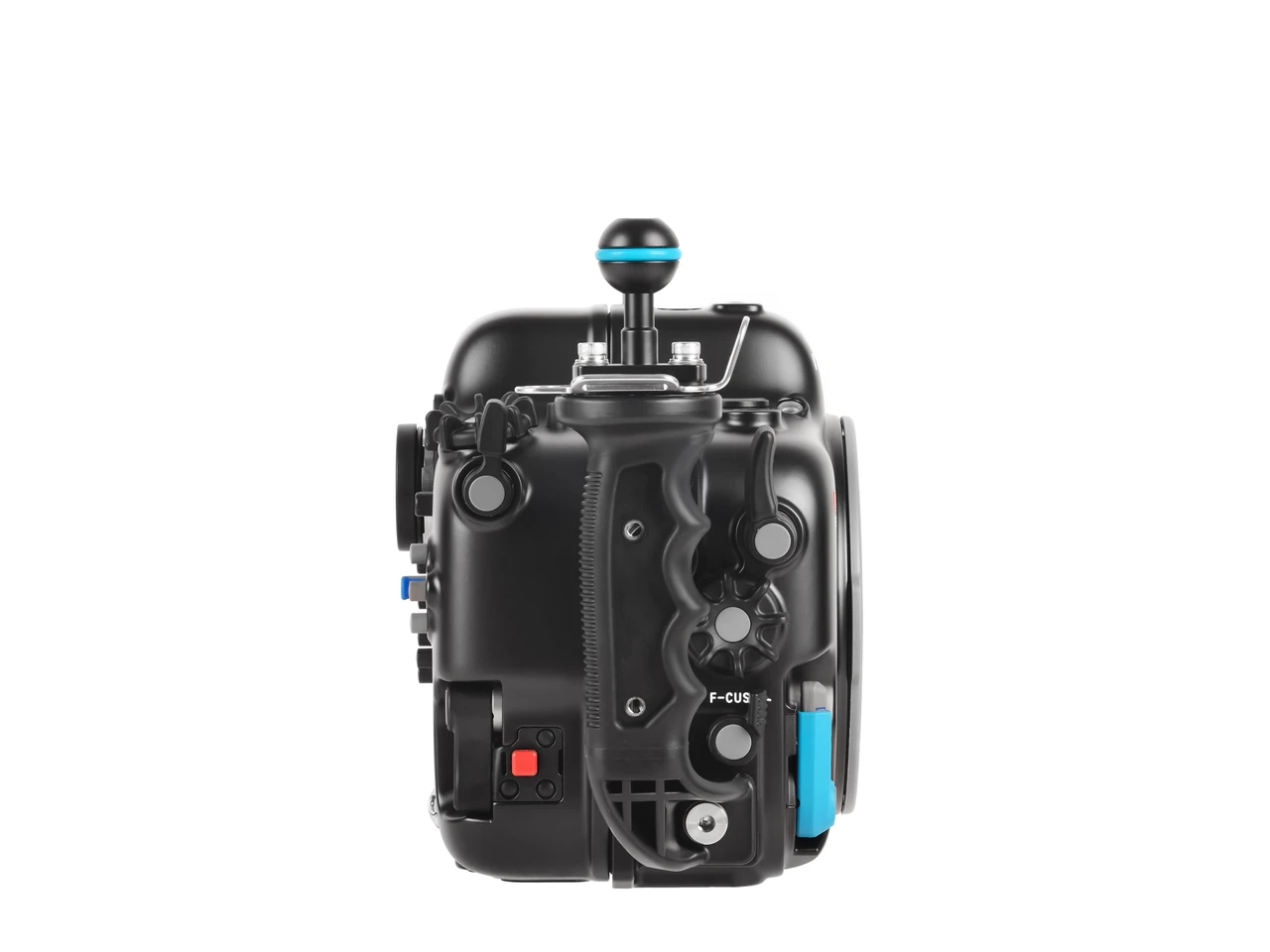

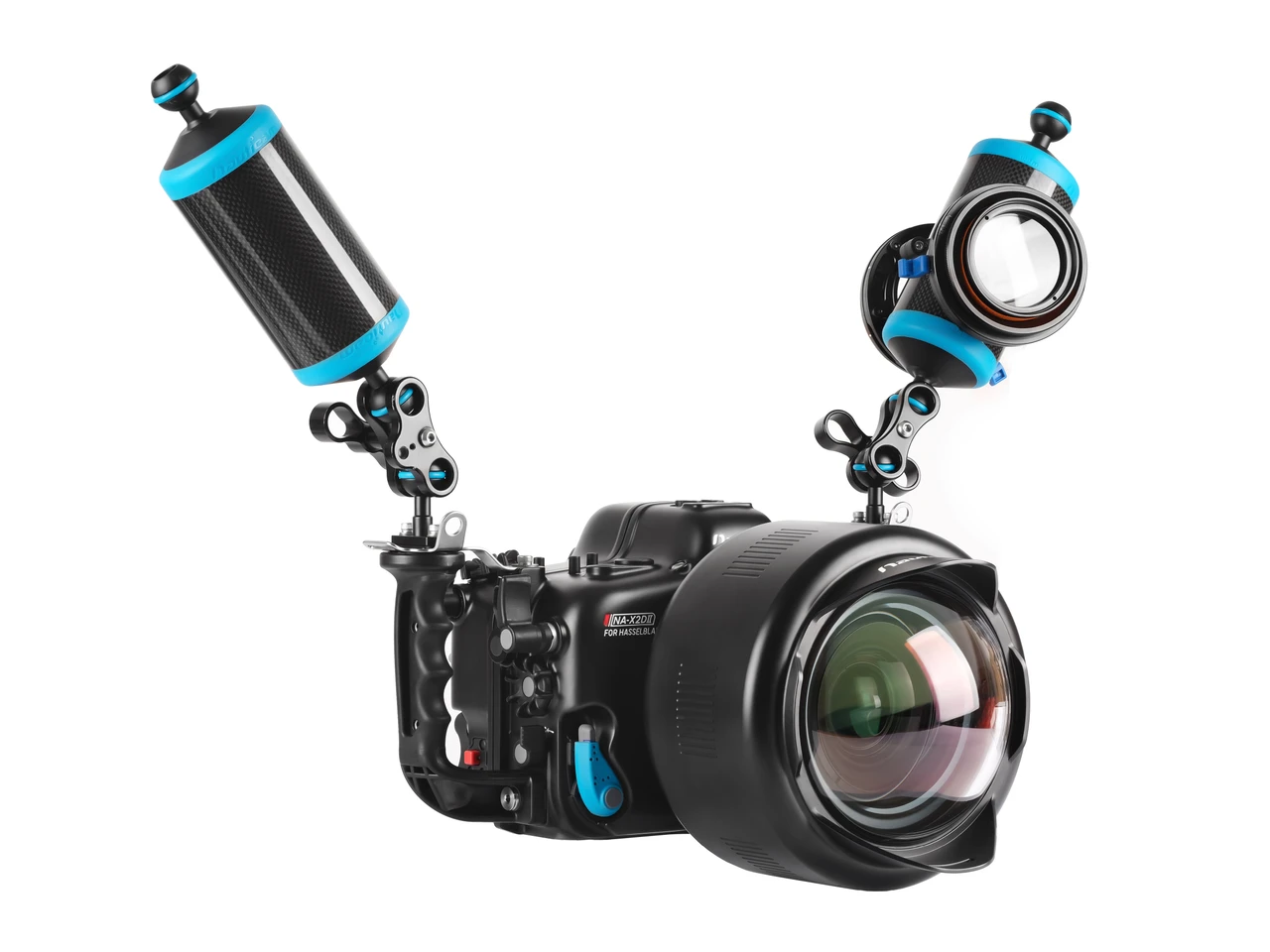

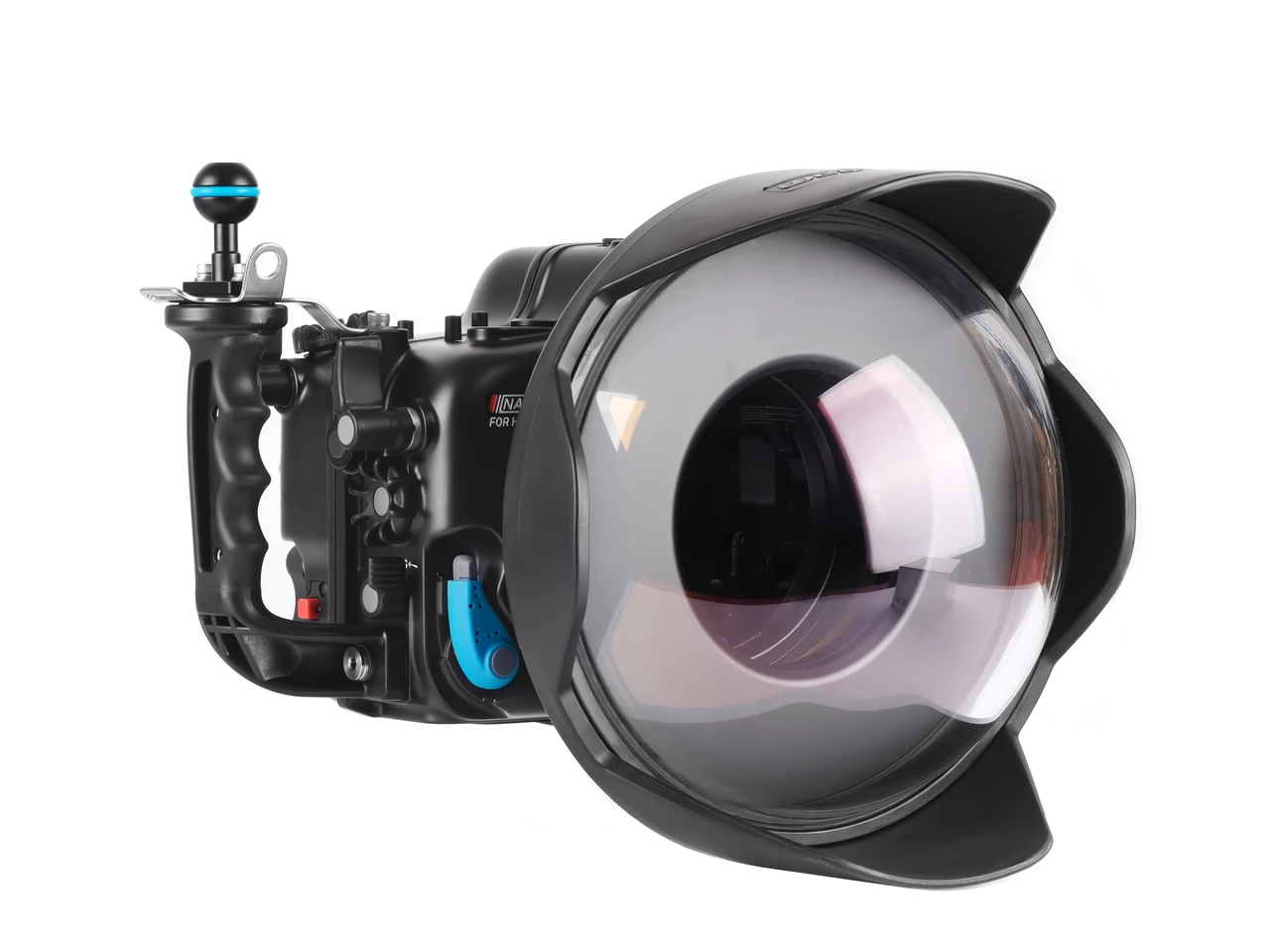

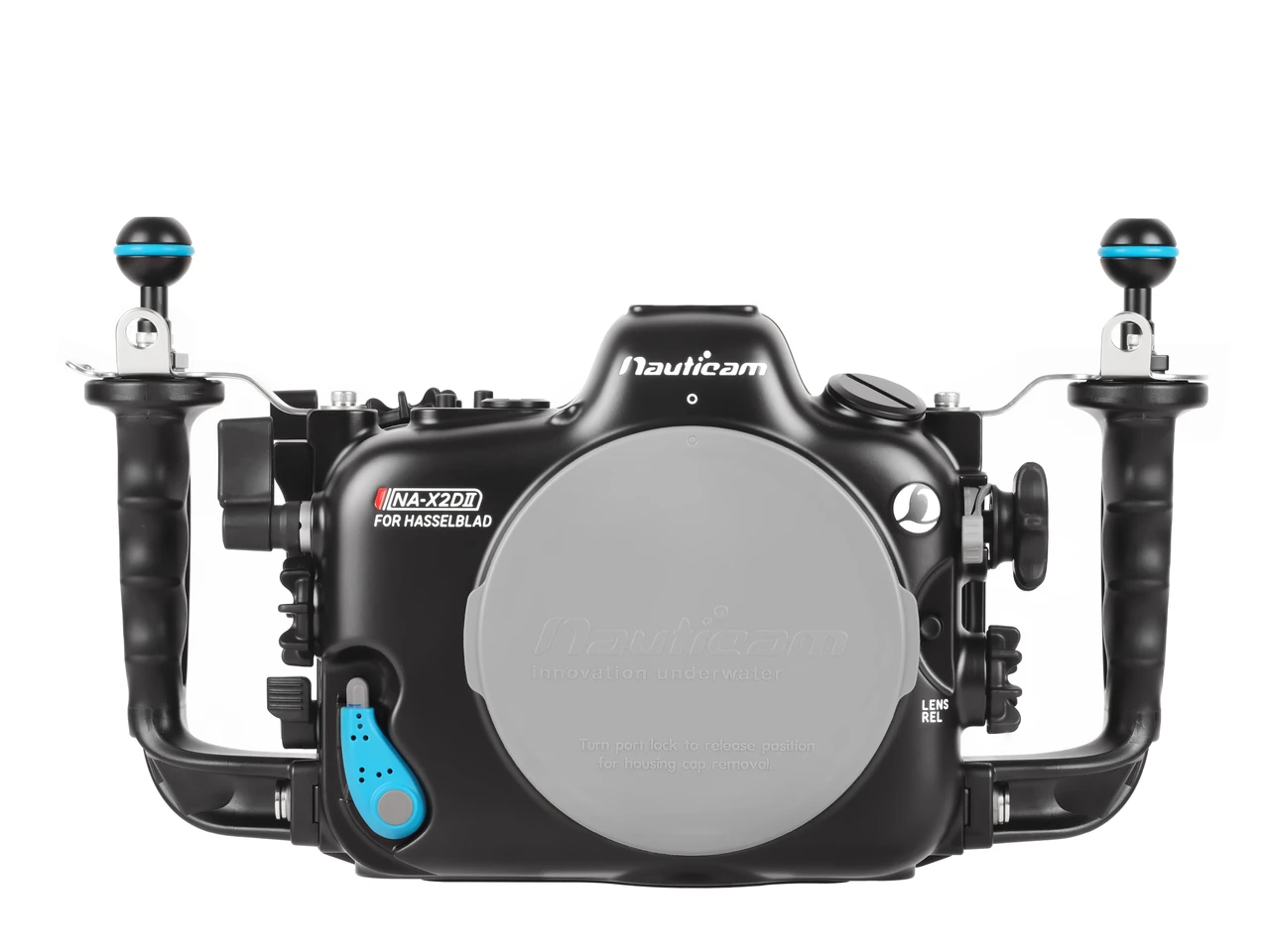

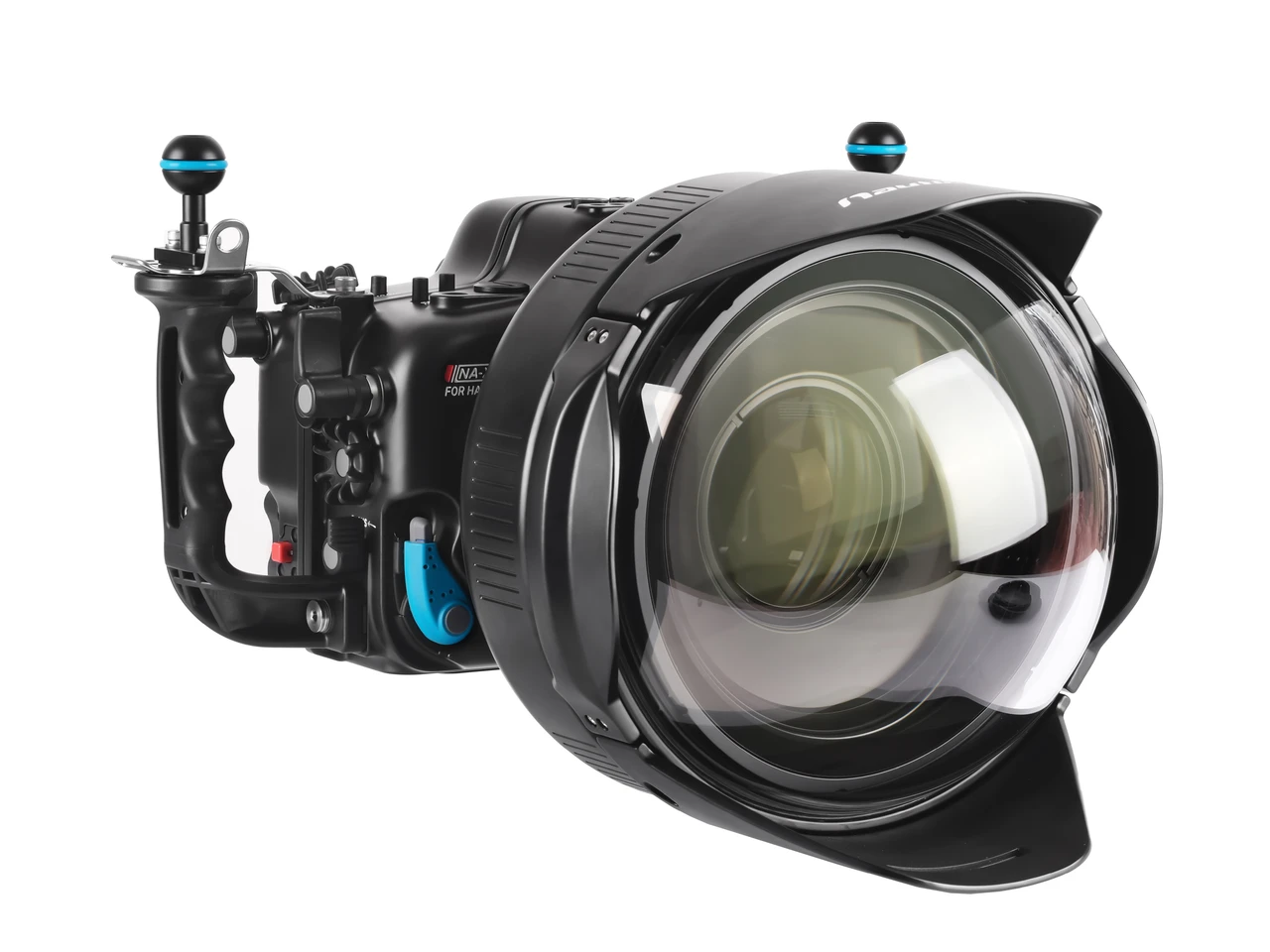

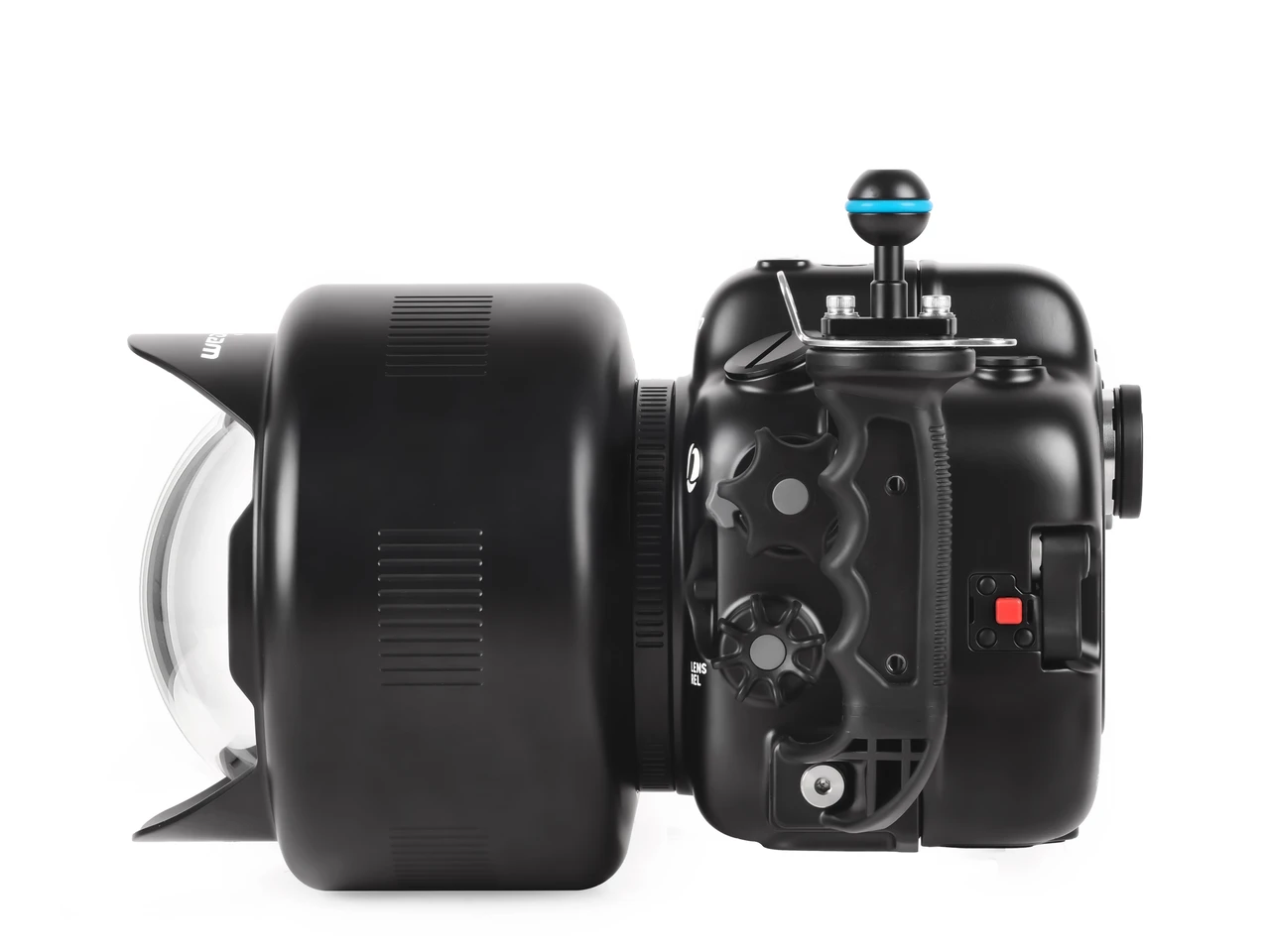

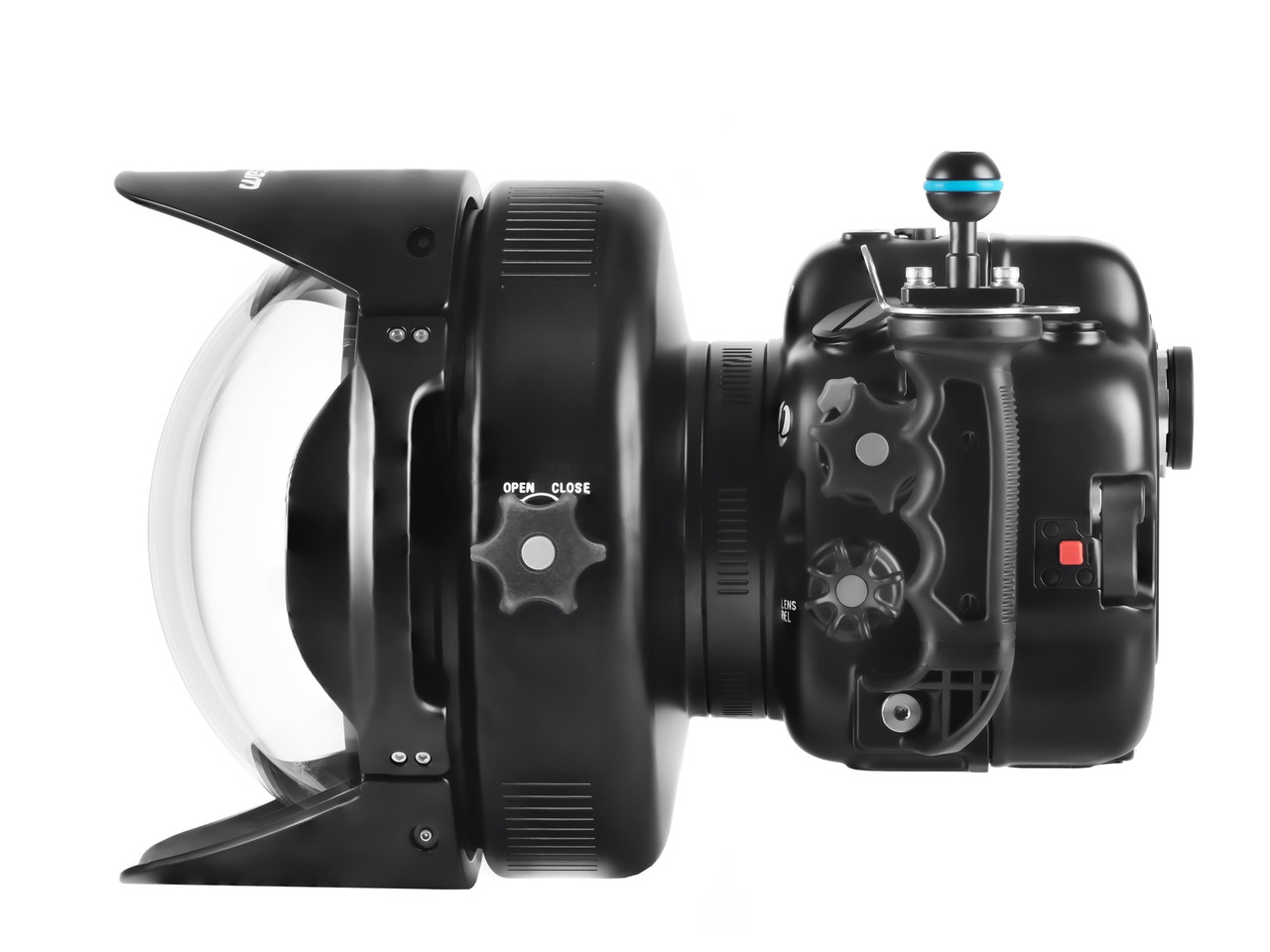

Nauticam NA-X2DII for Hasselblad X2DII 100C Camera #17103
17103 NA-X2DII for Hasselblad X2DII 100C Camera
Specification:
Dimensions (housing only): 362mm (W) × 210mm (H) × 147mm (D)
Weight in air: 3.27 KG
Buoyance in water: +175g (includes camera and battery)
Depth Rating:100m
Accessories ports: Front M24 x 1 and M16 x 1, rear M16 x 1
Handles and stabilizing brackets: Pre-installed
HDMI support: Not Support
Compatible Cameras: Hasselblad X2DII 100C
Port System: N120 Hasselblad X2DII Mount
Compatible lenses: XCD Lenses with Gear System (PN: 19860 ~ 19867)
What’s in the box:
- NA-X2DII Housing
- Housing Cap
- 2x Handles with mounting balls and 2x handle brackets
- Panasonic CR-2032 Battery (pre-installed for moisture alarm)
- Spare main O-ring, O-ring remover and lubricant
- Set of Allen Keys
- Padded housing bag and shoulder strap
Main Features:
- N120 Auto Lock Port System II (International Patent Pending), DSLR Housing Lock
- Lens control system: Zoom/focus control knob, and a dedicated dial for Control Ring on lenses (XCD 35-100E,25V/38V/55V/90V)
- Front & Rear Scroll Wheel are fully supported (incl. custom clickable)
- Front Custom Button can be accessed by the lever on the front right.
- AF-ON Pad on the rear right side
- Moisture alarm and leak detector system
Mounting points:
- Front top: 4x 1/4-20 UNC (for 17959 mounting ball), 1x M10 thread hole

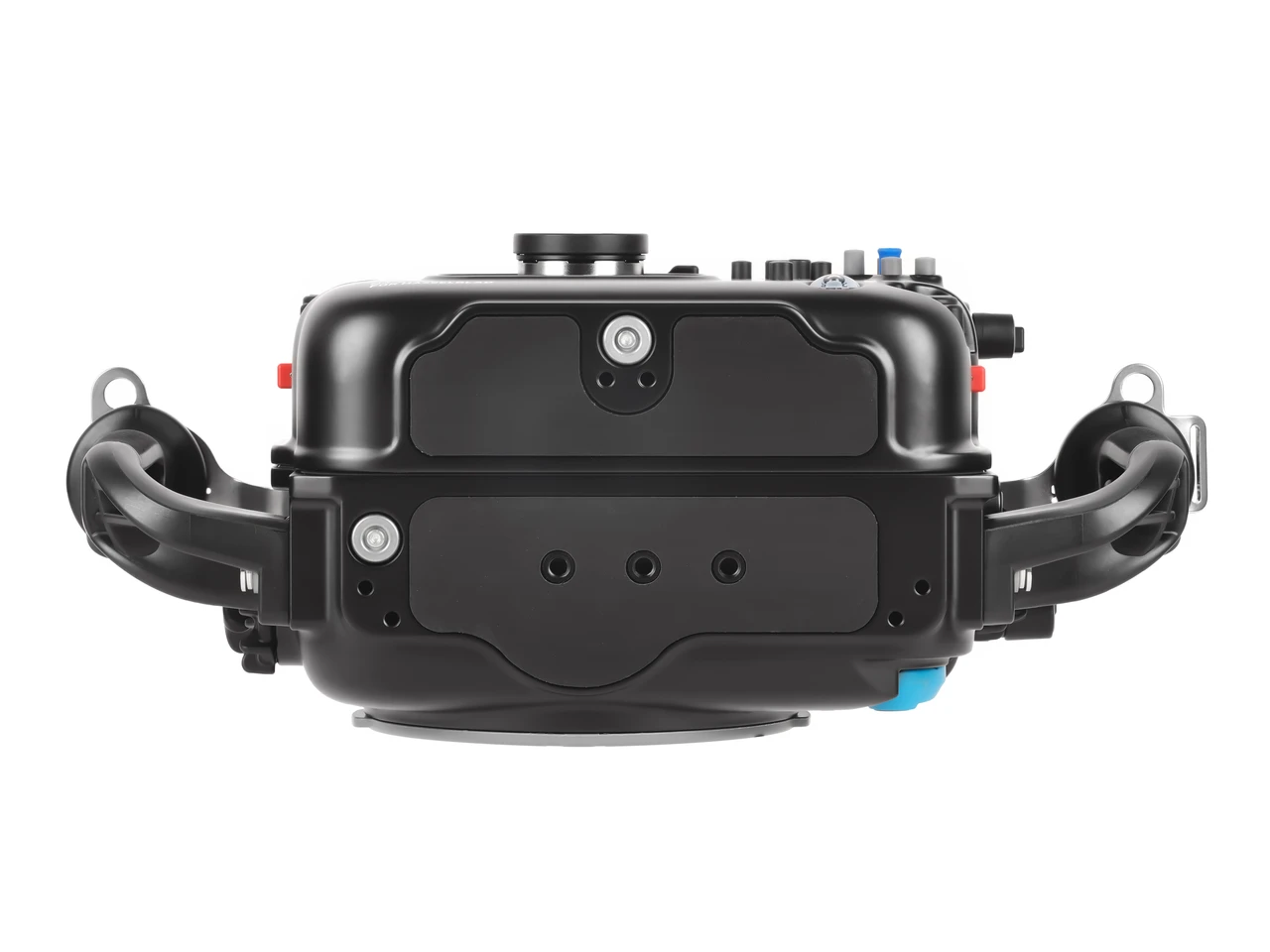

- Bottom: 3x 1/4-20 UNC (for tripod plate or skids), 6xM5 mounting points
(#25218 mounting ball set)
Main O-rings:
90121 Housing O-ring (I.D.=204mm, C.S.=4.0mm)
XCD Mount Gear System
19860 XCD35100-Z Zoom Gear for XCD 2.8-4/35-100E
19861 XCD35100-C Control Ring for XCD 2.8-4/35-100E
19863 XCD2035-Z Zoom Gear for XCD 3.2-4.5/20-35E
19865 XCD25-C Control Ring for XCD 2.5/25V/90V
19866 XCD38-C Control Ring for XCD 2.5/38V/55V
19867 XCD120-F for XCD 3.5/120mm MACRO (TBA)
Flash Triggering:
Optical Trigger
26330 Flash Trigger for Hasselblad (NA-X2DII) *Manual version
*26216 Universal Optical Fiber Cable is required.
Electrical Triggering
25013 M14 Nikonos 5-pin bulkhead with hotshoe connection
25021 Nikon hotshoe plug to M14 Ikelite style bulkhead (x and ground connection only)
*26326 M24-M16 Adaptor for use with 26325 is required.
Recommended Accessories:
Housing Mount
17959 Housing Mounting Ball with 1/4'' Screws
25221 M10 strobe mounting ball for housing
25224 M10 strobe mounting ball for housing (with hole for using with lanyard)
25218 Mounting Ball Set for Tripod
25228 M5 strobe mounting ball for housing
Vacuum Valve
25625 M16 Vacuum Valve II (Pushbutton Release)
Lanyard
25413 27cm lanyard with 2 snap hooks
Viewfinder
32212 Nauticam Full Frame Straight Viewfinder 40°/ 0.8:1
32214 Nauticam Full Frame Angle Viewinder 40°/ 0.8:1
Surface USB-PD Power bank
26325 USB-C Bulkhead with USB-C Connector
26326 M24-M16 Adaptor for use with 26325(not necessary)
Wet Lenses:
Macro
81501 Mid-range Focus Optimizer 1
81202 Super Macro Convertor 2 (4x Magnification) (TBA)
81203 Super Macro Convertor 3 (2.3x Magnification) (TBA)
81503Mid-range Focus Optimizer 3 (TBA)
Wide Angle
85204 Wide Angle Conversion Port - 2 (WACP-2) 140 Deg. FOV with Compatible 14mm Lenes (incl. float collar)
85206 N120/N100 0.36x Wide Angle Conversion Port with Integrated Float Collar and
Interchangeable Port Mounting Ring - (WACP-1B)
Optional Accessories for using with Wet Lenses:
25101 M67 flip diopter holder for M67 macro ports
25108 M67 Double Flip Holder for M67 Macro Ports
83250 M67 to Bayonet Converter II
83251 M77 to Bayonet Converter II
83214 Bayonet Mount Adaptor for SMC/CMC
86221 M67 Flip holder for MWL-1
86222 Double Flip Holder for MWL-1
87501 Flip Holder for EMWL
87512 Shade for 130° Objective Lens
87513 Shade for 100° Objective Lens
87516 EMWL Bayonet Holder for Ø70 Float Arm
87517 EMWL Bayonet Holder for Ø90 Float Arm
87518 Strobe Mounting Brackets for EMWL Relay Lens
Buoyancy Recommendation for Housing Setups: (depending on port and lens choices)
72261 Ø70x200mm Carbon Fibre Aluminium Float Arm (Buoyancy 370g)
72262 Ø70x250mm Carbon Fibre Aluminium Float Arm(Buoyancy 520g)
72263 Ø70x300mm Carbon Fibre Aluminium Float Arm (Buoyancy 670g)
72264 Ø90x170mm Carbon Fibre Aluminium Float Arm (Buoyancy 450g)
72265 Ø90x220mmCarbon Fibre Aluminium Float Arm (Buoyancy 720g)
72266 Ø50x200mm Carbon Fibre Aluminium Float Arm (Buoyancy 160g)
72267 Ø50x250mm Carbon Fibre Aluminium Float Arm (Buoyancy 240g)
72268 Ø50x300mm Carbon Fibre Aluminium Float Arm (Buoyancy 320g)
72233 Single Bayonet Holder II for Ø70 Float Arm
72234 Double Bayonet Holder II for Ø70 Float Arm
72243 Single Bayonet Holder II for Ø90 Float Arm
72244 Double Bayonet Holder II for Ø90 Float Arm
83252 Bayonet Holder for Arms
83253 Double Bayonet Holder for Arms
83254 Bayonet Lens Holder for Inon Float Arms
87516 EMWL Bayonet Holder for Ø70 Float Arm
87517 EMWL Bayonet Holder for Ø90 Float Arm
